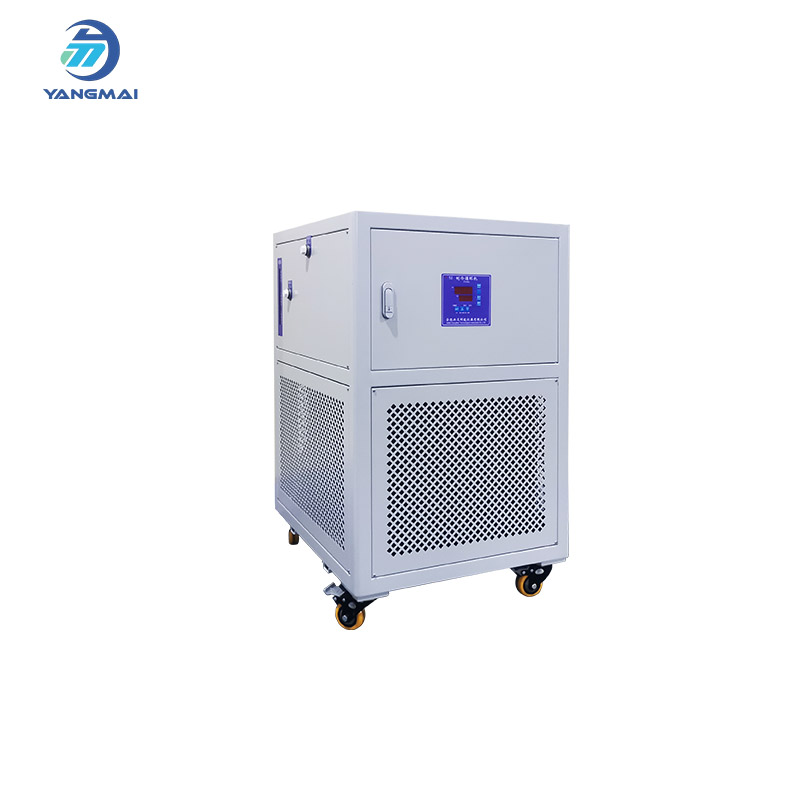

100L Cooling Circulator Chiller Refrigerator Ideal for Glass Reactor Temperature Control

100L Chiller delivers reliable cooling performance for precise chemical reactions. Ideal for laboratory setups, it ensures temperature stability down to -105℃.

Feature:

Wide temperature range: -105℃~RT (Lower temperatures can be customized).

Sealed Design Prevents Fluid Loss and Contamination

Reliable Cooling with Imported Compressor Technology

Multiple Safety Alarms Ensure System Protection

Accept customized design

Product Parameters
  • Model :

    YMD-100
  • Order(MOQ) :

    1 Set
  • Lead Time :

    10~15 working days
  • OEM :

    Accepted
  • Power Supply :

    AC380V-50HZ

200L high and low temperature circulator

The 100L Chiller by Hefei Yangmai Technology Instrument Co., Ltd is Engineered for demanding low-temperature applications, this fully sealed recirculating chiller provides efficient, stable cooling for glass reactors and other lab equipment. With a compact footprint, eco-friendly refrigerant system, and intelligent control interface, it offers safe, consistent performance for continuous operation in chemical, pharmaceutical, and research environments.

Model YMD-10/20 YMD-50 YMD-100 YMD-150 YMD-200
Medium temperature range -30℃-RT
Setting&display Button input, LED display
Tem accuracy ±0.5℃
Control Mode Intelligent PID
Cooling capacity -25℃ 1.5KW 2KW 3KW 3.5KW 4KW

Pump flow

40L/min 56L/min
Pump pressure 0.8bar 0.5-1.5bar
Compressor
                      Emerson Copeland/Taikang/Danfoss
Evaporator
Plate heat exchanger
Expansion Valve
Danfoss
Safety protection Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc.
Liquid inlet and liquid outlet DN20 DN25
Refrigerator R404A、R23
Dimention(CM) 65*75*136 65*75*140 65*75*150 (water cooling) 65*75*166(water cooling)
Shell material Cold rolled plate spraying
Pipe material SUS304
Power supply AC220V/50HZ AC380V/50HZ
Weight(KG) 220 220 260 260 300
Optional Temperature range:-105℃~RT
Optional Shell material:SUS304
Optional With water cooling
Optional
10 inch touch screen



Industrial heating circulation system



Advantage of glass reactor

1.Ultra-Wide Temperature Range

Supports cooling from ambient temperature down to -105℃ for demanding low-temperature applications.

2.Data Logging & Export

Records temperature curves, historical data, and alarm logs; supports USB export for convenient data backup.

3.Eco-Friendly Refrigerants

Utilizes environmentally friendly refrigerants to reduce environmental impact.

4.High-Quality Compressors

Features imported compressors from top brands such as Copeland, Taikang, and Danfoss for consistent and reliable performance.

5.Multi-Stage Cascade Technology

Implements advanced multi-level cascade cooling for efficient ultra-low temperature control.

6.Comprehensive Safety Protection

Includes self-diagnosis, high-pressure exhaust alarm, thermal overload, low-level detection, and phase failure protection.

7.Uniform Heat Transfer Medium Control

Maintains the same thermal fluid during both heating and cooling processes to ensure system integrity and efficiency.

8.High-Lift Pump Design

Built for long-distance transport of heat transfer fluid in complex lab setups.

Heater Chiller Vacuum Pump Glass Reactor

Lab-scale chemical reactor

Fast Cooling Lab Equipment

Package of glass reactor

Modular reactor assembly



RFQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4.  Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
