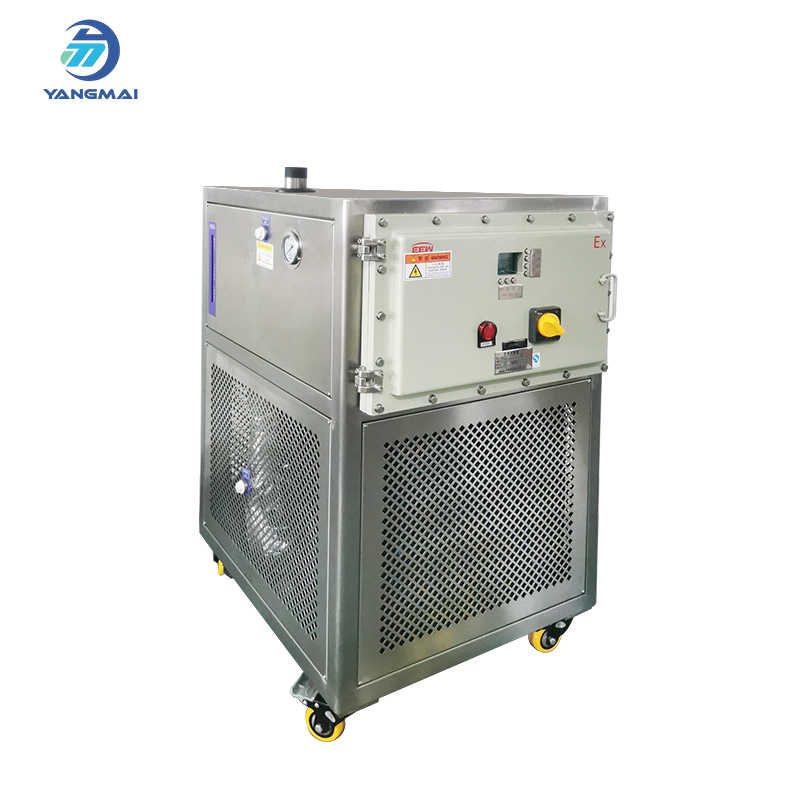

The 50L stainless steel high and low temperature integrated circulator offers precise temperature control from -30℃ to 200℃. Ideal for chemical synthesis, pilot plant operations, and pharmaceutical labs, it ensures high safety, efficient heat transfer, and long-term reliability under extreme conditions.
Feature:
Wide temperature range: -30℃~200℃
Explosion-proof design
Independent circulation system
High-precision PID temperature control
Accept customized design
Model :
YMGD-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V/50HZ
The 50L high and low temperature integrated machine by Hefei Yangmai Technology Instrument Co., Ltd provides a wide temperature range with precise control. Designed for chemical and pharmaceutical processes, it ensures safe and efficient thermal regulation in hazardous environments.
| Model | YMGD-5EX | YMGD-20EX | YMGD-50EX | YMGD-100EX | YMGD-150EX | YMGD-200EX | YMGD-500EX | YMGD-2000EX |
| Tem range | -25-180℃ | -30-200℃ | ||||||
| Setting&display | Button input, LED display | |||||||
| Tem accuracy | ±0.5℃ | |||||||
| Control Mode | Intelligent PID | |||||||
| Heating Power | 2.4KW | 3.5KW | 5KW | 7.5KW | 9KW | 12KW | 40KW | 70KW |
|
Pump flow |
20L/min | 40L/min | 56L/min | |||||
| Pump pressure | 0.4bar | 0.8bar | 0.5-1.5bar | |||||
| Compressor | Embraco | Emerson Copeland | ||||||
| Evaporator | Plate heat exchanger | |||||||
| Expansion valve | Danfoss | |||||||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||||
| Refrigerant | R404A eco-friendly refrigerant | |||||||
| Shell material | Cold rolled plate spraying | |||||||
| Pipe material | SUS304 | |||||||
| Power supply | 220V/50HZ | 380V/50HZ | ||||||
| Weight(KG) | 80 | 150 | 160 | 180 | 210 | 230 | 580 | 900 |
| Dimention(CM) | 50*56*83 | 62*72*102 | 65*75*107 | 65*75*136 | 65*75*136 | 65*75*136 | 90*130*160 | 130*170*190 |
| Optional | Temperature range:-105~300℃ | |||||||
| Optional | Shell material:SUS304 | |||||||
| Optional | Tecumseh, Danfoss compressor | |||||||
| Optional | Optional explosion-proof models | |||||||
1.Wide Temperature Range
Combines both heating and cooling functions, with a standard range of -30℃ to 200℃ (customizable for wider ranges).
2.Dual Temperature Display

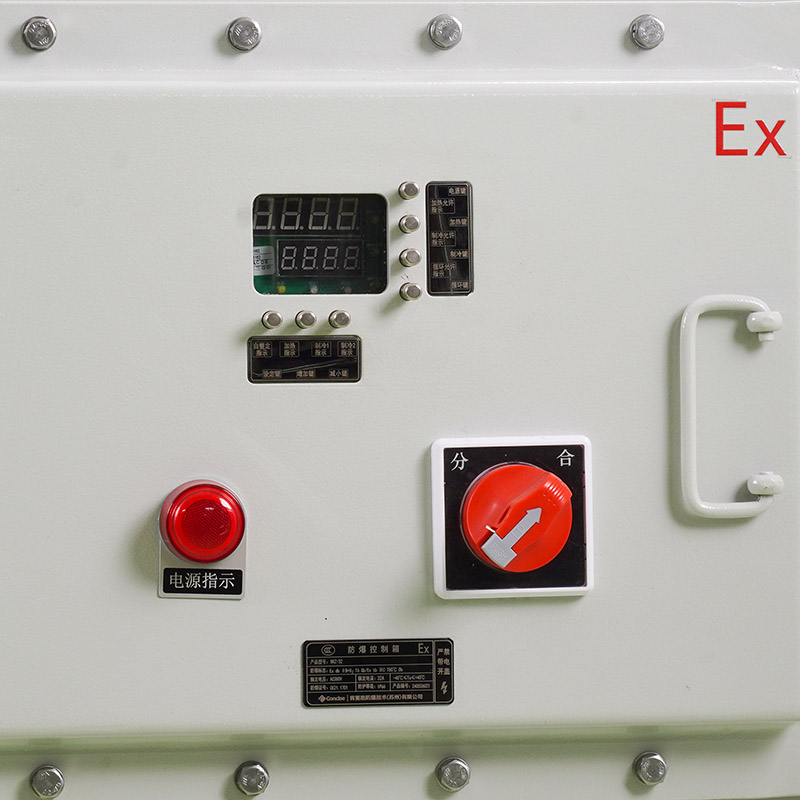

Equipped with two LED controllers to show both setpoint and real-time temperatures.
3.High Efficiency and Easy Operation
Quick heating/cooling performance with simple liquid filling.
4.Continuous Temperature Control
Enables seamless control from 200℃ down to -30℃, ensuring fast cooling even at high temperatures.
5.Fully Enclosed Circulation System
No oil mist or moisture absorption, enhancing experiment safety and thermal fluid lifespan.
6.Stable Performance
Uses American Copeland compressors for reliable, long-term operation.
7.Multiple Safety Protections
Built-in relays, thermal protection, and other safeguards for secure operation.
8.Consistent Heat Transfer Medium Control
Maintains a single heat transfer medium throughout the entire heating process.
9.High-Lift Design
Supports long-distance thermal fluid transfer, suitable for a wide range of laboratory setups.
