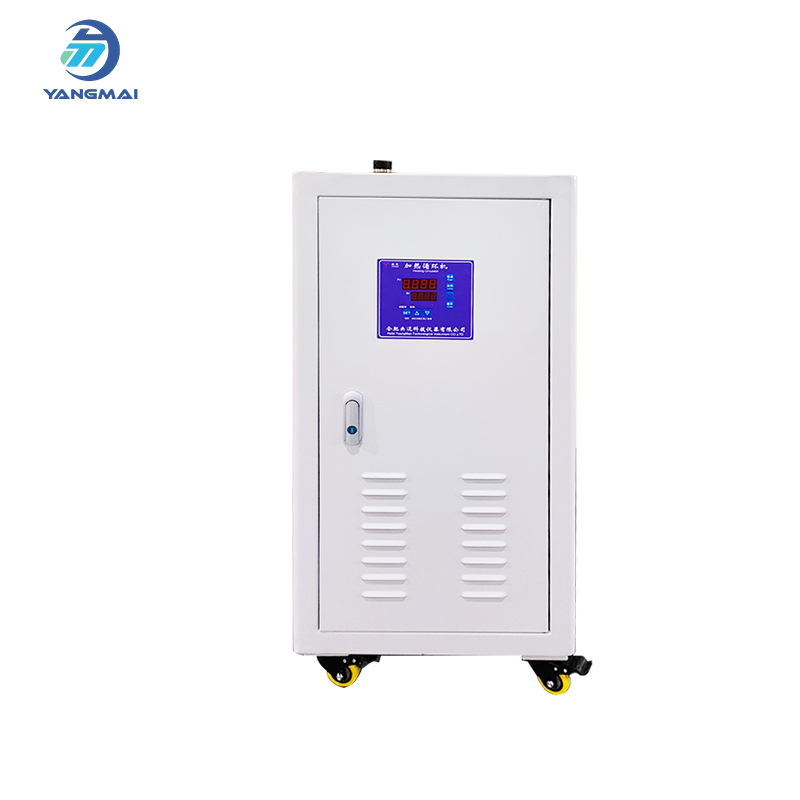

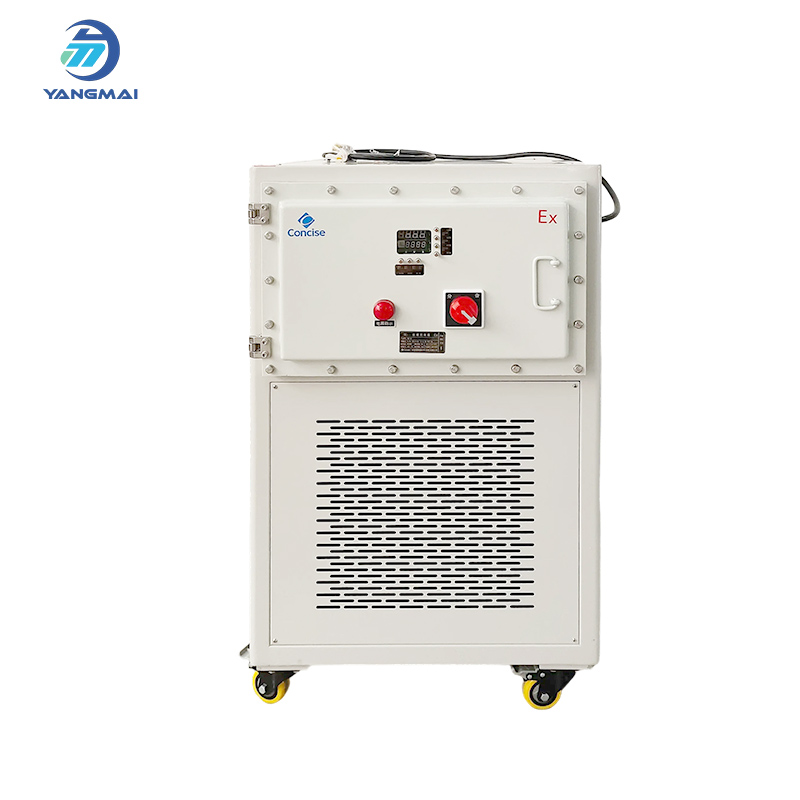

200L high and low temperature integrated machine is designed for efficient thermal regulation in chemical processes. It ensures reliable temperature stability and safety in continuous laboratory and pilot plant applications.
Feature:
Wide temperature range: -30℃~200℃
High-precision PID temperature control
Shell material:Cold rolled sheet sprayed
Accept customized design
Model :
YMGD-200Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V/50HZ

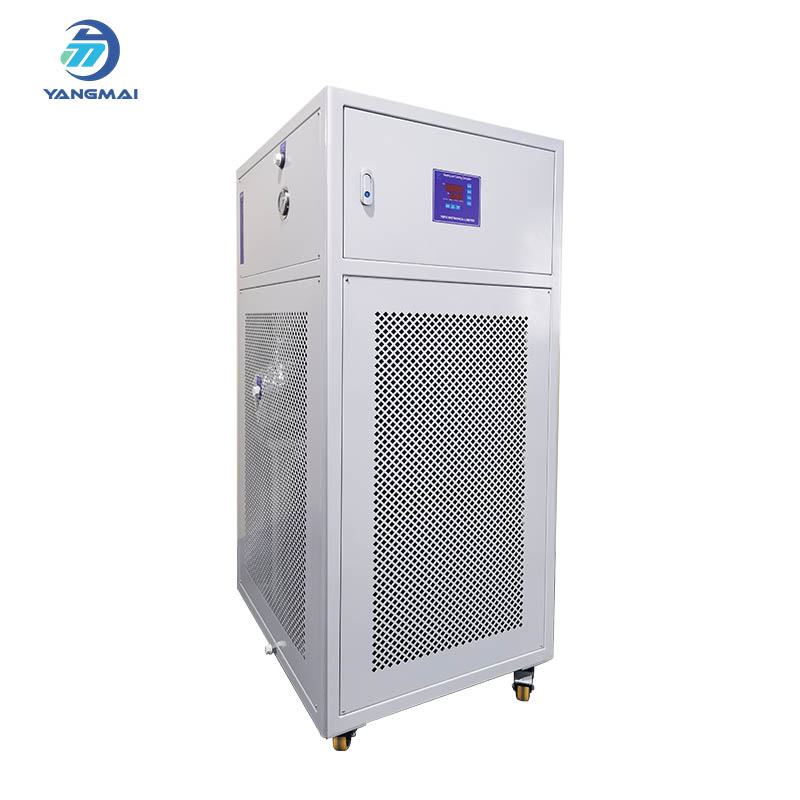

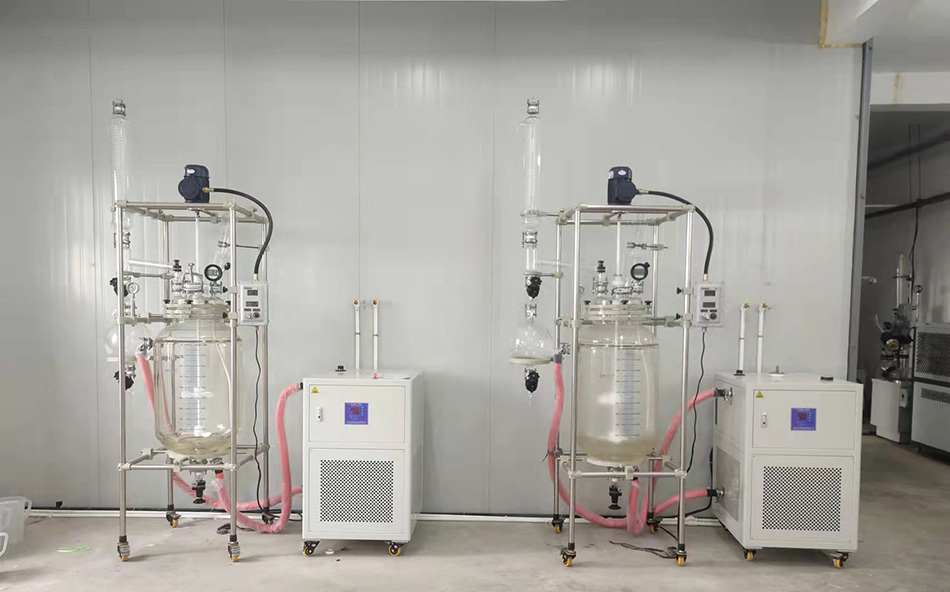

The 200L High and Low Temperature Integrated Machine by Hefei Yangmai Technology Instrument Co., Ltd is combining heating, refrigeration, and circulation. It is designed for precise temperature regulation in reactors, fermenters, distillation columns, and other chemical or pharmaceutical equipment.
|
Model |
YMGD-5 | YMGD-20 | YMGD-50 |
YMGD-100 |
YMGD-150 |
YMGD-200 | YMGD-500 | YMGD-2000 |
| Tem range | -25-180℃ | -30-200℃ | ||||||
| Setting&display | Button input, LED display | |||||||
| Tem accuracy | ±0.5℃ | |||||||
| Control Mode | Intelligent PID | |||||||
| Heating Power | 2.4KW | 3.5KW | 5KW | 7.5KW | 9KW | 12KW | 40KW | 70KW |
|
Pump flow |
20L/min | 40L/min | 56L/min | |||||
| Pump pressure | 0.4bar | 0.8bar | 0.5-1.5bar | |||||
| Compressor | Embraco | Emerson Copeland | ||||||
| Evaporator | Plate heat exchanger | |||||||
| Expansion valve | Danfoss | |||||||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||||
| Refrigerant | R404A eco-friendly refrigerant | |||||||
| Shell material | Cold rolled plate spraying | |||||||
| Pipe material | SUS304 | |||||||
| Power supply | 220V/50HZ | 380V/50HZ | ||||||
| Weight(KG) | 80 | 150 | 160 | 180 | 210 | 230 | 580 | 900 |
| Dimention(CM) | 50*56*83 | 62*72*102 | 65*75*107 | 65*75*136 | 65*75*136 | 65*75*136 | 90*130*160 | 130*170*190 |
| Optional | Temperature range:-105~300℃ | |||||||
| Optional | Shell material:SUS304 | |||||||
| Optional | Tecumseh, Danfoss compressor | |||||||
| Optional | Optional explosion-proof models | |||||||
1.Wide Temperature Range
Capable of both heating and cooling from -30°C to +200°C, suitable for complex chemical reactions.
2.High Volume Capacity
200L circulation volume meets industrial-scale applications for reactors and tanks.

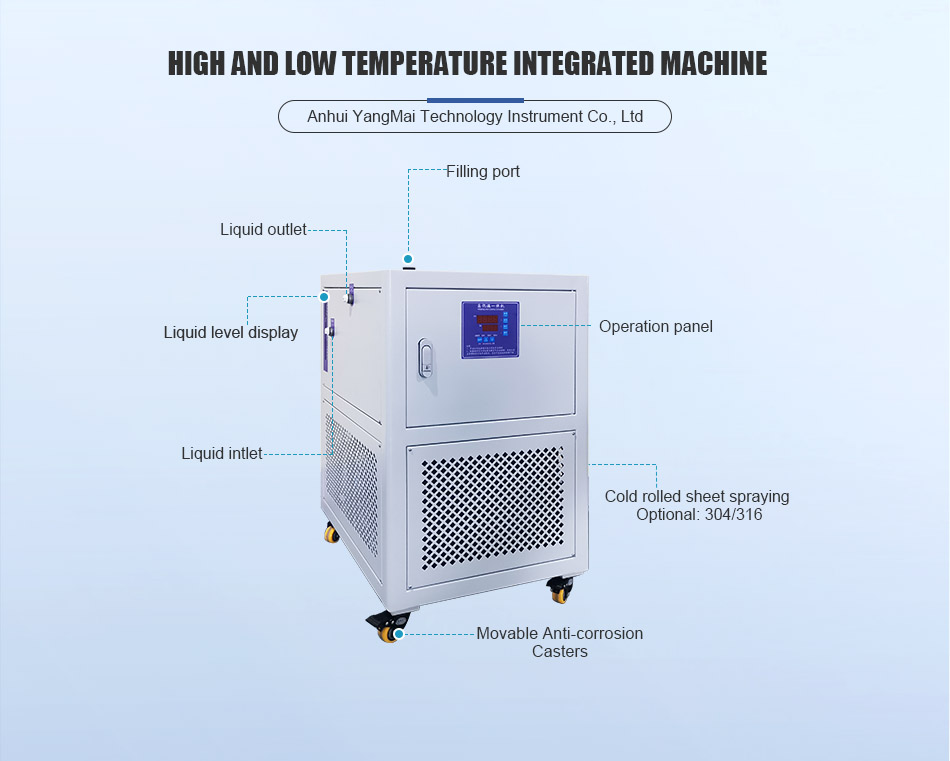

3.Integrated Design
Combines heating, cooling, and circulation in one compact unit, reducing footprint and maintenance.
4.Precise Temperature Control
Advanced PID controller with high accuracy for sensitive processes like synthesis and crystallization.
5.Fully enclosed processing for circulation management
No oil mist and water absorption, ensuring the safety of the experiment and the life of the thermal fluid.
6.High lift design
Meet the long-distance transportation of heat transfer medium.
