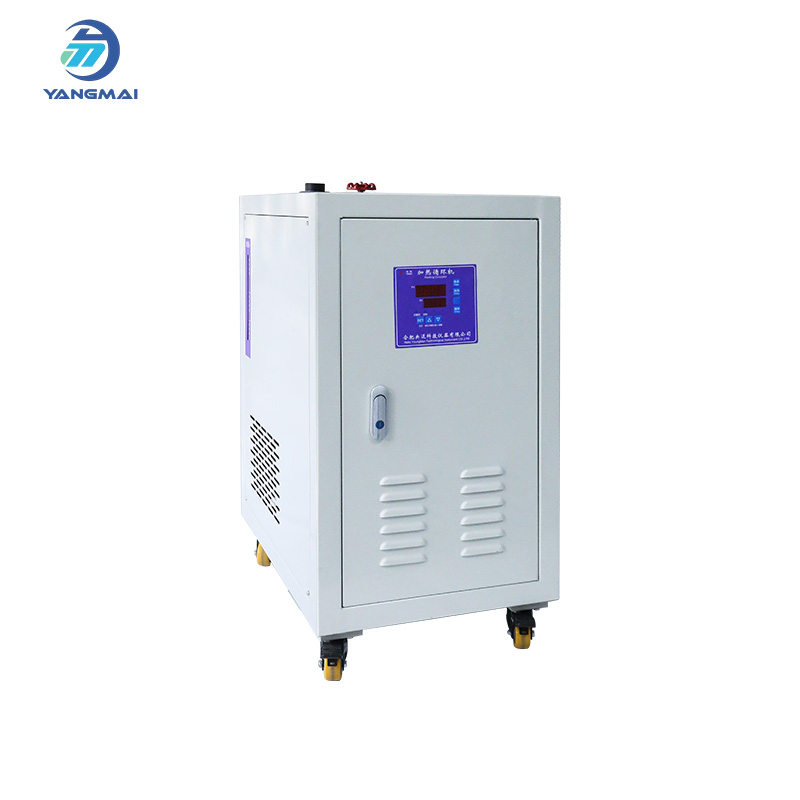

100L Heating Recirculating Machine is designed for efficient thermal regulation in chemical processes. It ensures reliable temperature stability and safety in continuous laboratory and chemical pilot plant applications.
Feature:
Wide temperature range: RT~200℃ (higher temperatures can be customized).
High-precision PID temperature control
Shell material:Cold rolled sheet sprayed
Continuous Temperature Control System
Accept customized design
Model :
YMG-100Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V-50HZ
The 100L Heating Recirculating Machine by Hefei Yangmai Technology Instrument Co., Ltd is tailored for chemical and pharmaceutical labs that require stable, closed-loop temperature management for glass reactors. With its sealed design, intelligent temperature control, and durable heating components, it ensures clean fluid operation and high thermal efficiency. The system supports a broad range of reaction conditions, maintaining fluid integrity while reducing operational risks.
| Model | YMG-5 | YMG-20 | YMG-50 | YMG-100 | YMG-150 | YMG-200 |
| Tem range |
Homoeothermy~180℃
|
Homoeothermy~200℃ | ||||
| Setting&display | Button input, LED display | |||||
| Tem accuracy | ±0.5℃ | |||||
| Control Mode | Intelligent PID | |||||
| Heating Power | 2.4KW | 3.5KW | 5KW | 7.5KW | 9KW | 12KW |
|
Pump flow |
20L/min | 40L/min | 56L/min | |||
| Pump pressure | 0.4bar | 0.8bar | 0.5-1.5bar | |||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||

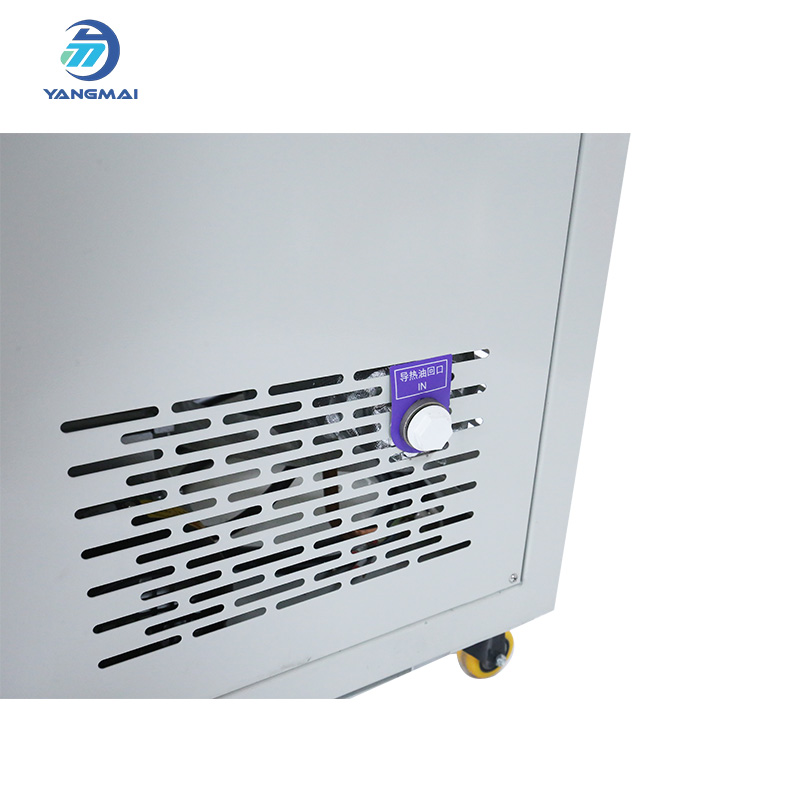

| Liquid inlet and liquid outlet | DN15 | DN20 | DN25 | |||
| Dimention(CM) | 30*51*65 | 42*59*80 | 55*65*92 | |||
| Shell material | Cold rolled plate spraying | |||||
| Pipe material | SUS304 | |||||
| Power supply | AC220V/50HZ | AC380V/50HZ | ||||
| Weight(KG) | 50 | 80 | 80 | 80 | 110 | 110 |
| Optional | Temperature range:Homoeothermy~300℃ | |||||
| Optional | Shell material:SUS304 | |||||
| Optional | With water cooling | |||||
1.Wide Operating Temperature Range
Supports temperatures fromto 200℃, with custom options available for higher limits.

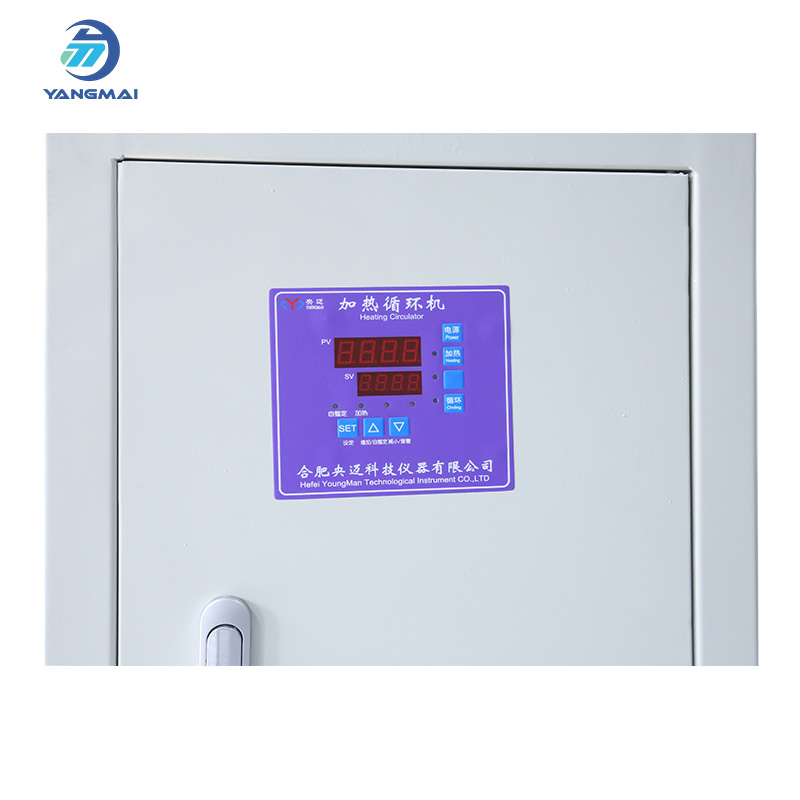

2.Dual LED Temperature Display
Features two LED screens showing both setpoint and real-time temperature simultaneously.
3.Fast and Efficient Operation
Enables quick heating with simple fluid filling and minimal setup time.
4.Continuous Heating Control
Provides stable, uninterrupted temperature control from ambient to 200℃.
5.Closed Circulation System
Fully sealed loop prevents oil mist and moisture absorption, ensuring thermal fluid longevity and lab safety.
6.Reliable Heating Performance
Equipped with a high-quality American Copeland compressor for stable, long-term operation.
7.Multi-Level Safety Protection
Includes relay systems, overheat protection, and thermal cutoff features for enhanced safety.
8.Unified Heat Transfer Medium
Maintains a consistent fluid medium throughout the entire heating cycle to improve efficiency.
9.High-Lift Circulation Design
Supports extended-distance delivery of thermal fluid for larger or remote systems.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
