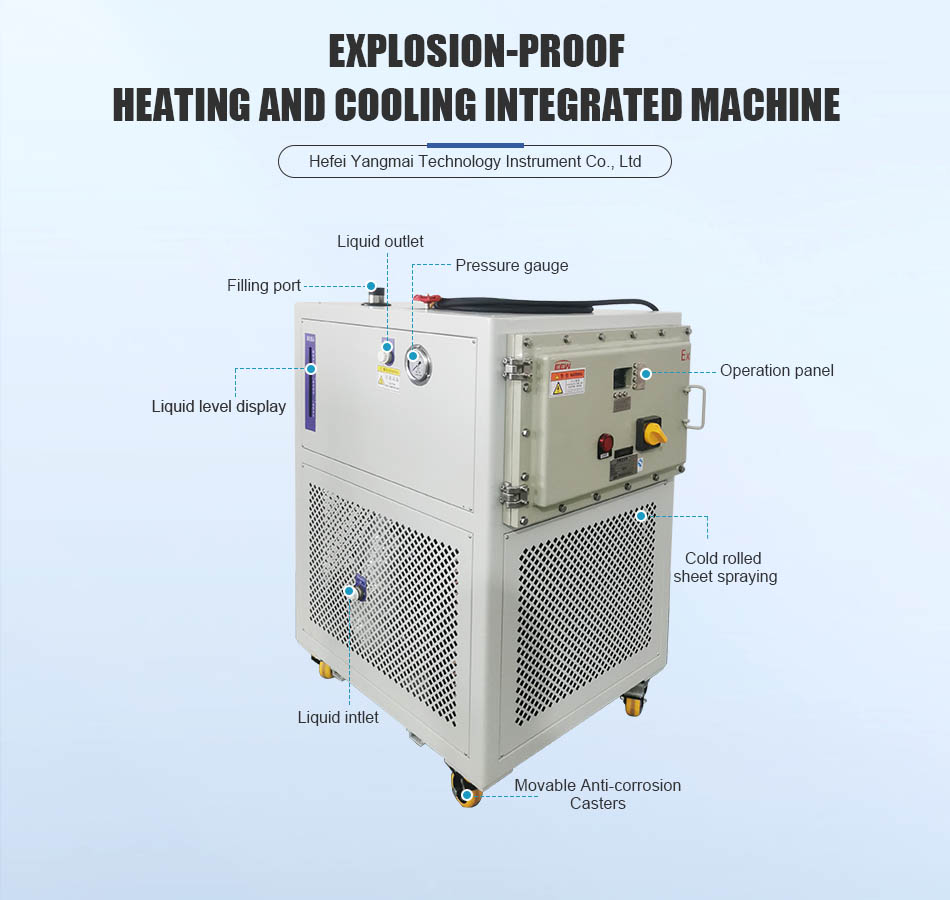

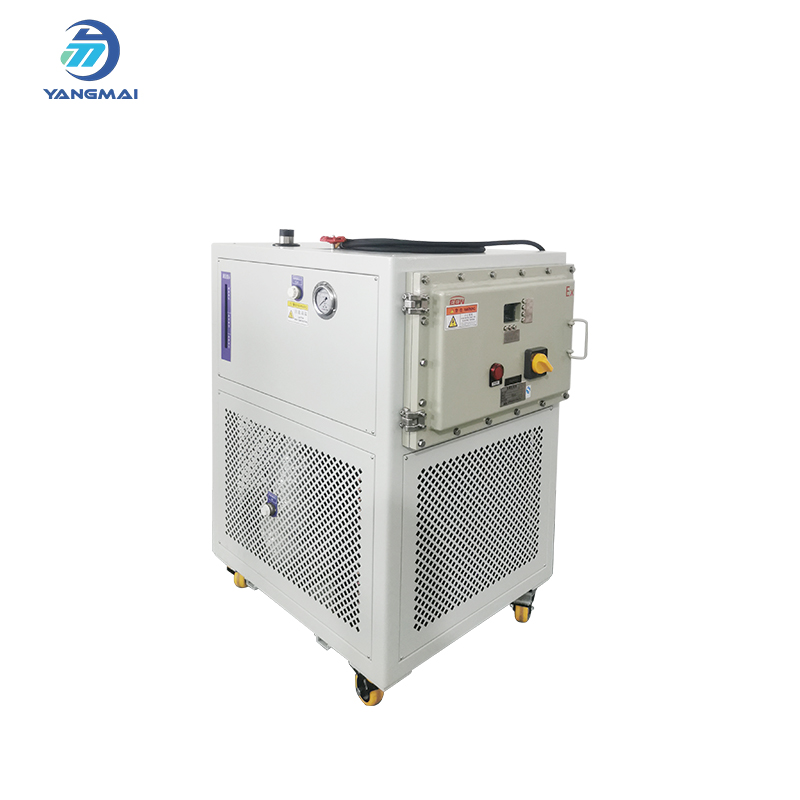

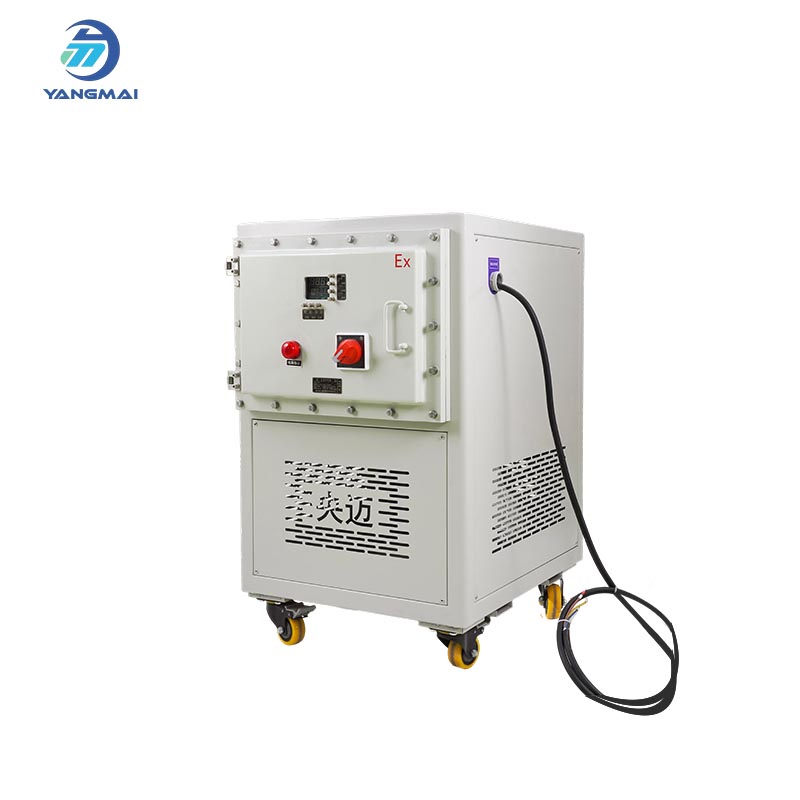

The 100L explosion-Proof Heating and Cooling Circulator is combining heating, refrigeration, and circulation. It is designed for precise temperature regulation in reactors, fermenters, distillation columns, and other chemical or pharmaceutical equipment.
Feature:
Wide temperature range: -30℃~200℃
Explosion-proof design for flammable environments
Independent circulation system
High-precision PID temperature control
Accept customized design
Model :
YMGD-100EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V/50HZ

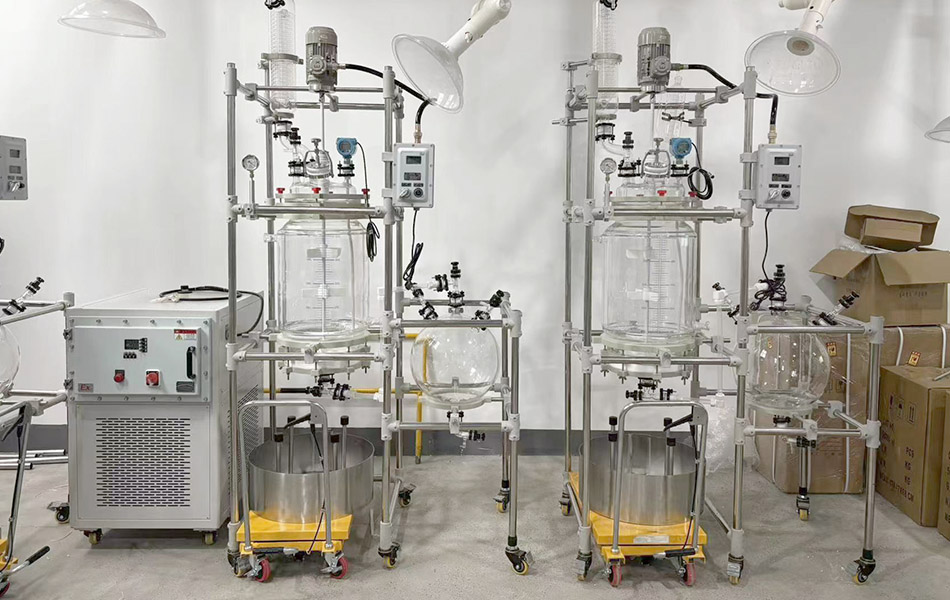

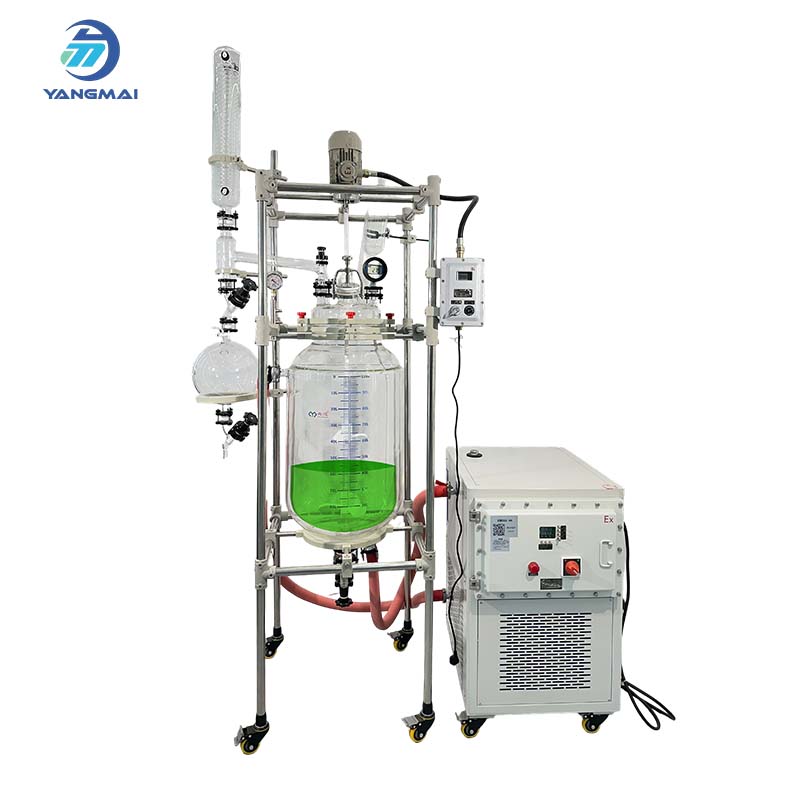

The 200L High and Low Temperature Integrated Machine by Hefei Yangmai Technology Instrument Co., Ltd is engineered for high-demand industrial and laboratory applications in chemical, pharmaceutical, and biotech fields. Integrating both heating and refrigeration functions, it offers precise temperature control ranging from -30°C to +200°C. Built with an explosion-proof electrical system, this unit is ideal for hazardous areas and is commonly used with glass reactors, tanks, and distillation systems for processes such as organic synthesis, crystallization, extraction, and polymerization.
|
Model |
YMGD-5EX | YMGD-20EX | YMGD-50EX |
YMGD-100EX |
YMGD-150EX |
YMGD-200EX | YMGD-500EX | YMGD-2000EX |
| Tem range | -25-180℃ | -30-200℃ | ||||||
| Setting&display | Button input, LED display | |||||||
| Tem accuracy | ±0.5℃ | |||||||
| Control Mode | Intelligent PID | |||||||
| Heating Power | 2.4KW | 3.5KW | 5KW | 7.5KW | 9KW | 12KW | 40KW | 70KW |
|
Pump flow |
20L/min | 40L/min | 56L/min | |||||
| Pump pressure | 0.4bar | 0.8bar | 0.5-1.5bar | |||||
| Compressor | Embraco | Emerson Copeland | ||||||
| Evaporator | Plate heat exchanger | |||||||
| Expansion valve | Danfoss | |||||||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||||
| Refrigerant | R404A eco-friendly refrigerant | |||||||
| Shell material | Cold rolled plate spraying | |||||||
| Pipe material | SUS304 | |||||||
| Power supply | 220V/50HZ | 380V/50HZ | ||||||
| Weight(KG) | 80 | 150 | 160 | 180 | 210 | 230 | 580 | 900 |
| Dimention(CM) | 50*56*83 | 62*72*102 | 65*75*107 | 65*75*136 | 65*75*136 | 65*75*136 | 90*130*160 | 130*170*190 |
| Optional | Temperature range:-105~300℃ | |||||||
| Optional | Shell material:SUS304 | |||||||
| Optional | Tecumseh, Danfoss compressor | |||||||
| Optional | Optional explosion-proof models | |||||||
1.Wide Temperature Range
Combines both heating and cooling functions, with a standard range of -30℃ to 200℃ (customizable for wider ranges).
2.Dual Temperature Display:

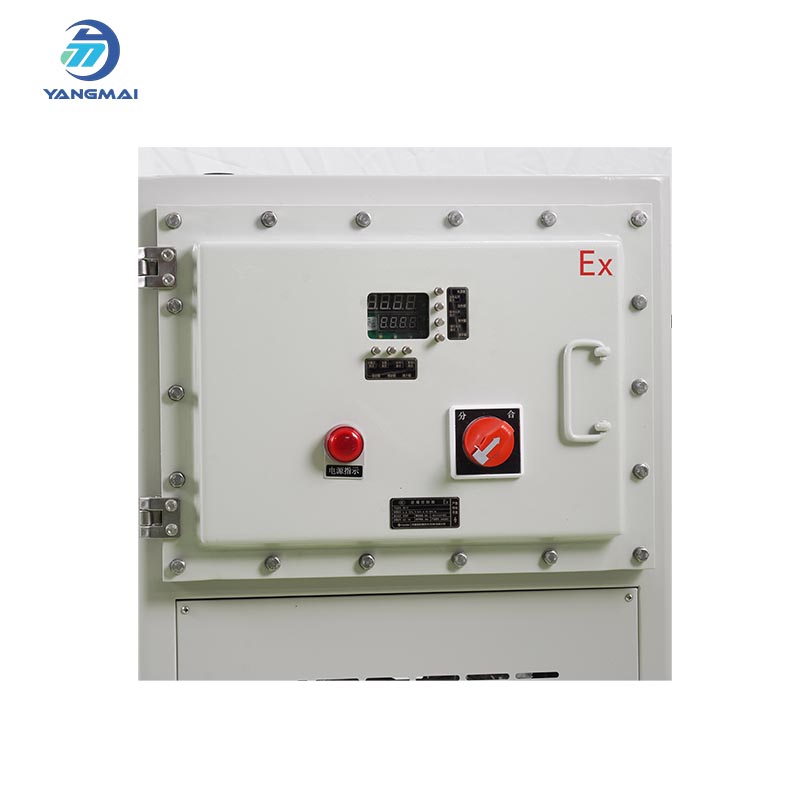

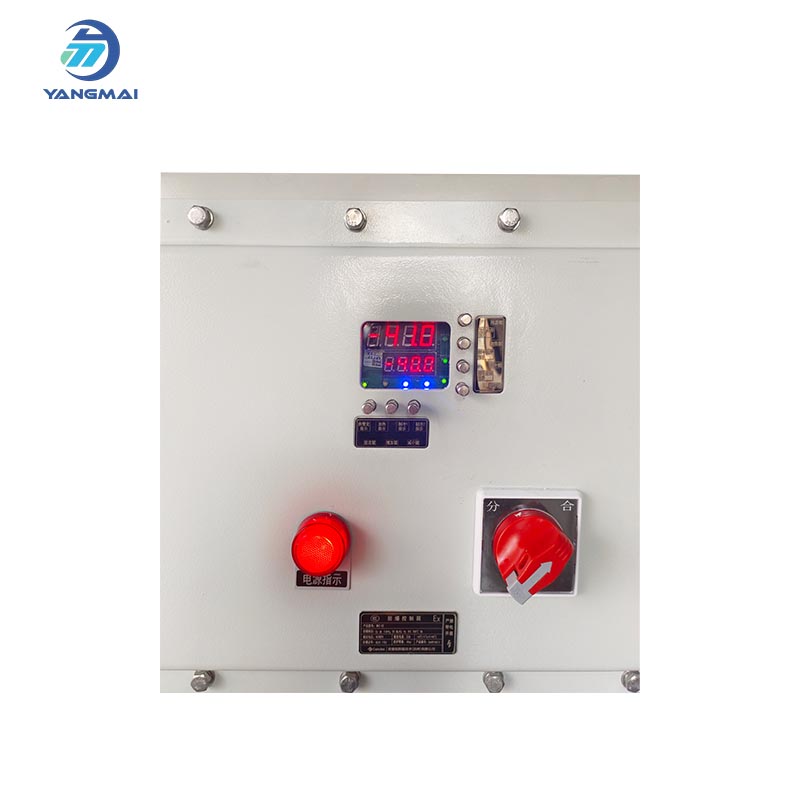

Equipped with two LED controllers to show both setpoint and real-time temperatures.
3.High Efficiency and Easy Operation
Quick heating/cooling performance with simple liquid filling.
4.Continuous Temperature Control
Enables seamless control from 200℃ down to -30℃, ensuring fast cooling even at high temperatures.
5.Fully Enclosed Circulation System
No oil mist or moisture absorption, enhancing experiment safety and thermal fluid lifespan.
6.Stable Performance
Uses American Copeland compressors for reliable, long-term operation.
7.Multiple Safety Protections
Built-in relays, thermal protection, and other safeguards for secure operation.
8.Consistent Heat Transfer Medium Control
Maintains a single heat transfer medium throughout the entire heating process.
9.High-Lift Design
Supports long-distance thermal fluid transfer, suitable for a wide range of laboratory setups.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
