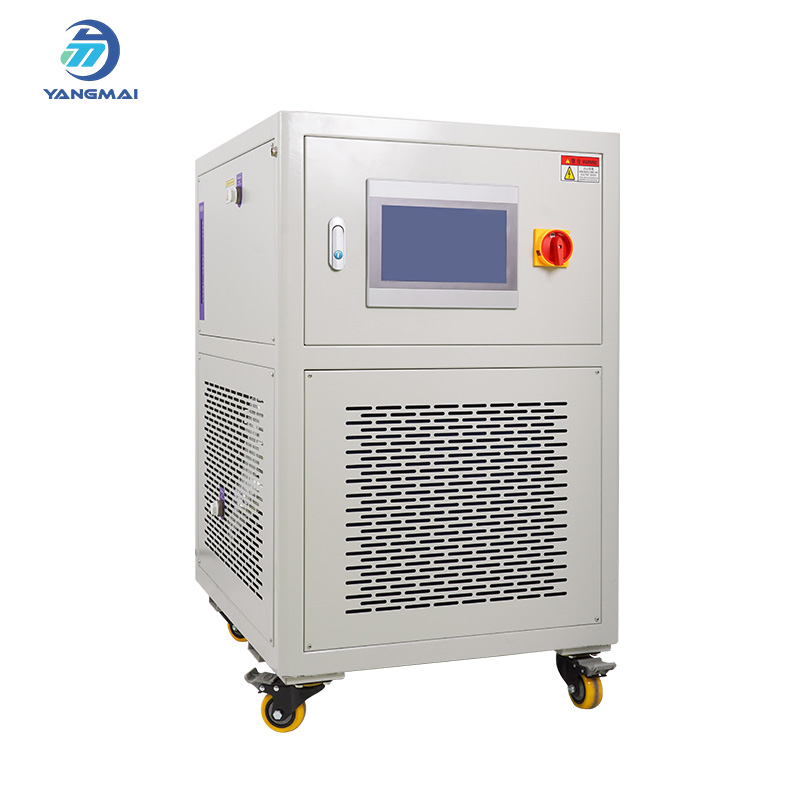

100L High and Low Temperature Cycle Electric Circulating Device with LED Screen

Name: 100L High and Low Temperature Cycle Electric Circulating Device with LED Screen
Availability: InStock

100L High and Low Temperature Cycle Electric Circulating Device features an intuitive LED touchscreen and dual heating-cooling capability. Perfect for precise chemical reactions with glass reactors in controlled lab environments.

Feature:

Wide Temperature Range: -30℃~200℃

Combines heating and cooling function

Precise Temperature Control

10 Inch Touch Screen

High-Efficiency Compressor

Comprehensive Safety Protections

Product Parameters

Model :
YMJGD-100
Order(MOQ) :
1 Set
Lead Time :
10~15 working days
OEM :
Accepted
Power Supply :
380V/50HZ

Product Details

Laboratory high and low temperature circulator

100L High and Low Temperature Cycle Electric Circulating Device by Hefei Yangmai Technology Instrument Co., Ltd is engineered for advanced chemical experimentation, integrating a responsive LED touchscreen for smart control and monitoring. With its wide thermal range, closed-loop system, and reactor-compatible design, it ensures accurate temperature modulation, enhanced safety, and operational stability for laboratories handling sensitive or hazardous materials.

Model	YMGD-5	YMGD-20	YMGD-50	YMGD-100	YMGD-150	YMGD-200	YMGD-500	YMGD-2000
Tem range	-25-180℃	-30-200℃
Setting&display	10 inch color touch screen
Tem accuracy	±0.5℃
Control Mode	Touch screen configuration PLC control
Communication Protocol	MODBUS RTU protocol RS485 communication interface
Temperature control options	Jacket temperature control
PLC Module	Siemens S7-200
Refrigeration system	Two-stage cascade refrigeration technology
Heating Power	2.4KW	3.5KW	5KW	7.5KW	9KW	12KW	40KW	70KW
Cooling capacity（-20℃)	3.5KW	4.5KW	6KW	7.5KW	9KW	12KW
Pump flow	20L/min	40L/min				56L/min
Pump pressure	0.4bar	0.8bar				0.5-1.5bar
Compressor	Embraco	Emerson Copeland
Evaporator	Plate heat exchanger
Expansion valve	Danfoss
Safety protection	Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc.
Refrigerant	R404A eco-friendly refrigerant
Shell material	Cold rolled plate spraying
Pipe material	SUS304
Power supply	220V/50HZ	380V/50HZ
Weight(KG)	80	150	160	180	210	230	580	900
Dimention(CM)	505683	6272102	6575107	6575136	6575136	6575136	90130160	130170190
Optional	Temperature range:-105~300℃
Optional	Shell material:SUS304
Optional	Tecumseh, Danfoss compressor
Optional	Optional explosion-proof models

Precise Heating and Cooling circulator

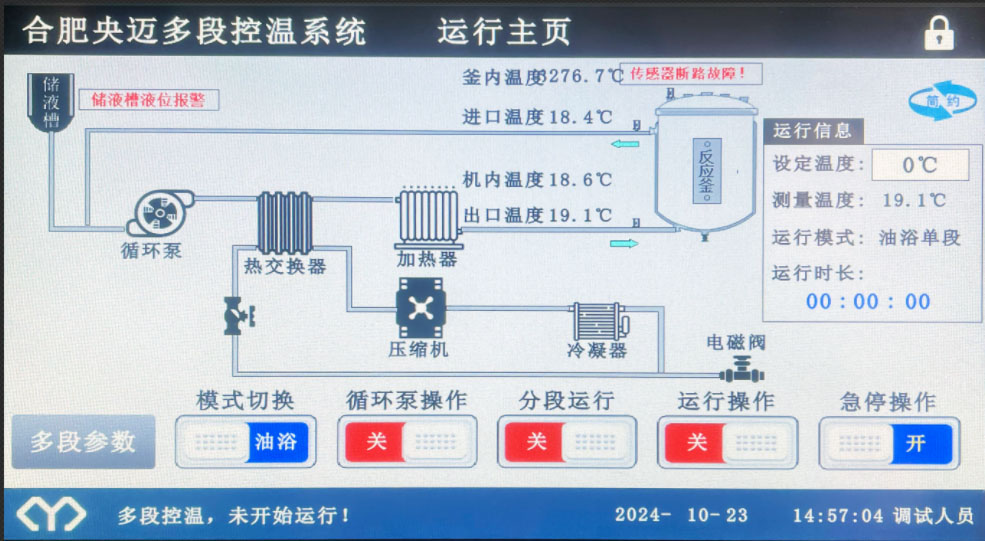

10-inch touch screen +Siemens module system +Independent research

and development procedures

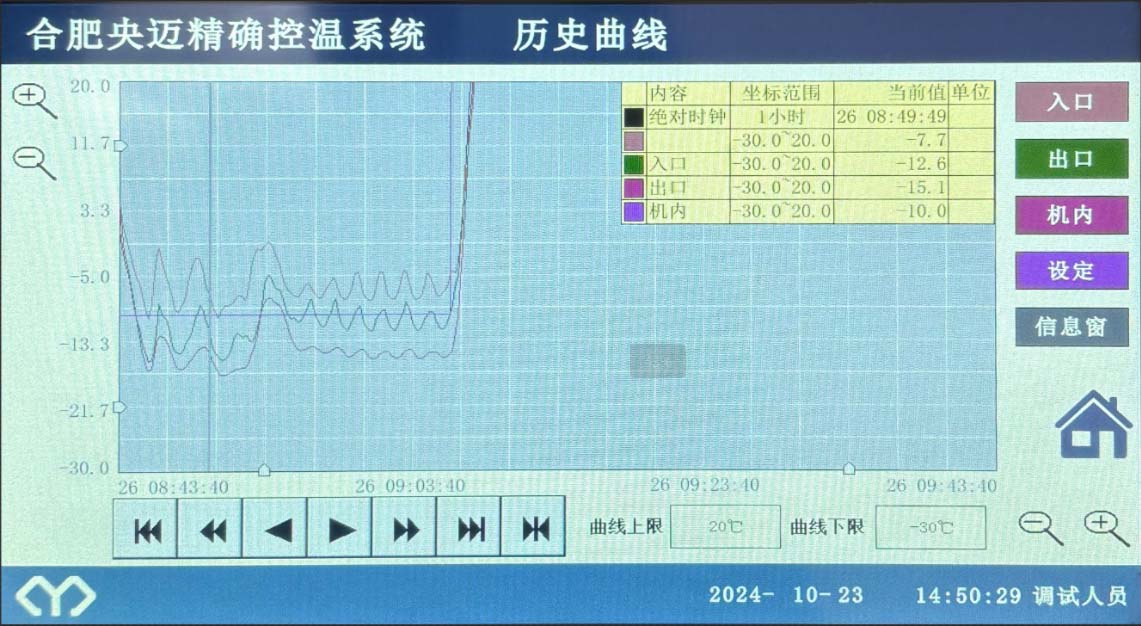

Temperature control curve:

Constant temperature control in the kettle

Switchable control of jacket temperature

(485 communication interface output printing)

Advantage of glass reactor

1.Wide Operating Temperature Range

Equipped with both heating and cooling capabilities, offering a standard range from -30℃ to 200℃. Custom temperature ranges are available upon request.

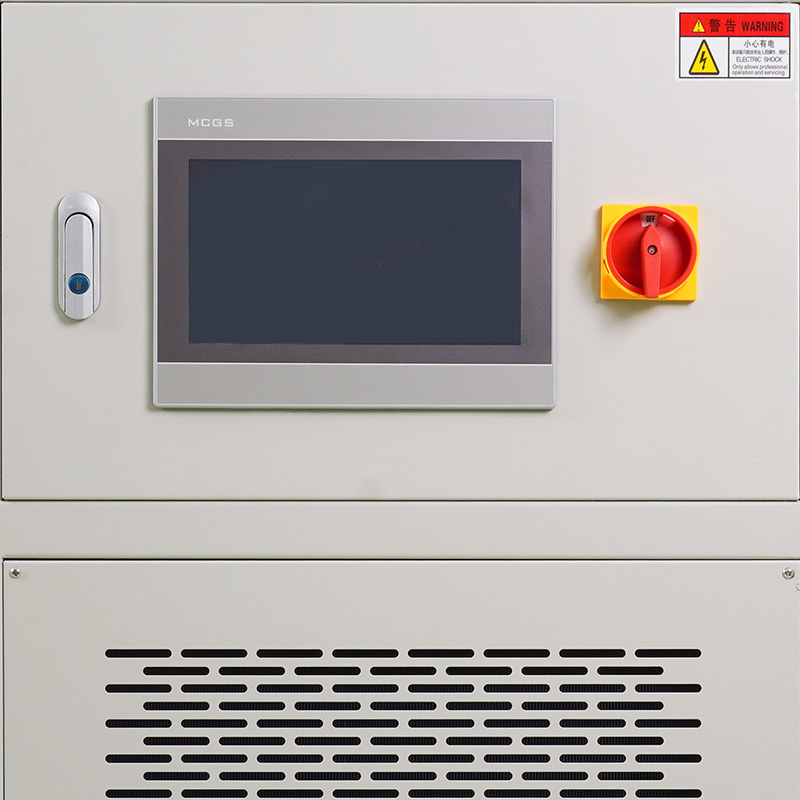

2.10-Inch Touchscreen Control Interface

Features an intuitive LED touchscreen that displays real-time system status, historical curves, and data logs. Data can be easily exported for analysis, ensuring simple and reliable operation.

3.Advanced Multi-Stage Cascade Technology

Utilizes multi-stage cascade refrigeration for enhanced temperature control performance and energy efficiency.

4.Continuous Temperature Regulation

Supports seamless temperature transitions between 200℃ and -30℃, enabling rapid cooling even under high-temperature conditions.

5.Fully Enclosed Circulation System

The sealed design prevents oil mist and moisture absorption, protecting both the experiment and the thermal fluid lifespan.

6.Reliable Cooling Performance

7.Comprehensive Safety Protection

Built-in multiple safety systems including relays, over-temperature protection, and thermal cut-offs for safe and secure operation.

8.Consistent Heat Transfer Medium Control

Maintains uniform use of a single heat transfer medium throughout the full heating and cooling process, reducing contamination and improving efficiency.

9.High-Lift Circulation Design

Supports long-distance transportation of thermal fluid to accommodate various experimental setups.

Optional Combination for Heater and Chiller

Diaphragm Vacuum Pumps
Glass Heat Exchanger
Diaphragm Metering Pumps

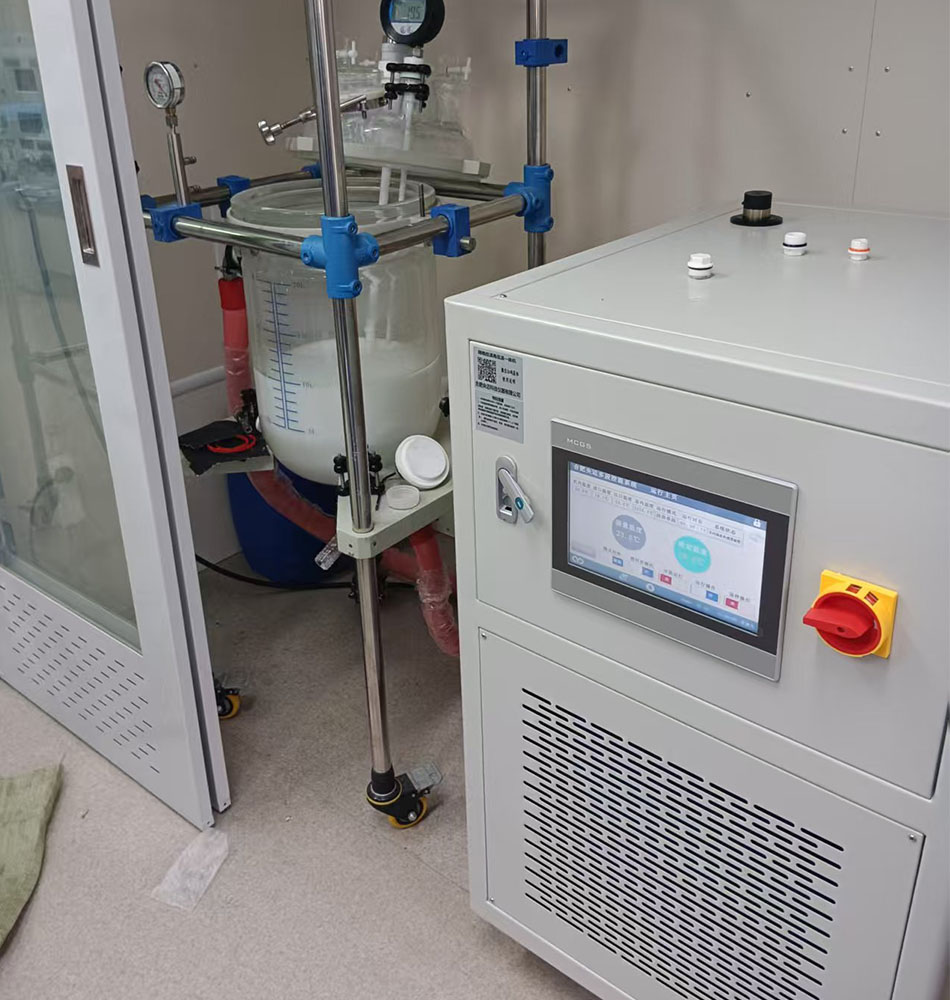

Lab-scale chemical reactor

Laboratory Temperature Control Circulator

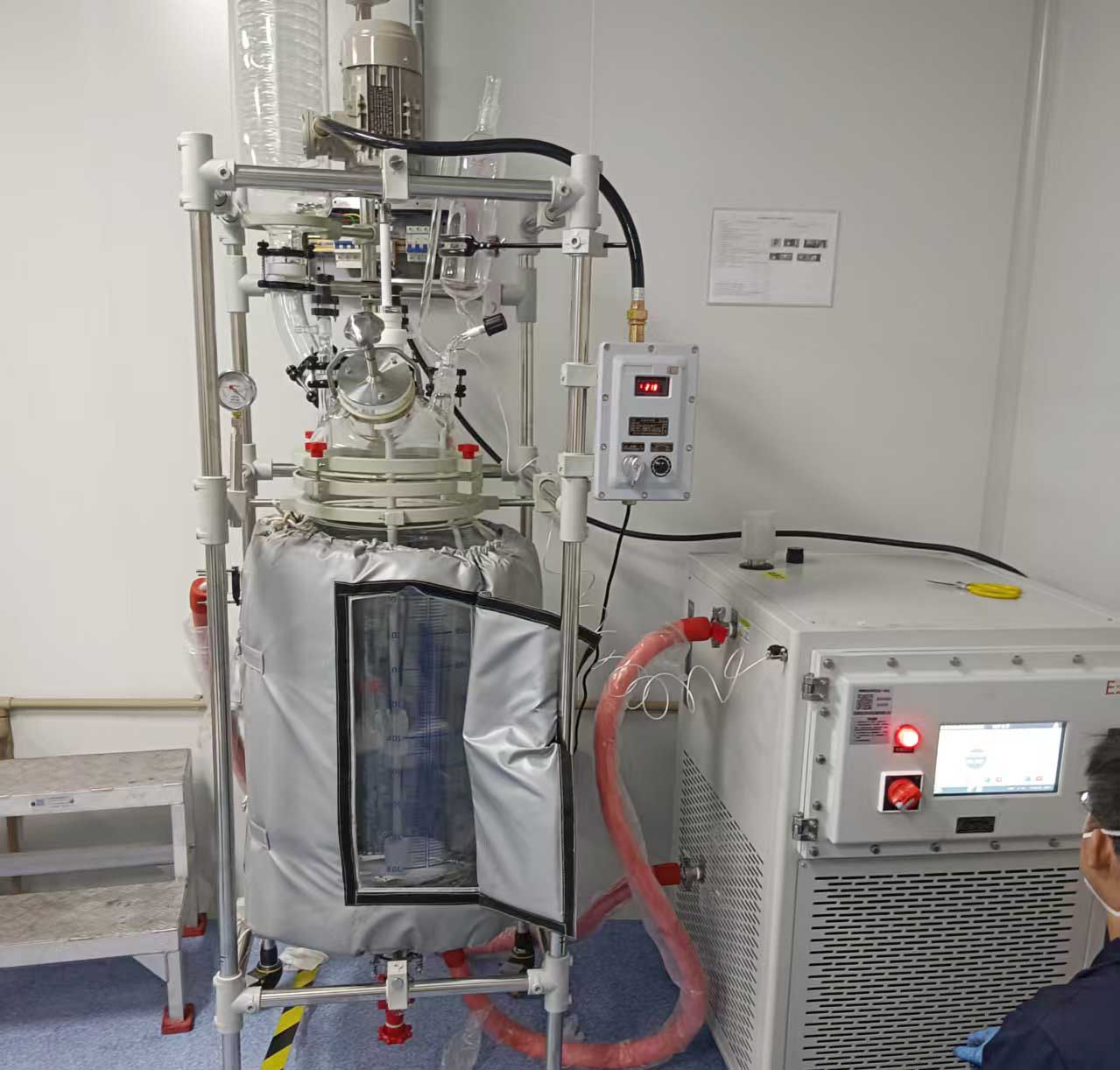

Package of glass reactor

Modular reactor assembly

RFQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4. Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
