50L Open Chiller offers precise cooling down to -105℃ with intelligent touch control and multi-level safety protection. Ideal for chemical and pharmaceutical applications requiring reliable thermal stability.
Feature:
Wide temperature range: -25℃~RT (Lower temperatures can be customized).
Full Safety Protection: Auto alarms and thermal protection included
High-Lift Circulation Pump: Supports long-distance fluid delivery
Accept customized design
Model :
YMOD-50Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V-50HZ

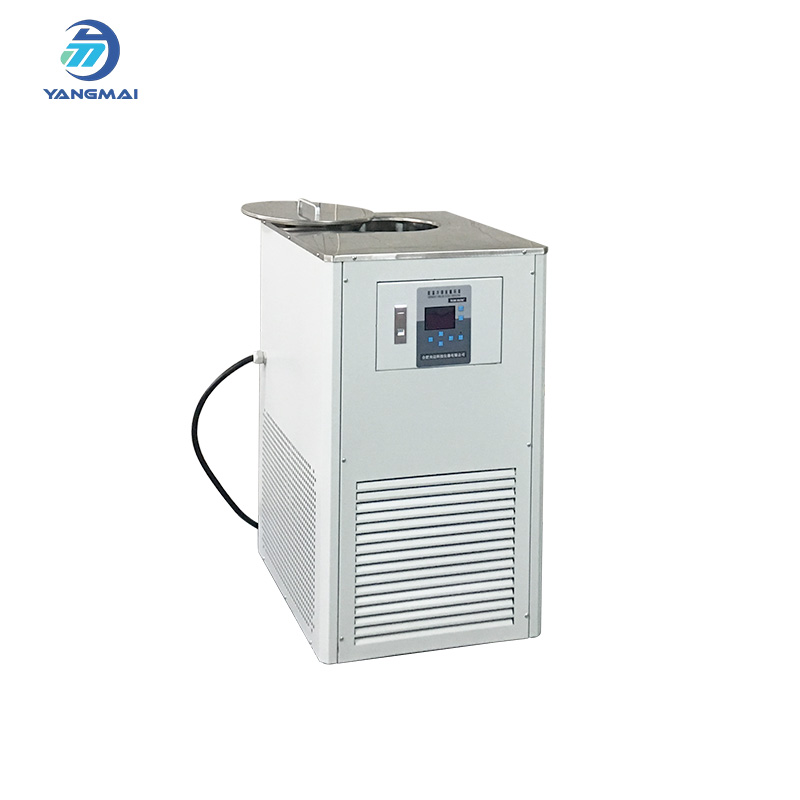

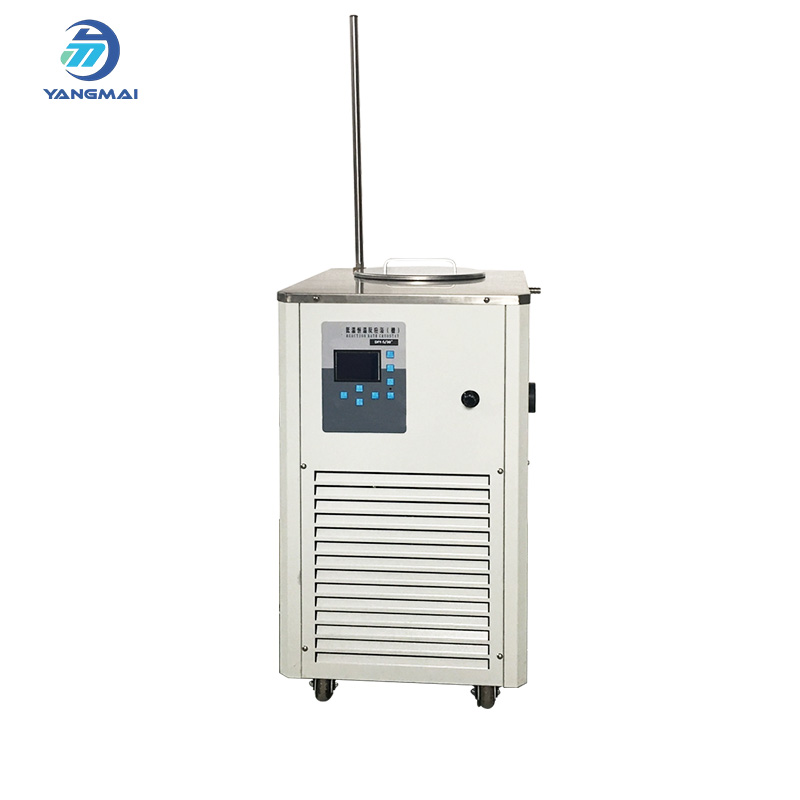

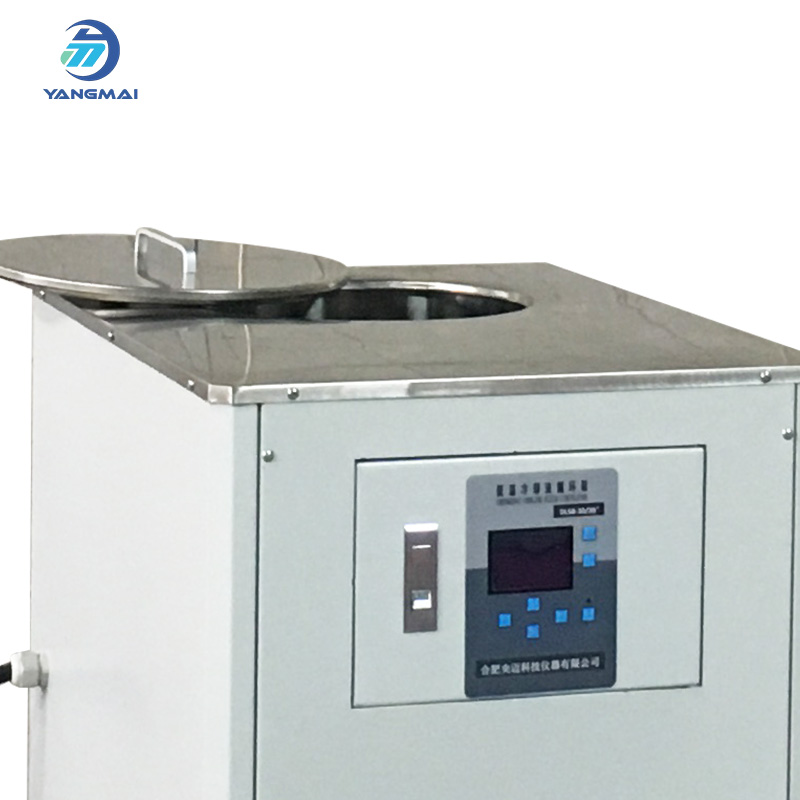

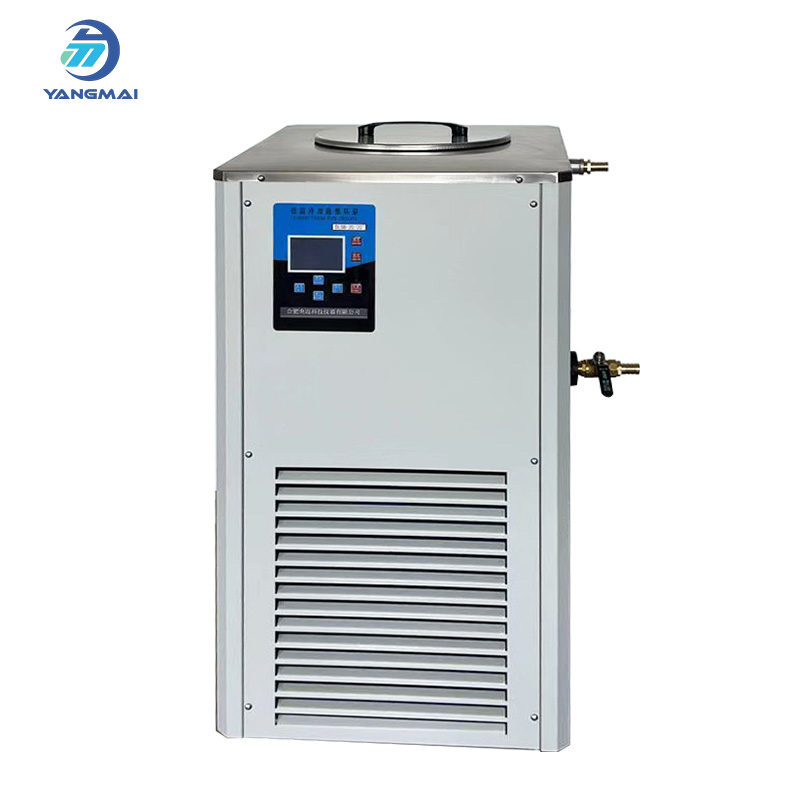

The 50L Unsealed Chiller by Hefei Yangmai Technology Instrument Co., Ltd is engineered for high-precision thermal control in demanding lab environments, with a working range from ambient to -105℃. The advanced multi-stage cascade refrigeration system ensures rapid cooling, while comprehensive safety features—including self-diagnostics, thermal and phase protection—enhance operational security. A high-lift circulation design supports long-distance heat transfer, making it the perfect solution for sophisticated chemical synthesis and pharmaceutical R&D processes.
| Model | YMOD-5 | YMOD10 | YMOD-20 | YMOD-30 | YMOD-50 | |
| Refrigeration temperature range (℃) | -20~RT | -20~RT | -30~RT | -30~RT | -30℃~RT | |
| Optimum temperature range (℃) | 5~35 | |||||
| Relative Humidity | ≤70% | |||||
| Power supply | 220V/50HZ | |||||
| Safety protection | Delay, over current, over heat | |||||
| Display | LCD display, button operation | |||||
| Temperature control accuracy (℃) | ±0.5 | |||||
| Temperature feedback | Pt100 | |||||
| Compressor | 1P | 1.5P | 2P | 2.5P | ||
| Power | 800W | 1300W | 1600W | 2000W | 3400W | |
| Cooling capacity |
1248-319W |
2548~1350W |
3175-990W |
4749-1140W |
||
| Circulation pump | Power | 15W | 15W | 15W | 25W | 100W |
| Lift | 3~4m | 4~6m | 5~7m | 5~7m | 5~8m | |
| Flow | 20~40L/min | 20~40L/min | 20~40L/min | 20~40L/min | 20~40L/min | |
| Pressure |
≤0.4MPa |
≤0.4MPa |
≤0.4MPa |
≤0.4MPa |
≤0.4MPa |
|
| Refrigerant | R22 | |||||
|
Shell material
|
Cold rolled plate spraying | |||||
|
Tank volume dimensions(mm)
|
DN220*180H | DN300*200H | DN300*300H | DN350*350H | DN350*350H | |
| Size(cm) | 55*40*75 | 60*45*82 | 69*59*100 | 69*59*100 | 69*59*100 | |
| Optional |
Shell material:Cold rolled plate spraying
|
|||||
| Optional |
Siemens PLC
|
|||||
1.Ultra-Wide Temperature Range
Supports cooling from room temperature down to -25℃ for demanding low-temperature applications.
2.Eco-Friendly Refrigerants
Utilizes environmentally friendly refrigerants to reduce environmental impact.
3.High-Quality Compressors
Features imported compressors from top brands such as Copeland, Taikang, and Danfoss for consistent and reliable performance.
4.Multi-Stage Cascade Technology
Implements advanced multi-level cascade cooling for efficient ultra-low temperature control.
5.Comprehensive Safety Protection
Includes self-diagnosis, high-pressure exhaust alarm, thermal overload, low-level detection, and phase failure protection.
6.Uniform Heat Transfer Medium Control
Maintains the same thermal fluid during both heating and cooling processes to ensure system integrity and efficiency.
7.High-Lift Pump Design

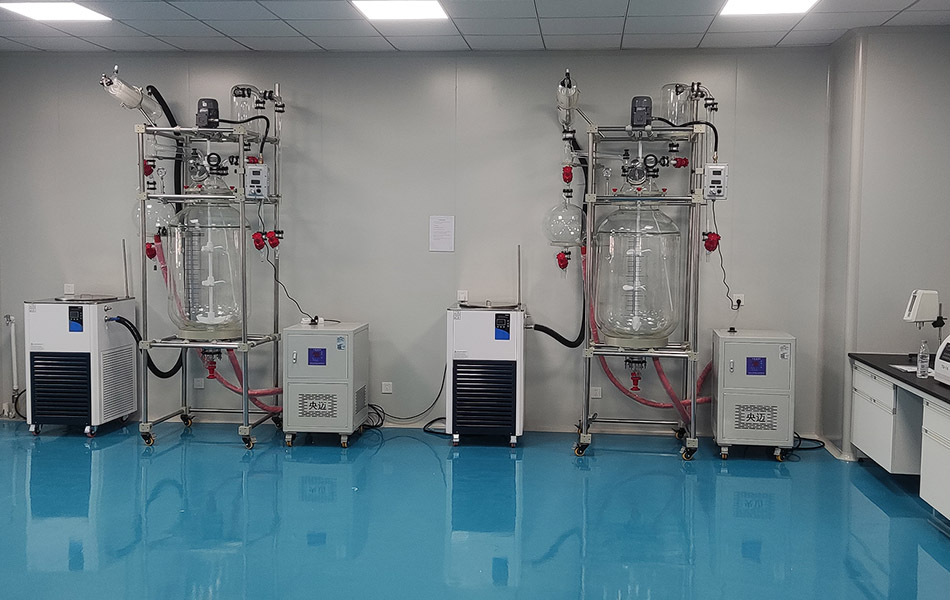

Built for long-distance transport of heat transfer fluid in complex lab setups.
