100L explosion-proof chiller ensures safe and stable low-temperature circulation for chemical reaction systems. Designed for hazardous lab environments, it delivers consistent cooling performance with anti-spark protection.
Feature:
Wide temperature range: -105℃~RT (Lower temperatures can be customized).
Data Recording & Alarm System
Self-Diagnosis & Safety Protection
Ultra-Low Temperature Capability
Accept customized design
Model :
YMD-100EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V-50HZ

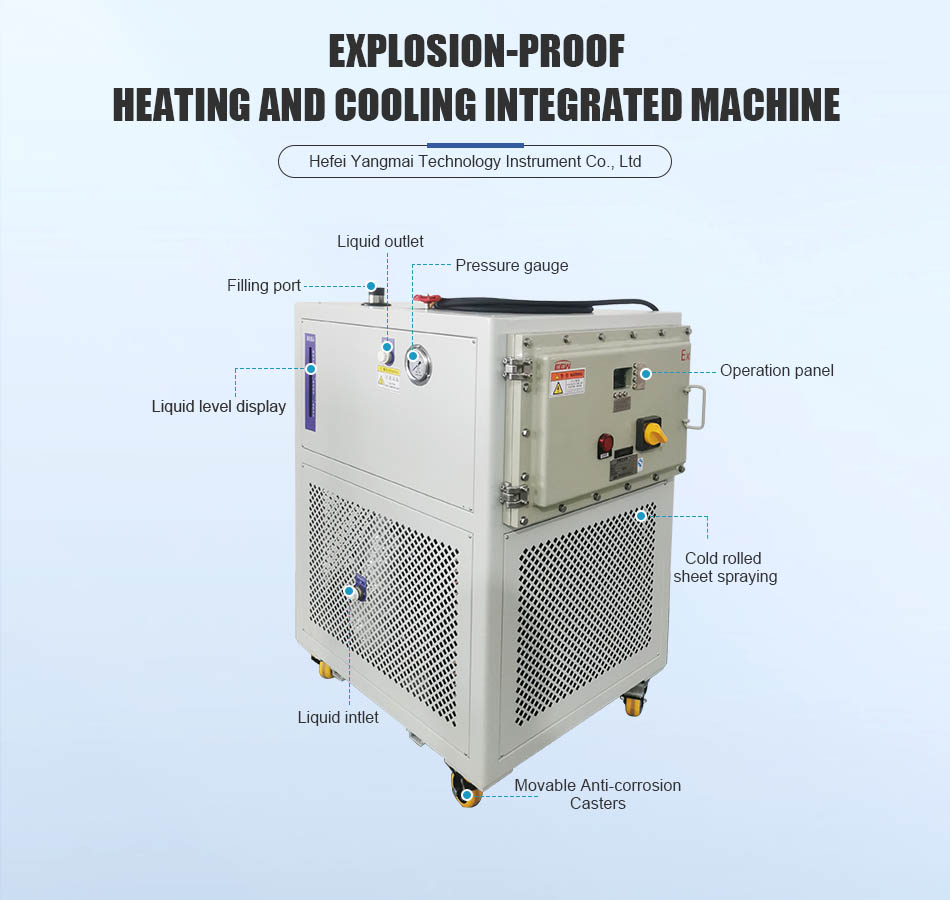

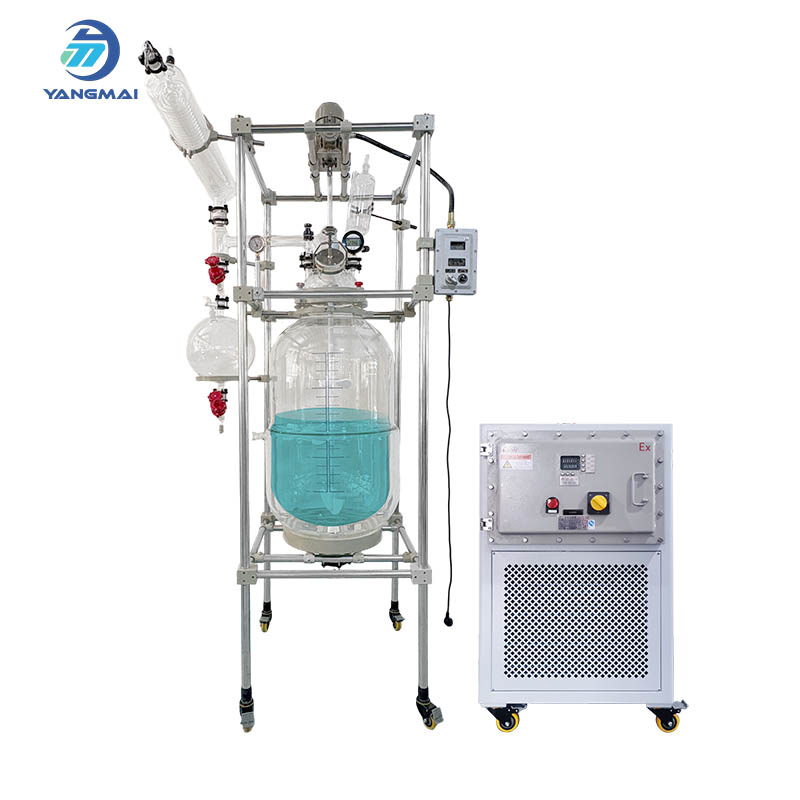

The 100L Chiller by Hefei Yangmai Technology Instrument Co., Ltd Specially engineered for use in flammable or volatile laboratory environments, this 100L explosion-proof recirculating chiller offers precise and reliable temperature control for glass reactor systems. Featuring a sealed loop system, industrial-grade explosion-proof components, and stable cooling down to ultra-low temperatures, it provides dependable operation for critical chemical processes. The robust structure, corrosion-resistant materials, and intuitive control panel ensure long-term safety and performance in demanding lab settings.
| Model | YMD-10/20EX | YMD-50EX | YMD-100EX | YMD-150EX | YMD-200EX | |
| Medium temperature range | -30℃-RT | |||||
| Setting&display | Button input, LED display | |||||
| Tem accuracy | ±0.5℃ | |||||
| Control Mode | Intelligent PID | |||||
| Cooling capacity | -25℃ | 1.5KW | 2KW | 3KW | 3.5KW | 4KW |
|
Pump flow |
40L/min | 56L/min | ||||
| Pump pressure | 0.8bar | 0.5-1.5bar | ||||
| Compressor |
Emerson Copeland/Taikang/Danfoss
|
|||||
| Evaporator |
Plate heat exchanger
|
|||||
| Expansion Valve |
Danfoss
|
|||||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||
| Liquid inlet and liquid outlet | DN20 | DN25 | ||||
| Refrigerator | R404A、R23 | |||||
| Dimention(CM) | 65*75*136 | 65*75*140 | 65*75*150 (water cooling) | 65*75*166(water cooling) | ||
| Shell material | Cold rolled plate spraying | |||||
| Pipe material | SUS304 | |||||
| Power supply | AC220V/50HZ | AC380V/50HZ | ||||
| Weight(KG) | 220 | 220 | 260 | 260 | 300 | |
| Optional | Temperature range:-105℃~RT | |||||
| Optional | Shell material:SUS304/316 | |||||
| Optional | With water cooling | |||||
| Optional |
10 inch touch screen
|
|||||
1.Extreme Low-Temp Capability
Delivers precise cooling from ambient down to -105℃ for complex lab processes.
2.Green Refrigeration Technology
Charged with eco-safe refrigerants to meet modern environmental standards.
3.Premium Brand Compressors
Built with trusted names like Copeland and Danfoss for lasting performance.
4.Efficient Cascade Cooling Design
Multi-layer cooling stages enhance efficiency in deep freezing applications.
5.Robust Safety Features
Equipped with alerts for high pressure, fluid level, overheating, and system errors.
6.Consistent Thermal Fluid Use
Operates with one heat transfer medium across the full thermal cycle.
7.Long-Distance Pumping Capability
High-lift pump ensures smooth circulation in large or distant systems.
