50L High Temperature Heating Circulator is designed for precise thermal control in chemical, pharmaceutical, and industrial processes, ensuring safe, stable, and efficient heating.
Feature:
Wide temperature range: RT~200℃ (higher temperatures can be customized).
High-precision PID temperature control
Shell material:Cold rolled sheet sprayed
Continuous Temperature Control System
Accept customized design
Model :
YMG-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V-50HZ

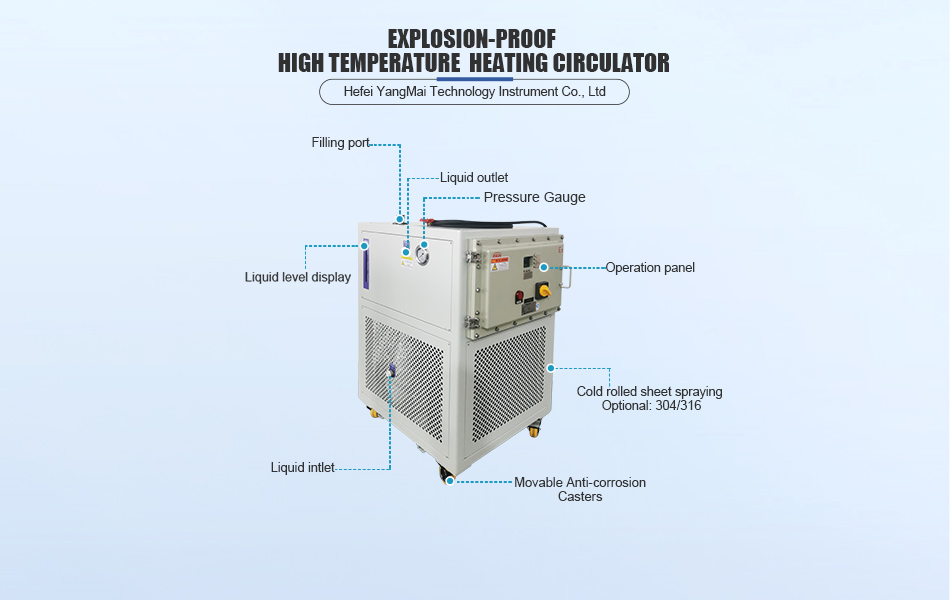

The High Temperature Heating Circulator by Hefei Yangmai Technology Instrument Co., Ltd is engineered to provide reliable and accurate thermal control for high-demand applications, such as exothermic polymerization, catalytic synthesis, and endothermic distillation. Built with a sealed circulation system, it prevents fluid evaporation and contamination, ensuring long-term operational stability. The explosion-proof motor and electrical components make it suitable for hazardous environments with flammable vapors or reactive gases. With rapid heating capability, excellent temperature uniformity, and compatibility with thermal oil, this circulator is an ideal choice for laboratories, pilot plants, and industrial facilities engaged in complex reaction processes. It supports a wide range of temperature-sensitive applications, including batch reactor heating, solvent recovery, and closed-loop process control, delivering consistent performance even under demanding conditions.
| Model | YMG-5EX | YMG-20EX | YMG-50EX | YMG-100EX | YMG-150EX | YMG-200EX |
| Tem range |
Homoeothermy~180℃
|
Homoeothermy~200℃ | ||||

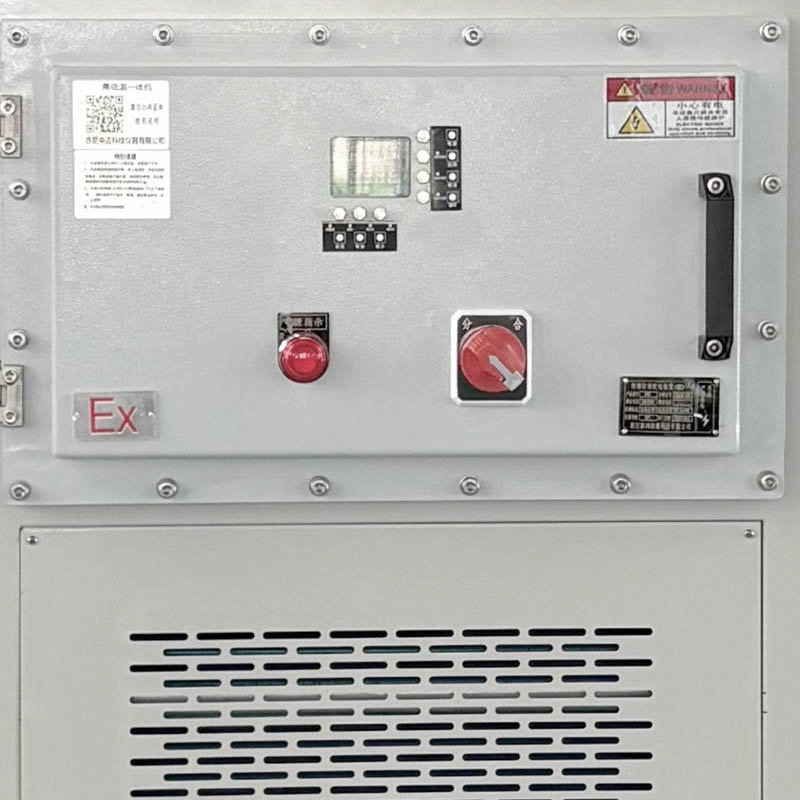

| Setting&display | Button input, LED display | |||||
| Tem accuracy | ±0.5℃ | |||||
| Control Mode | Intelligent PID | |||||
| Heating Power | 2.4KW | 3.5KW | 5KW | 7.5KW | 9KW | 12KW |
|
Pump flow |
20L/min | 40L/min | 56L/min | |||
| Pump pressure | 0.4bar | 0.8bar | 0.5-1.5bar | |||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||
| Liquid inlet and liquid outlet | DN15 | DN20 | DN25 | |||
| Dimention(CM) | 30*51*65 | 42*59*80 | 55*65*92 | |||
| Shell material | Cold rolled plate spraying | |||||
| Pipe material | SUS304 | |||||
| Power supply | AC220V/50HZ | AC380V/50HZ | ||||
| Weight(KG) | 50 | 80 | 80 | 80 | 110 | 110 |
| Optional | Temperature range:Homoeothermy~300℃ | |||||
| Optional | Shell material:SUS304 | |||||
| Optional | With water cooling | |||||
1. Explosion-Proof Design – Certified motor and controls for safe operation in hazardous environments.
2. High Temperature Range – Supports temperatures up to 300°C for various thermal applications.
3. Sealed Circulation System – Prevents evaporation and contamination of heat transfer fluids.
4. Precise Temperature Control – High-accuracy PID controller for stable heating performance.
5. Chemical Compatibility – Suitable for use with thermal oils and a wide range of reaction media.
6. Uniform Heat Distribution – Ensures consistent temperature across the entire process system.
7. Fast Heating Response – Rapid temperature ramp-up for efficient workflow.
8. Low Maintenance – Durable components designed for continuous industrial operation.
9. Energy Efficient – Optimized heating system reduces energy consumption.

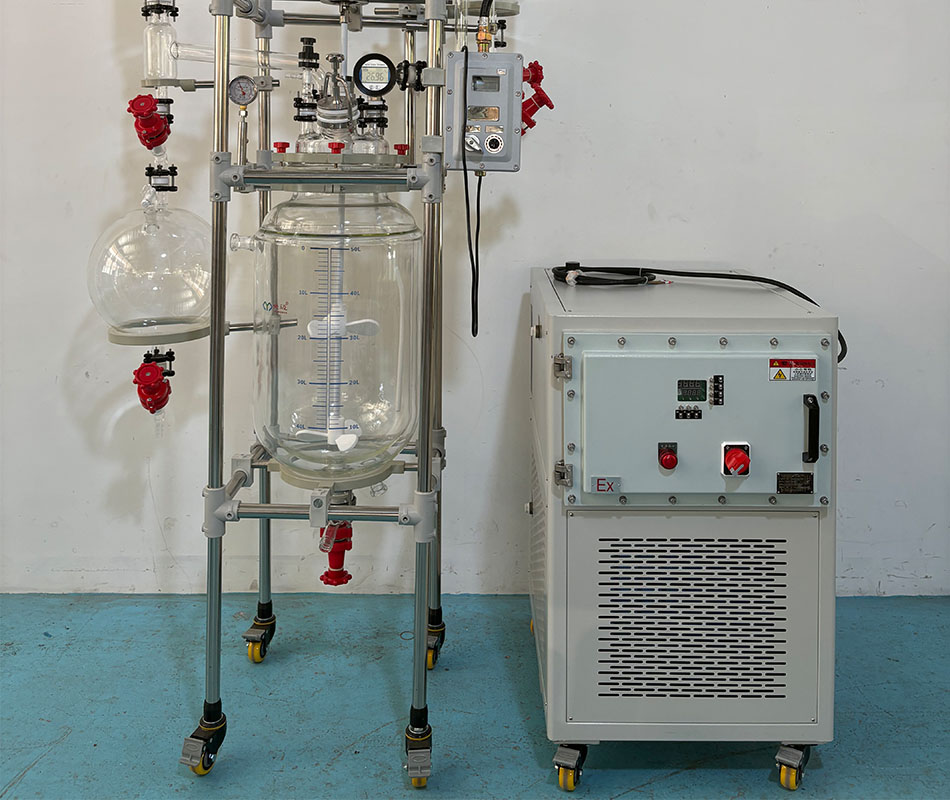

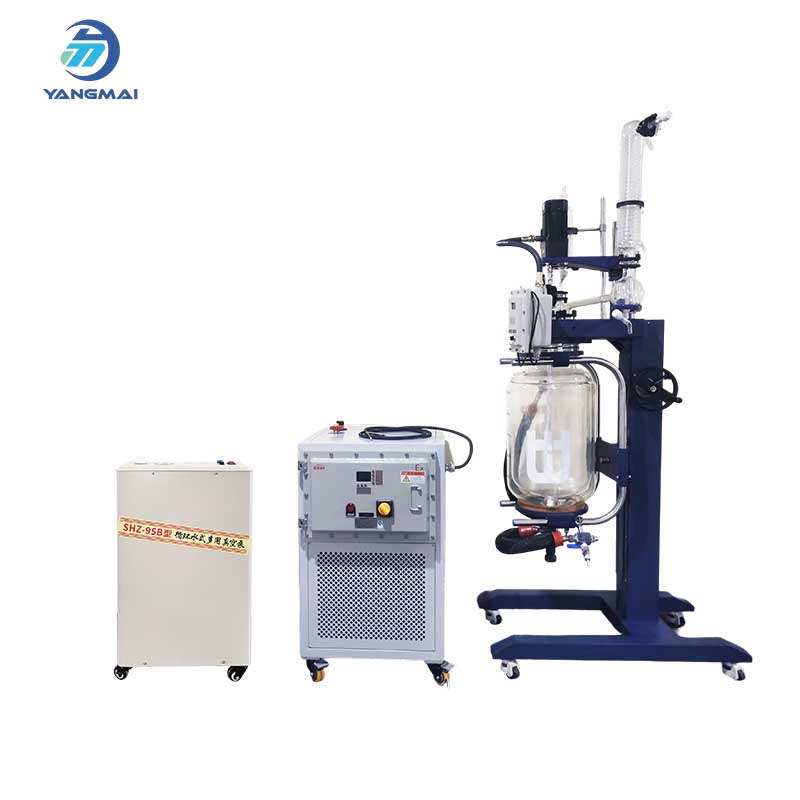

10. Versatile Applications – Ideal for reactors, distillation units, and pilot plant setups.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
