50L Chiller ensures stable cryogenic cooling for laboratories, pilot plants, and chemical processing equipment.
Feature:
Wide temperature range: -105℃~RT (Lower temperatures can be customized).
Sealed Design Prevents Fluid Loss and Contamination
Reliable Cooling with Imported Compressor Technology
Multiple Safety Alarms Ensure System Protection
Accept customized design
Model :
YMD-50/20Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
AC380V-50HZ

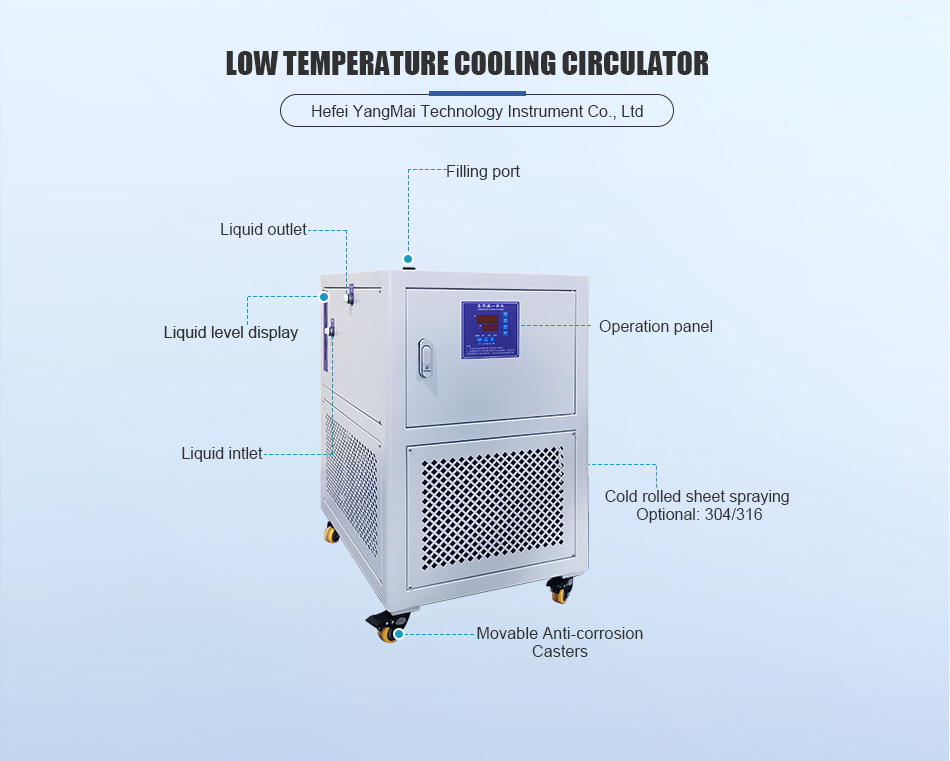

The 50L Chiller by Hefei Yangmai Technology Instrument Co., Ltd is designed to provide accurate cooling performance for laboratories and chemical industries. With advanced refrigeration technology, it supports stable operation in pharmaceutical experiments, organic reactions, and pilot-scale production.
| Model | YMD-10/20 | YMD-50 | YMD-100 | YMD-150 | YMD-200 | |
| Medium temperature range | -30℃-RT | |||||
| Setting&display | Button input, LED display | |||||
| Tem accuracy | ±0.5℃ | |||||
| Control Mode | Intelligent PID | |||||
| Cooling capacity | -25℃ | 1.5KW | 2KW | 3KW | 3.5KW | 4KW |
|
Pump flow |
40L/min | 56L/min | ||||
| Pump pressure | 0.8bar | 0.5-1.5bar | ||||
| Compressor |
Emerson Copeland/Taikang/Danfoss
|
|||||
| Evaporator |
Plate heat exchanger
|
|||||
| Expansion Valve |
Danfoss
|
|||||
| Safety protection | Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc. | |||||
| Liquid inlet and liquid outlet | DN20 | DN25 | ||||
| Refrigerator | R404A、R23 | |||||
| Dimention(CM) | 65*75*136 | 65*75*140 | 65*75*150 (water cooling) | 65*75*166(water cooling) | ||
| Shell material | Cold rolled plate spraying | |||||
| Pipe material | SUS304 | |||||
| Power supply | AC220V/50HZ | AC380V/50HZ | ||||
| Weight(KG) | 220 | 220 | 260 | 260 | 300 | |
| Optional | Temperature range:-105℃~RT | |||||
| Optional | Shell material:SUS304 | |||||
| Optional | With water cooling | |||||
| Optional |
10 inch touch screen
|
|||||
1. Precise Cooling Accuracy – Maintains stable low temperature output with minimal fluctuation for sensitive experiments.
2. Broad Cooling Range – Supports operations from standard laboratory temperatures down to cryogenic levels.
3. Compact Footprint – Space-saving design suitable for laboratories and pilot plants with limited space.
4. User-Friendly Interface – Equipped with digital temperature controls and clear display for easy monitoring.
5. Strong Adaptability – Compatible with glass reactors, rotary evaporators, distillation units, and chemical analysis equipment.
6. Reliable Operation – Built with high-quality compressors and durable materials for continuous use.
7. Low Noise Performance – Engineered for reduced vibration and quiet operation in laboratory environments.
8. Energy Conscious Design – Optimized refrigeration cycle improves cooling efficiency and reduces power consumption..
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
