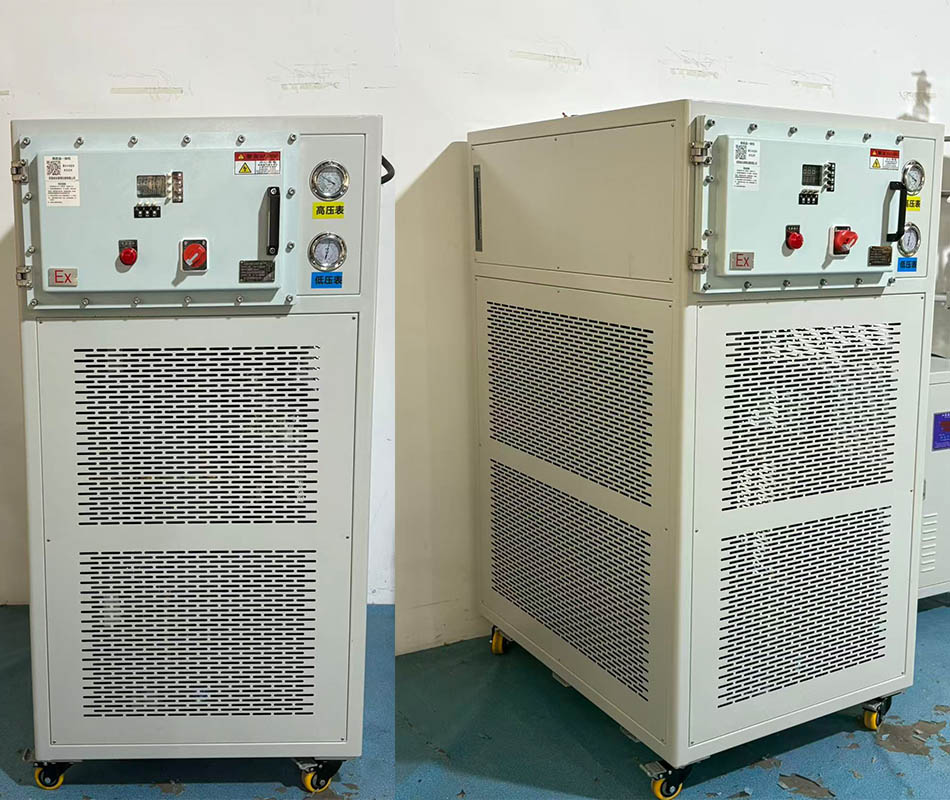

300L Ex Heating and Cooling Integrated Circulator Heating Circulator

Name: 300L Ex Heating and Cooling Integrated Circulator Heating Circulator
Availability: InStock

The 300L explosion-proof high-low temperature circulator integrates heating and cooling in one unit for precise thermal control. Ideal for supporting glass reactors in chemical laboratories with enhanced safety and stability.

Feature:

Wide temperature range: -30℃~300℃

Explosion-Proof Design: Ensures safe operation in flammable environments.

Dual Temperature Function: Integrated heating and cooling in one system.

Eco-Friendly Refrigerants: Reduces environmental impact.

Accept customized design

Product Parameters

Model :
YMGD-300EX
Order(MOQ) :
1 Set
Lead Time :
10~15 working days
OEM :
Accepted
Power Supply :
AC380V/50HZ

Product Details

Laboratory high and low temperature circulator

The 300L High and Low Temperature Integrated Machine by Hefei Yangmai Technology Instrument Co., Ltd is a high-capacity temperature control system designed for chemical and laboratory-scale chemical processes. With a wide operating range from -30°C to 300°C, it provides precise and reliable heating and cooling for synthesis, crystallization, polymerization, and extraction applications.

Model	YMGD-5EX	YMGD-20EX	YMGD-50EX	YMGD-100EX	YMGD-150EX	YMGD-200EX	YMGD-500EX	YMGD-2000EX
Tem range	-25-180℃	-30-300℃
Setting&display	Button input, LED display
Tem accuracy	±0.5℃
Control Mode	Intelligent PID
Heating Power	2.4KW	3.5KW	5KW	7.5KW	9KW	12KW	40KW	70KW
Pump flow	20L/min	40L/min				56L/min
Pump pressure	0.4bar	0.8bar				0.5-1.5bar
Compressor	Embraco	Emerson Copeland
Evaporator	Plate heat exchanger
Expansion valve	Danfoss
Safety protection	Self-diagnosis, compressor overload protection, exhaust pressure protection, circulating pump overload pressure Danfoss protection, low liquid level protection, phase loss and out-of-phase protection, etc.
Refrigerant	R404A eco-friendly refrigerant
Shell material	Cold rolled plate spraying
Pipe material	SUS304
Power supply	220V/50HZ	380V/50HZ
Weight(KG)	80	150	160	180	210	230	580	900
Dimention(CM)	505683	6272102	6575107	6575136	6575136	6575136	90130160	130170190
Optional	Temperature range:-105~300℃
Optional	Shell material:SUS304
Optional	Tecumseh, Danfoss compressor
Optional	Optional explosion-proof models

Explosion-proof heating and cooling circulator

Advantage of glass reactor

1.Large 300L Capacity – Ideal for pilot-scale and industrial chemical processes.

2.Wide Temperature Range – Precise heating and cooling from -40°C to 200°C for diverse reactions.

3.Explosion-Proof Design – Certified for safe operation in flammable and volatile chemical environments.

4.High-Precise Temperature Sensors – Ensures stable and accurate thermal control throughout the reaction.

5.Efficient Circulation System – Uniform heating/cooling with low noise, low vibration, and low cavitation.

6.Safety Features – Over-temperature protection, pressure relief valves, and automatic shutdown functions.

Heater Chiller Vacuum Pump for Glass Reactor

Diaphragm Vacuum Pumps
Glass Heat Exchanger
Diaphragm Metering Pumps

Lab-scale chemical reactor

Laboratory Explosion Proof Thermal Circulator

Package of glass reactor

Modular reactor assembly

FAQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4. Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
