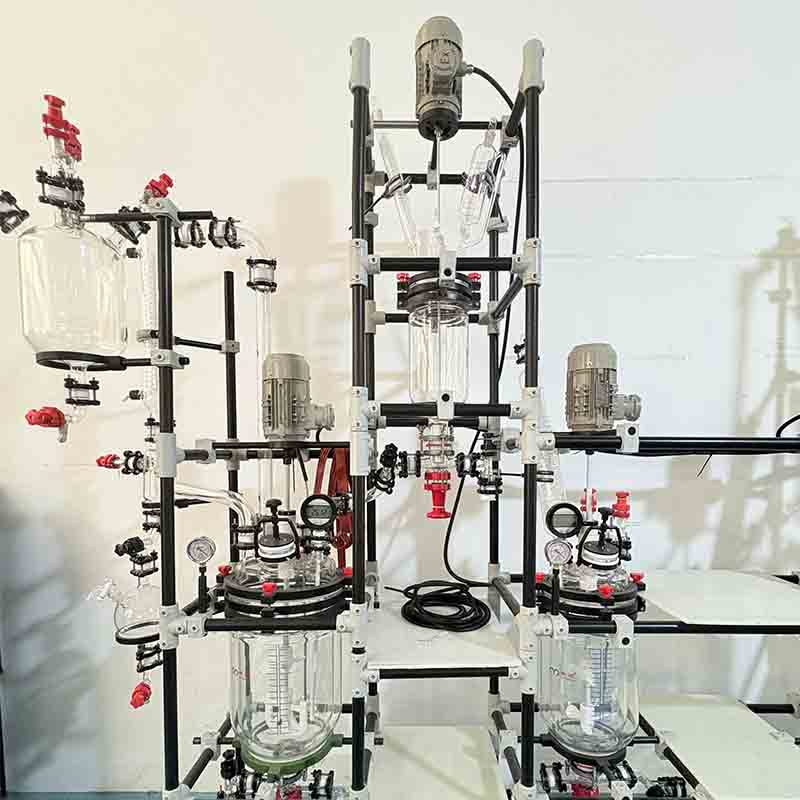

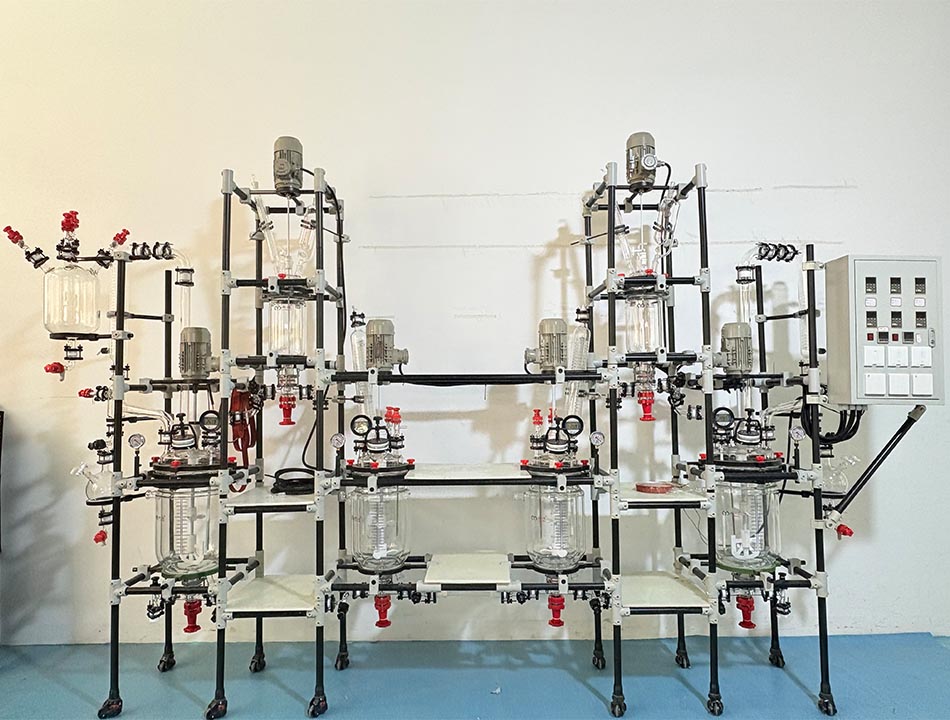

Combined glass reactor system allows multiple reaction processes in a single unit. Equipped with jacketed heating/cooling, mechanical stirring, and vacuum capability, it supports chemical synthesis, crystallization, and distillation for research or pilot production.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMCGR-10/20EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The Combined Glass Reactor from Hefei Yangmai Technology Instrument Co., Ltd. is constructed from high-quality borosilicate glass and corrosion-resistant components, this reactor delivers durability, scalability, and safety. Its versatile modular design meets the demands of laboratory experiments and small-scale pharmaceutical production.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |

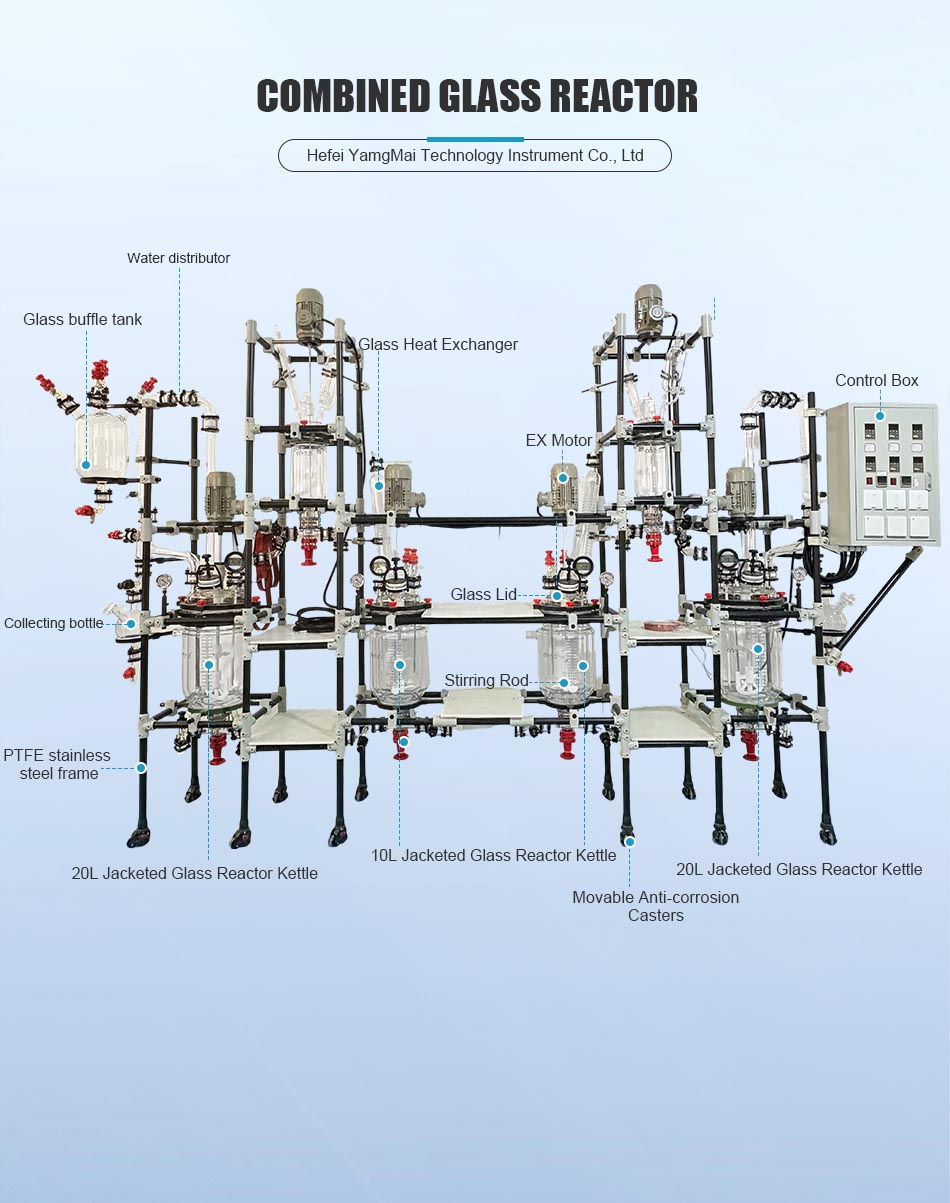

1. Modular Design – Flexible configuration with interchangeable vessels, condensers, and accessories to meet different reaction needs.
2. High Borosilicate Glass – Excellent chemical resistance, thermal stability, and clear visibility for reaction monitoring.
3. Vacuum Compatibility – Allows reduced-pressure operations for distillation, solvent recovery, and sensitive reactions.
4. Durable Frame Structure – Stainless-steel support ensures stability, strength, and long service life.
5. Efficient Mixing System – Equipped with adjustable stirrer for uniform mixing and improved reaction efficiency.
6. Safe Operation – Leak-proof seals and corrosion-resistant materials guarantee reliable performance in laboratory and pilot environments.
7. Versatile Applications – Suitable for synthesis, crystallization, extraction, and chemical or pharmaceutical scale-up experiments.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
