A 100 L jacketed glass reactor is a versatile piece of equipment widely used in chemical, pharmaceutical, food, and biotech industries.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMGR-100EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
Hefei YangMai Technology Instrument Co., Ltd. offers high-performance jacketed glass reactors designed for precise temperature control and chemical resistance. Constructed from durable 3.3 borosilicate glass, these reactors feature a double-layer (jacketed) design that allows circulation of heating or cooling fluids for efficient thermal regulation. Ideal for chemical synthesis, distillation, crystallization, and other laboratory or pilot-scale processes, our jacketed glass reactors ensure safe, stable, and visible reaction monitoring. Custom sizes and configurations are available to meet diverse research and production needs.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.High-Purity borosilicate 3.3 glass construction，acid and alkali resistant, high temperature resistant
2.Dual-Layer precision jacket design,the integrated outer jacket enables efficient thermal fluid circulation.

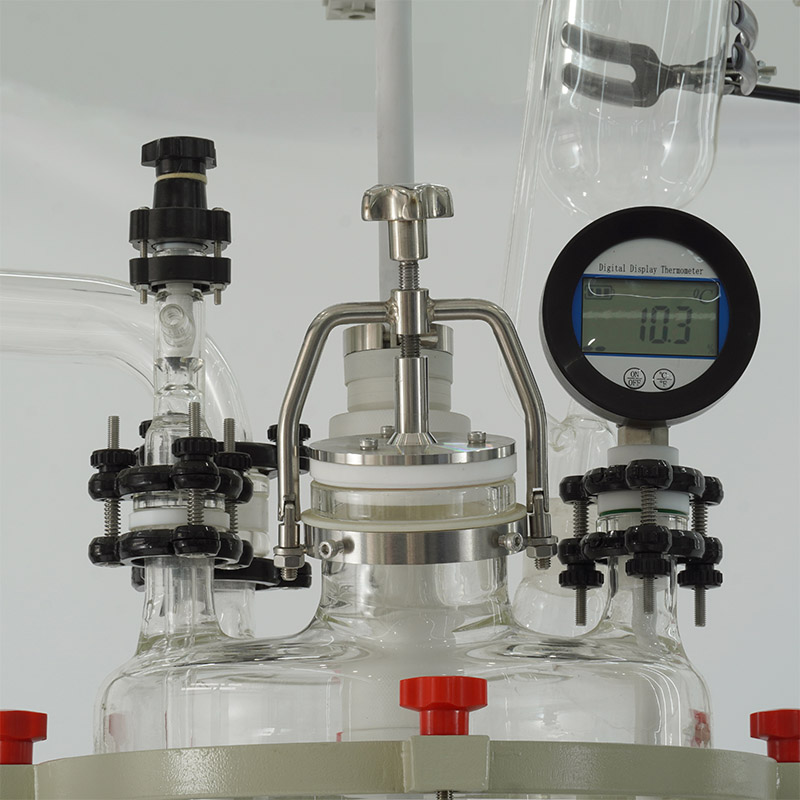

3.PTFE + ceramic mechanical sealing system,corrosion-resistant seal that supports long-term vacuum operation without leakage.
4.Explosion-proof motor and explosion-proof control box,more safe.
5.Customized design accepted.Reactors can be tailored with custom , valve types, stirring paddles, ports,and accessories.
6.Industrial-grade stainless steel frame with and corrosion resistant heavy-duty locking casters, enabling easy movement and secure operation in dynamic lab environments.
7.Advanced Temperature Sensing Accuracy
8.No Dead angle discharge design, reducing material waste and simplifying cleaning between batches.

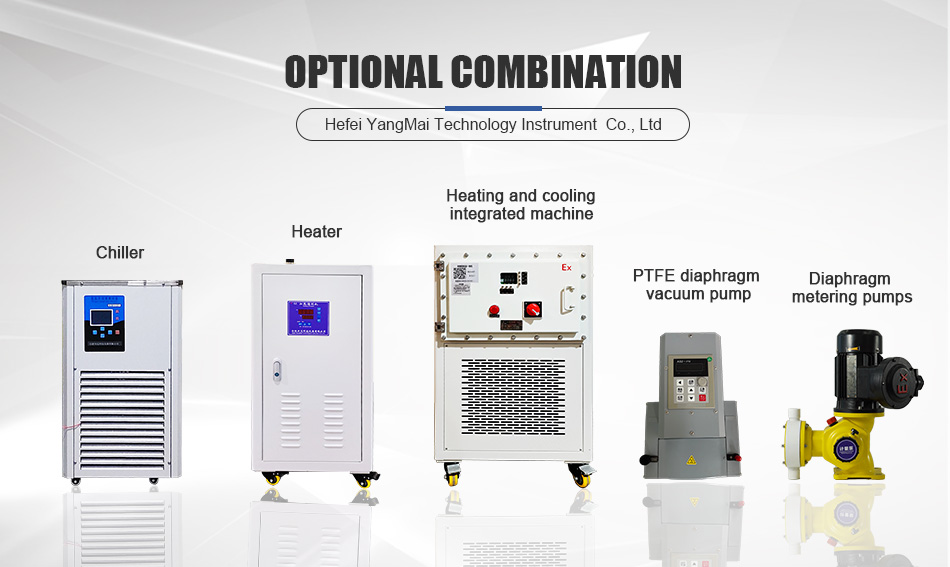

9.Wide compatibility with auxiliary systems.Seamlessly integrates with chillers, heaters, vacuum pumps,PH meter,ultrasound and so on.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
WhatsApp : +8615665455996
Email : vera@yangmaireactor.com
Tel : +86 -13053083981
