1L Integrated Glass Reactor is designed for precise laboratory chemical synthesis and provides stable stirring and temperature control performance.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Continuous Overflow Design
Heavy-Duty Steel Frame
Accept customized design
Model :
YMOGR-01EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

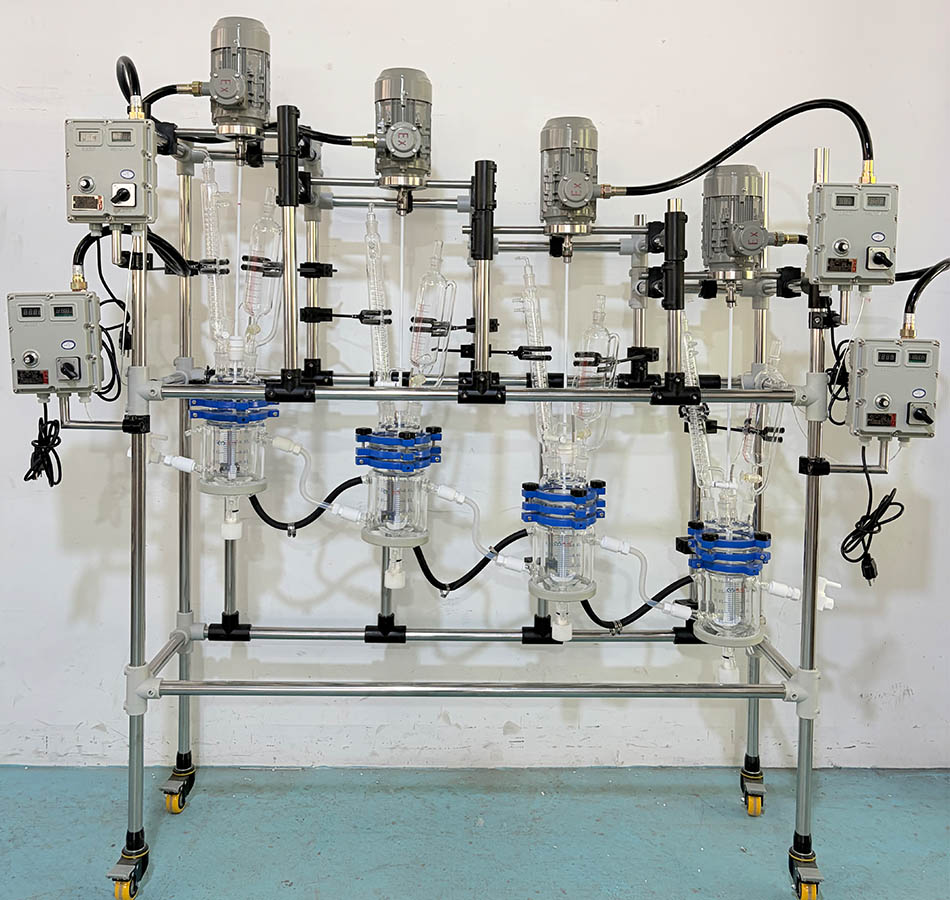

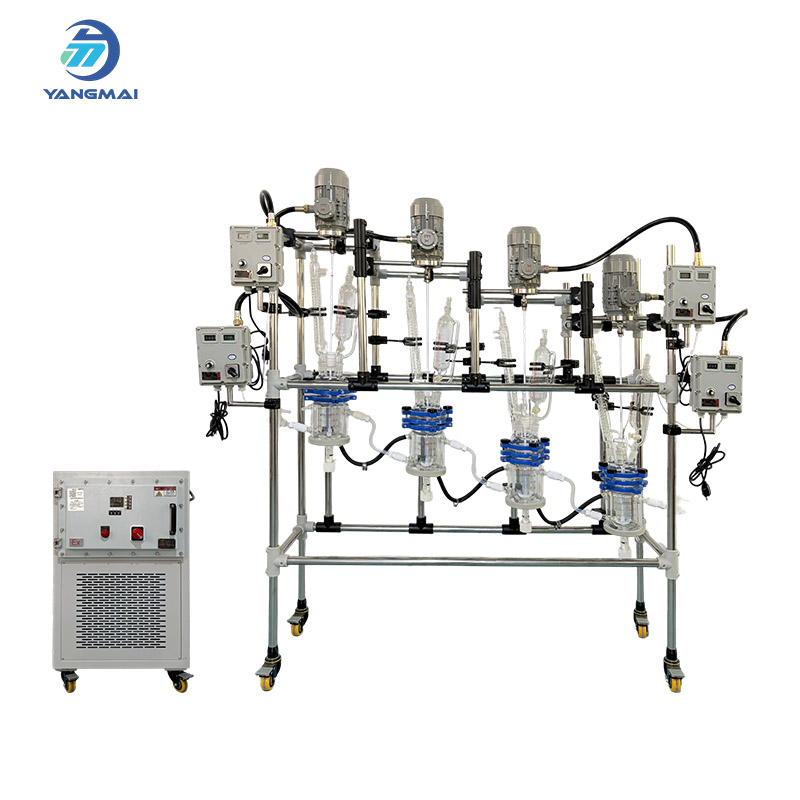

The 1L Integrated Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd is designed for advanced laboratory synthesis and chemical research applications. It integrates a double-layer glass structure with efficient thermal control, ensuring stable reaction conditions for sensitive processes. The system supports stirring, heating, and optional vacuum operation, making it suitable for a wide range of organic and pharmaceutical reactions. Its transparent borosilicate glass allows real-time observation of reaction changes. This equipment is widely used in fine chemical development, catalyst testing, and laboratory-scale production studies.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1. The 1L integrated glass reactor integrates stirring, heating, and reaction functions in one compact system.
2. It is constructed from high-quality borosilicate glass with excellent chemical resistance and thermal stability.
3.The jacketed design ensures uniform heat transfer for precise temperature-controlled reactions.
4. It supports vacuum operation for distillation, solvent recovery, and air-sensitive reactions.
5. The efficient stirring system provides stable mixing for homogeneous chemical synthesis.
6. The transparent reactor body allows real-time observation of reaction progress and color changes.
7. It is suitable for small-scale laboratory synthesis and pharmaceutical research applications.
8. The modular design allows easy assembly, cleaning, and maintenance for laboratory use.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
