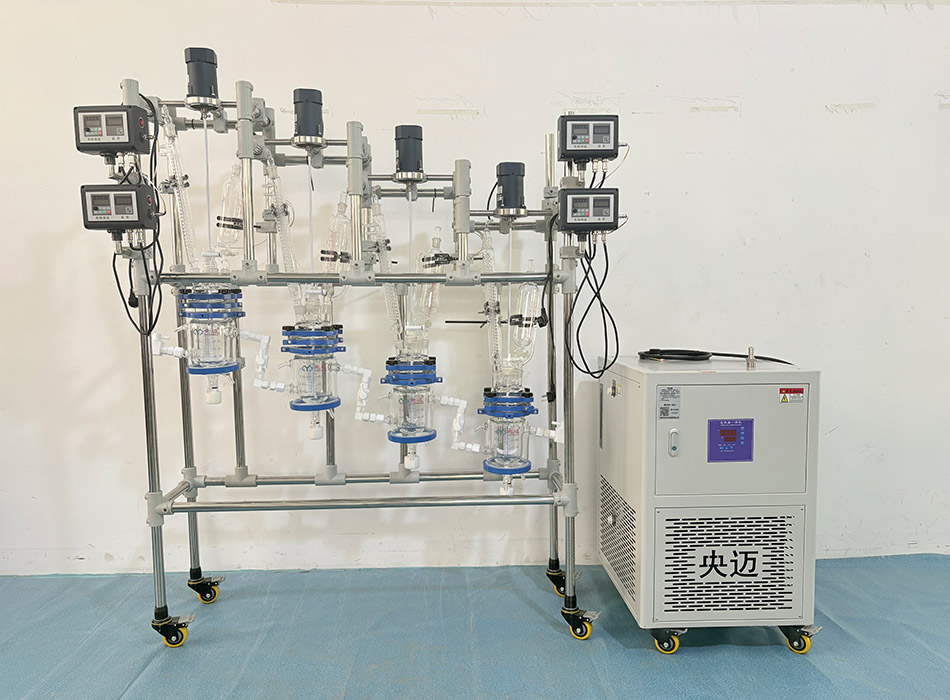

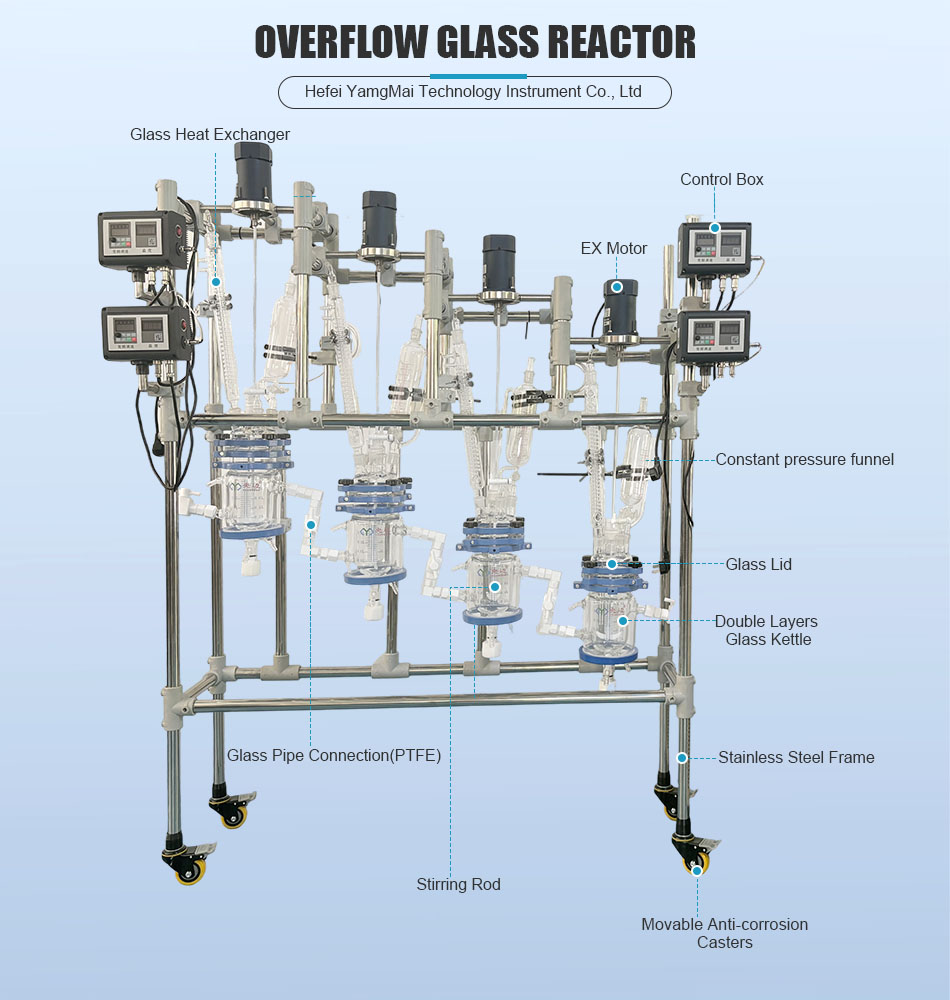

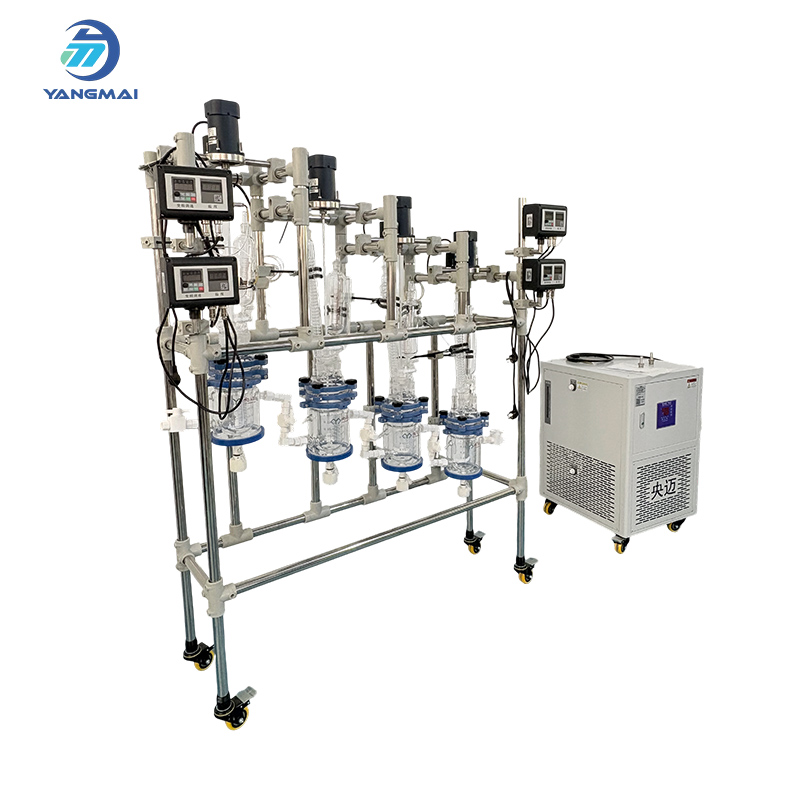

The Overflow Glass Reactor is designed for precise chemical precipitation and laboratory process research.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃

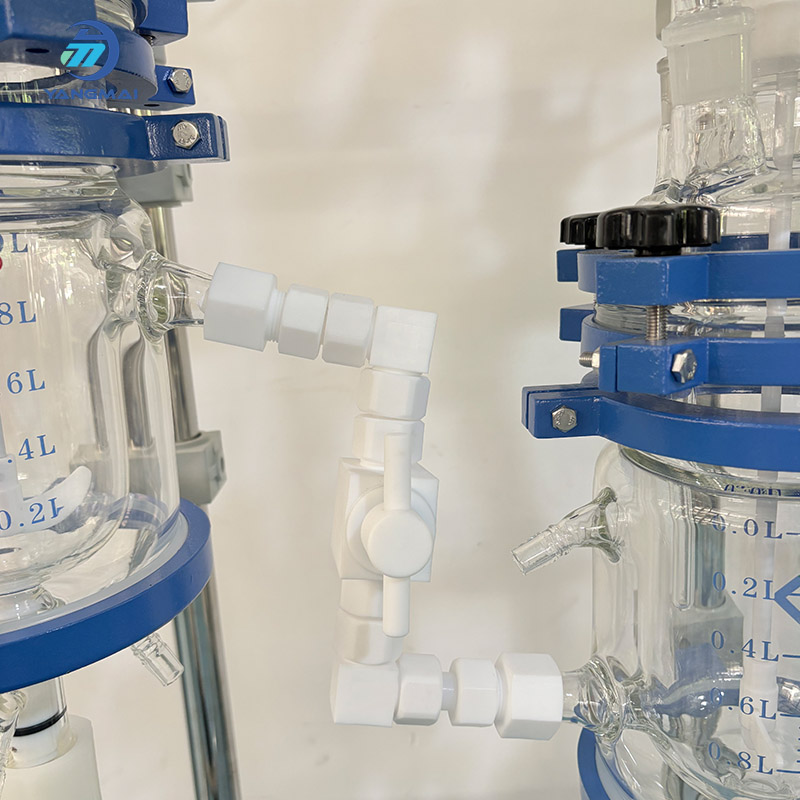

Continuous Overflow Design
Heavy-Duty Steel Frame
Accept customized design
Model :
YMOGR-01Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 1L Glass Overflow Reactor by Hefei Yangmai Technology Instrument Co., Ltd is engineered for controlled precipitation, crystallization, and other chemical reactions in laboratory and pilot plant environments. Made from high borosilicate glass, it ensures excellent chemical resistance, visibility of processes, and stable performance under continuous operation. The overflow design provides efficient separation of reaction liquids, making it ideal for scale-up studies, material testing, and scientific research. With its compact structure and easy-to-clean components, this reactor is a reliable solution for laboratories working on chemical synthesis, pharmaceutical research, and educational experiments.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1. High Borosilicate Glass – Excellent chemical resistance and thermal stability.
2. Overflow Design – Efficient separation of reaction liquids for precise processes.
3. Clear Visibility – Transparent glass allows easy monitoring of reactions.
4. Durable Construction – Resistant to corrosion and long-term laboratory use.
5. Modular Components – Easy assembly, disassembly, and cleaning.
6. Versatile Applications – Ideal for research, teaching, and pilot plant experiments.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
