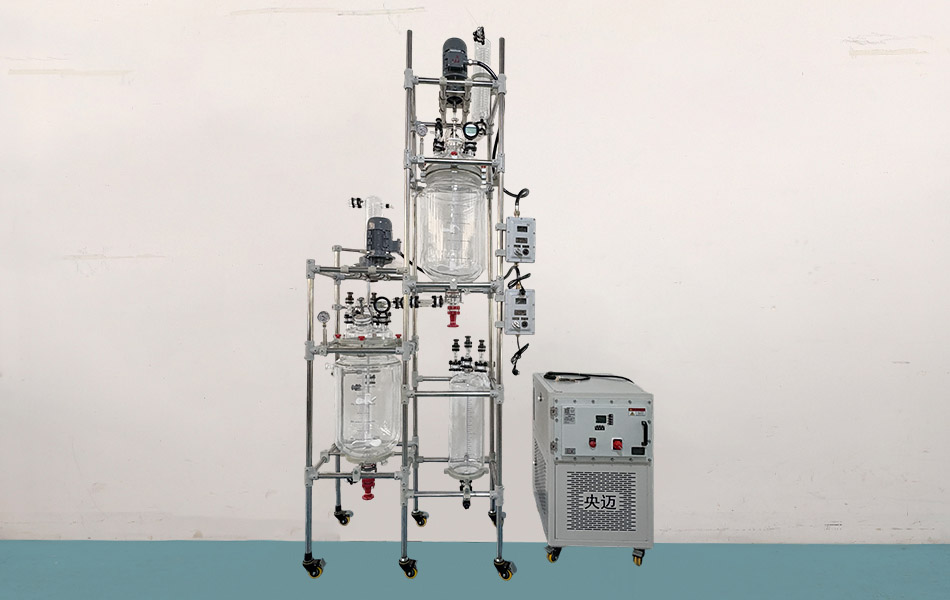

The 50L glass vacuum defoaming and PES mixing system enables precise temperature control and efficient bubble removal for high-purity chemical preparation and polymer mixing.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMCGR-50EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 50L glass vacuum defoaming and PES mixing system from Hefei Yangmai Technology Instrument Co., Ltd. is designed for efficient material preparation, dispersion, and bubble removal in chemical and laboratory processes. The double-layer glass structure provides precise temperature control for heating or cooling during the defoaming process. The PES mixing tank ensures excellent chemical compatibility and uniform blending of polymers, resins, and coatings. This system is ideal for laboratories, chemical synthesis, and material formulation applications where precision, stability, and clarity are required.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |

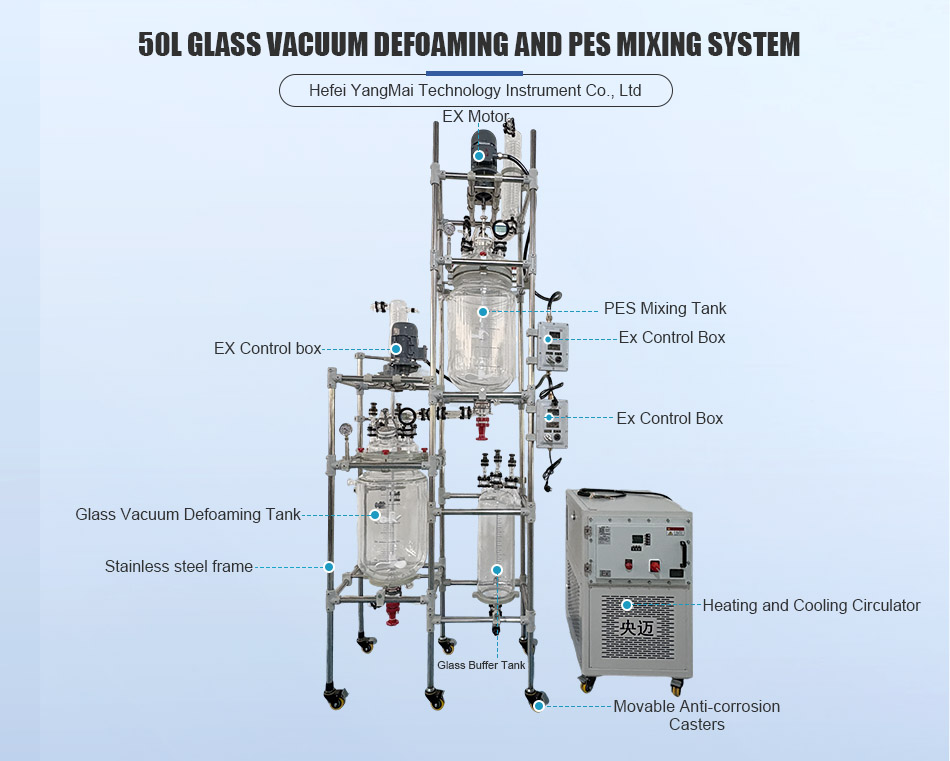

1. Double-layer glass design ensures excellent heat insulation and visibility during operation.
2. Vacuum defoaming function effectively removes air bubbles from liquid mixtures.
3. PES mixing tank offers high chemical resistance and stability for solution preparation.
4. Variable speed stirring provides uniform and efficient mixing performance.
5. Corrosion-resistant materials suitable for chemical, pharmaceutical, and cosmetic applications.
6. Easy-to-clean structure with detachable components for convenient maintenance.
7. Compatible with temperature control systems for heating or cooling as required.
8. Sturdy stainless steel frame ensures durability and long service life
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
