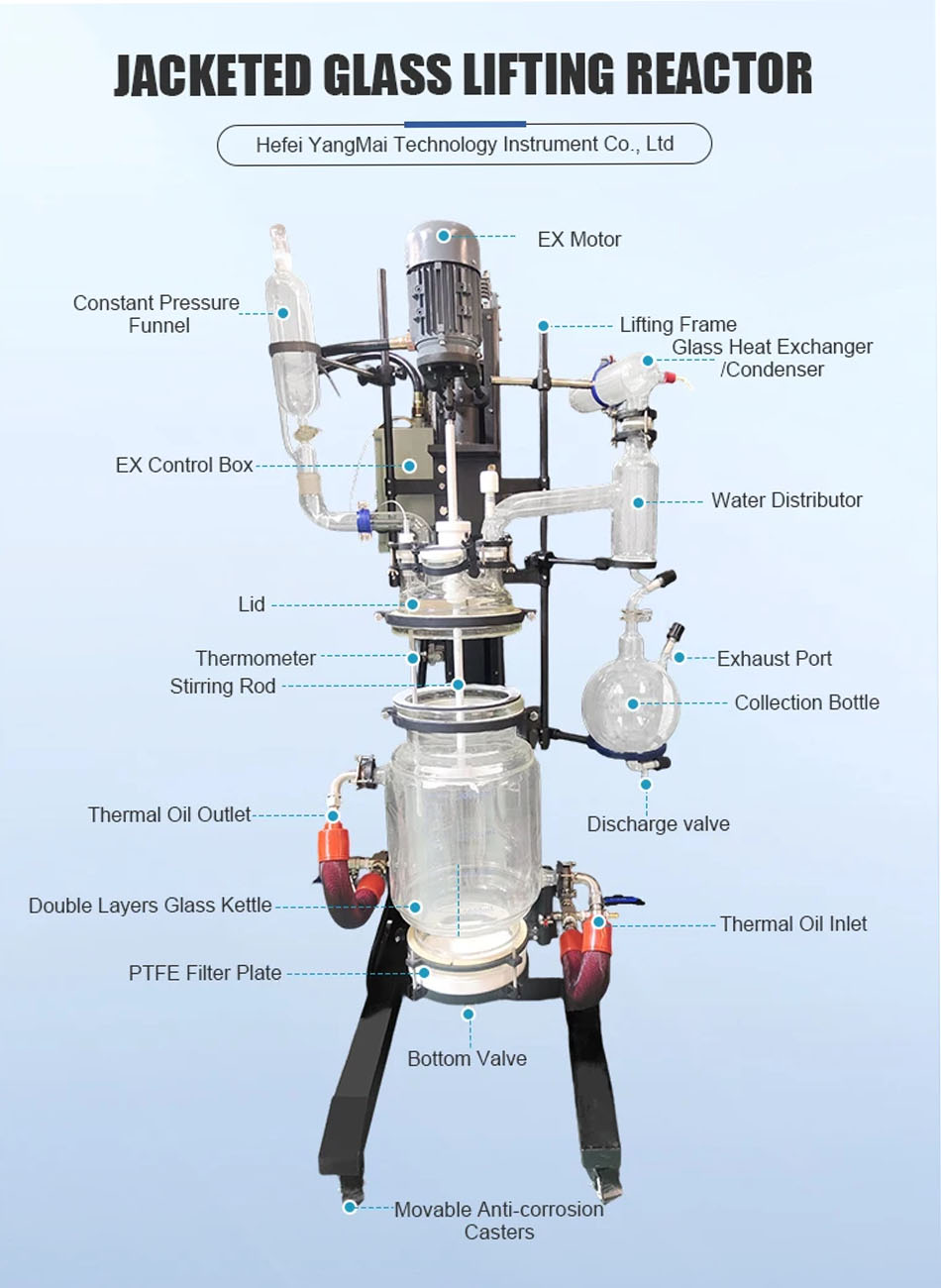

The Lifting Double Layer Glass Reactor is engineered with borosilicate glass and a thermostatic jacket, this lifting reactor ensures efficient heating, cooling, and easy cleaning in pharmaceutical or chemical labs.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Stable Temperature Control
Heavy-Duty Steel Frame
Accept customized design
Model :
YMLGR-20EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The Lifting Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd is designed for precise laboratory chemical reactions under controlled temperature conditions. The adjustable lifting structure improves operation safety and simplifies material charging and vessel cleaning.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1. Height Adjustable Reactor Design
The lifting mechanism allows flexible vessel positioning, improving safety and accessibility during operation and cleaning.
2. Double Jacket Structure For Thermal Control
The jacketed chamber supports circulating heating or cooling media for accurate reaction temperature management.
3. Optimized For Laboratory Scale Processing
A 20L working volume makes the reactor suitable for research, formulation trials, and pilot reaction verification.
4. Vacuum and Pressure Compatibility
Supports both vacuum and low-pressure operations, suitable for distillation, reflux, crystallization, and solvent recovery processes.
5. Clear Glass Construction For Process Observation
Transparent glass enables real-time monitoring of reaction behavior, reflux status, and phase changes.
6. Compatible With Multiple Reaction Processes
Suitable for organic synthesis, condensation, esterification, reflux distillation, and pharmaceutical intermediate reactions.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
