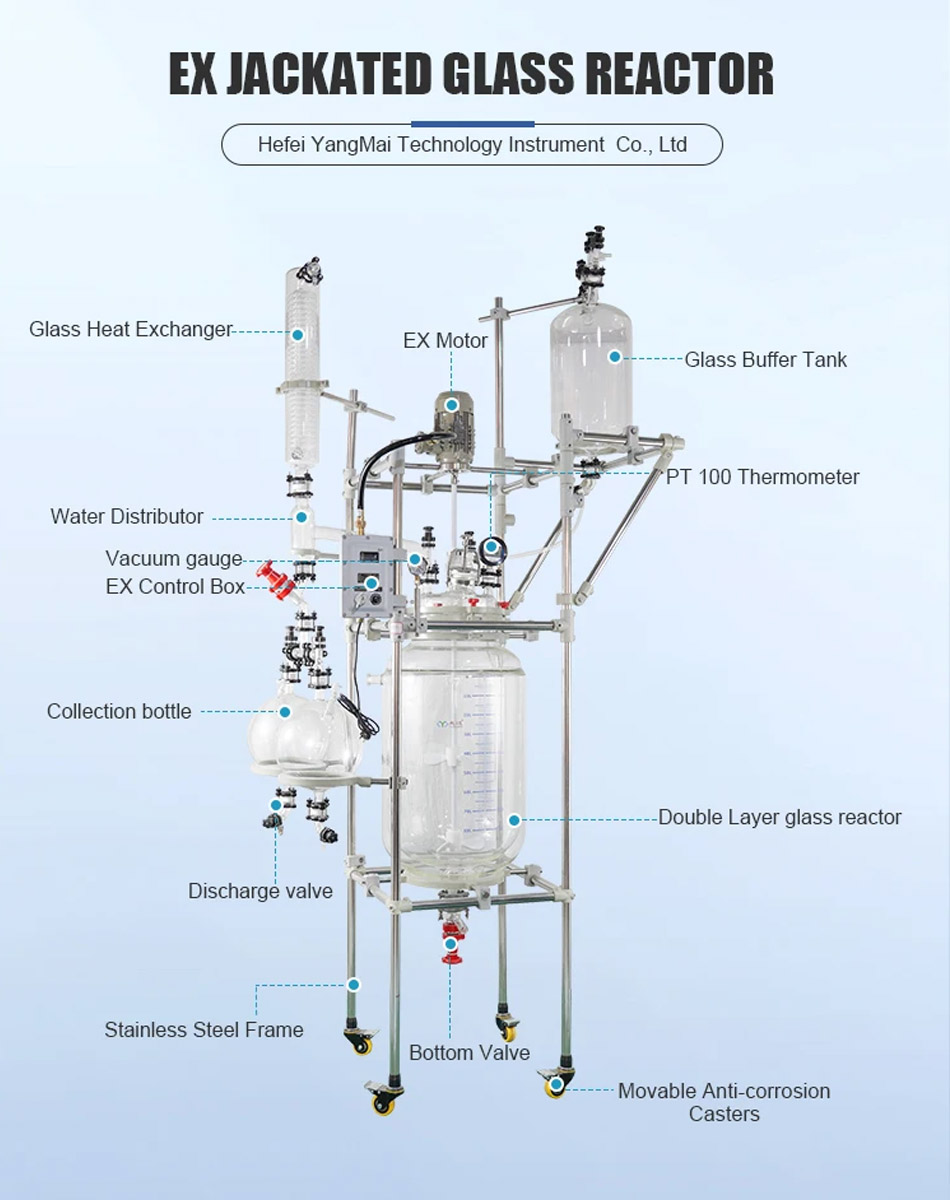

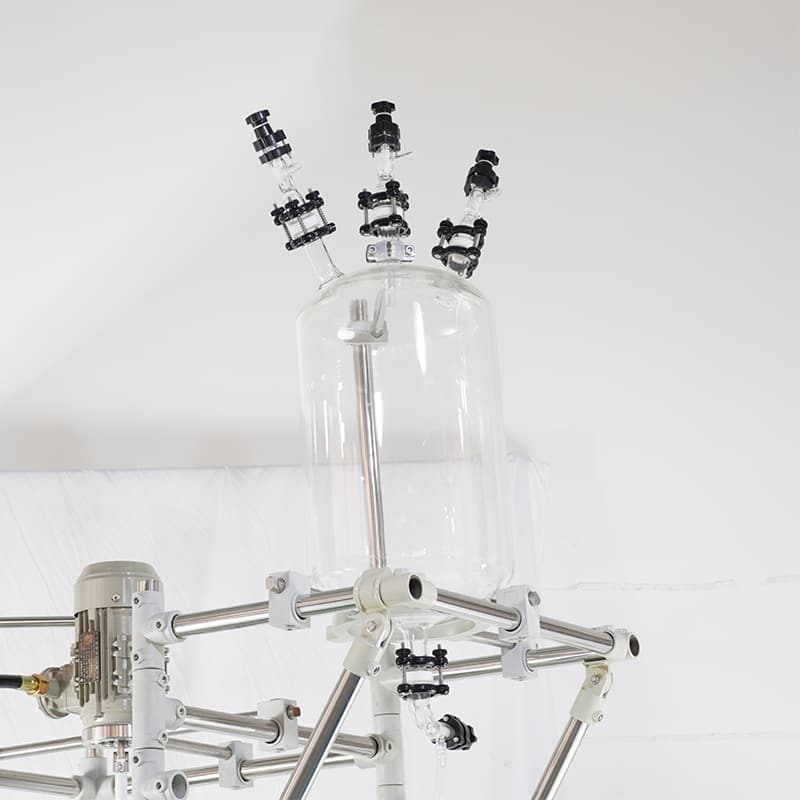

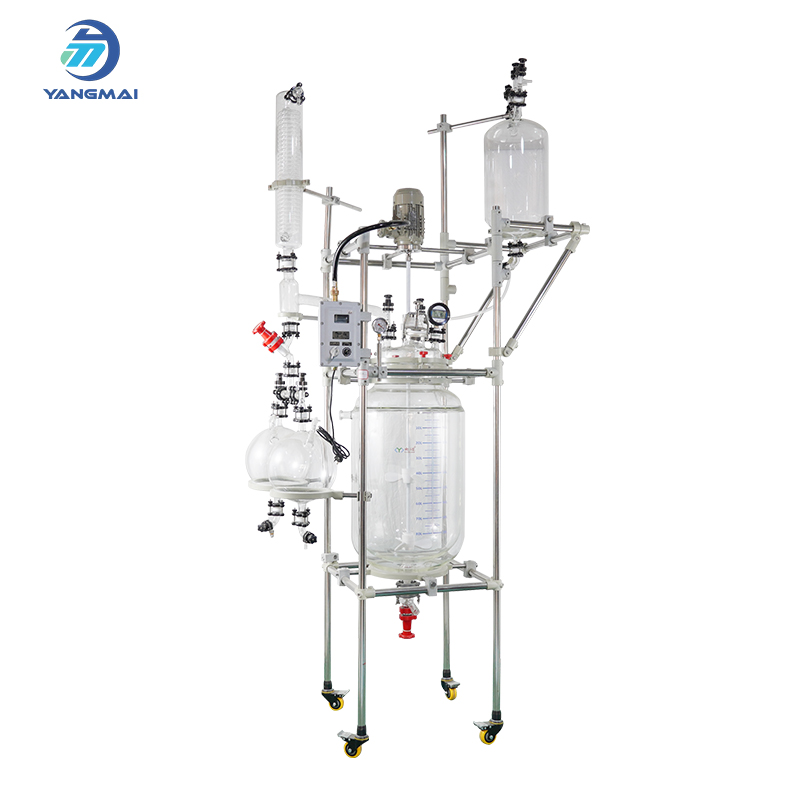

100L double jacketed glass reactor is designed for precise batch reactions under controlled temperature conditions. The integrated 5L buffer tank ensures stable feeding and smooth pressure balance during operation.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMCGR-100EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 100L Customized Jacketed Glass Reactor from Hefei Yangmai Technology Instrument Co., Ltd. is engineered for chemical synthesis, crystallization, and solvent-based reactions requiring accurate thermal control. Paired with a 5L buffer tank, the system enables continuous or stepwise material feeding while maintaining stable reaction pressure and flow, improving process consistency and safety.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
High Borosilicate Glass Construction – Offers excellent chemical resistance and thermal shock durability.
100L Working Volume – Suitable for medium-scale laboratory reactions and experiments.
Full Visual Reaction Monitoring – Transparent vessel allows real-time observation of reaction behavior.
Vacuum And Reflux Compatible Structure – Supports distillation, solvent recovery, and condensation reactions.
Durable Stainless Steel Frame – Provides stable support and long-term durability.
Designed For Pilot And Laboratory Scale Use – Ideal for pharmaceutical intermediates and fine chemical development.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
