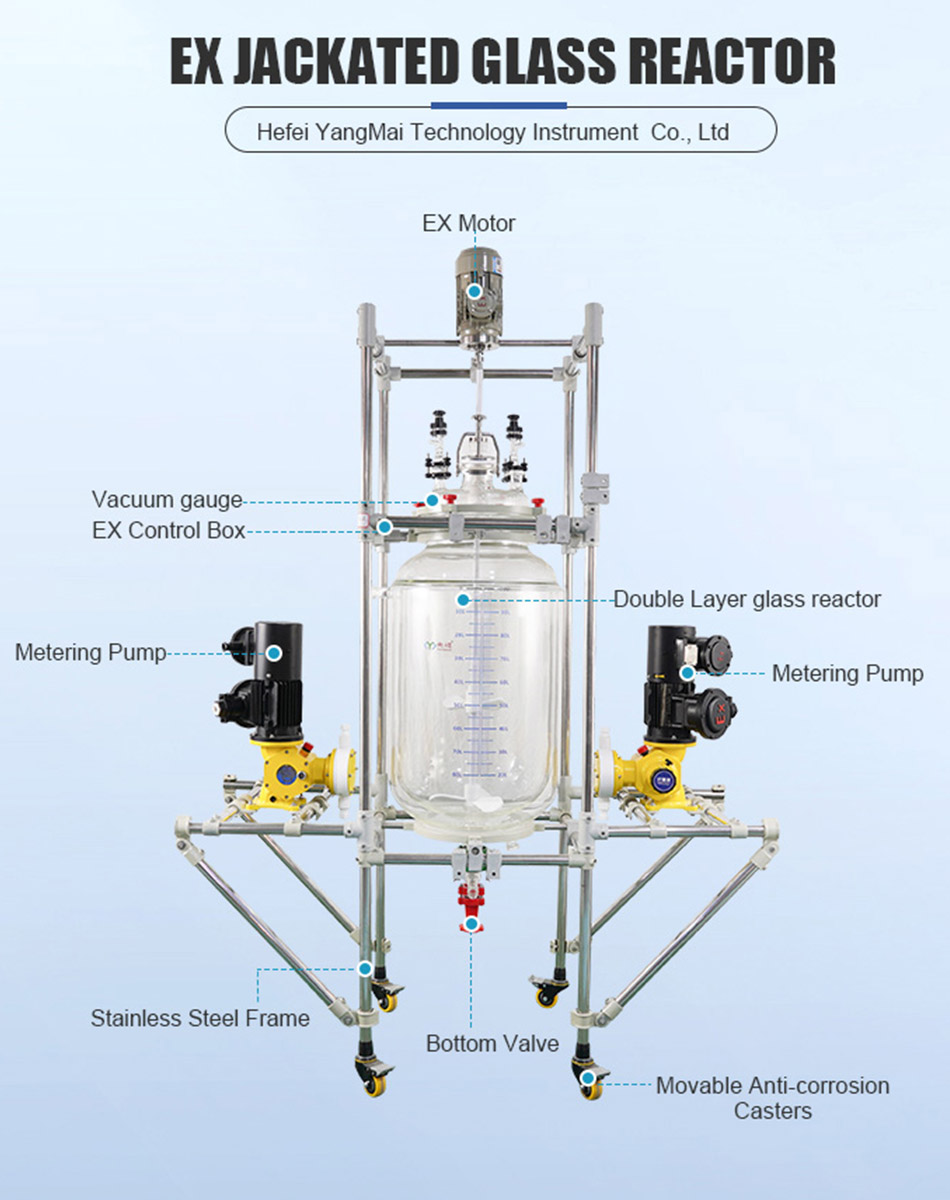

100L Double Layer Glass Reactor with Dosing Pump for Chemical Reactions

The 100L Custom Jacketed Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd. is designed for continuous distillation, controlled crystallization, and temperature-sensitive synthesis. Equipped with high-torque stirring and a sealed reaction system, it supports both vacuum and positive-pressure applications, making it suitable for batch processing, pilot-scale experiments, and semi-industrial formulation.

The high-quality borosilicate glass jacket ensures efficient and uniform temperature control throughout the reaction process, helping maintain stable operating conditions and minimize temperature fluctuations. With excellent chemical resistance, the reactor is suitable for processing a wide variety of solvents, reagents, and chemical formulation

1. 3.3 Borosilicate Glass

Made from high-quality 3.3 borosilicate glass, offering excellent chemical resistance and good thermal shock performance.

2. Efficient Temperature Control

The jacketed structure supports uniform heating and cooling through circulating thermal media.

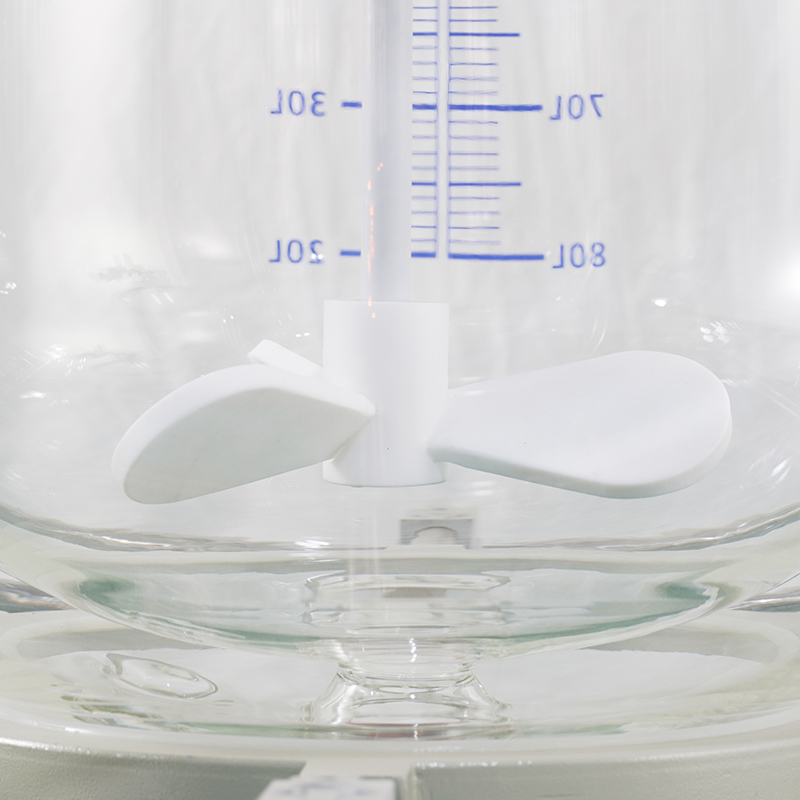

3. Stable Agitation

A variable-speed stirring system provides consistent mixing for different reaction requirements.

4. Vacuum Operation

The sealed reactor configuration can be used for vacuum applications and controlled reaction environments.

5. Clear Reaction Observation

The transparent glass vessel allows operators to directly monitor the reaction process.

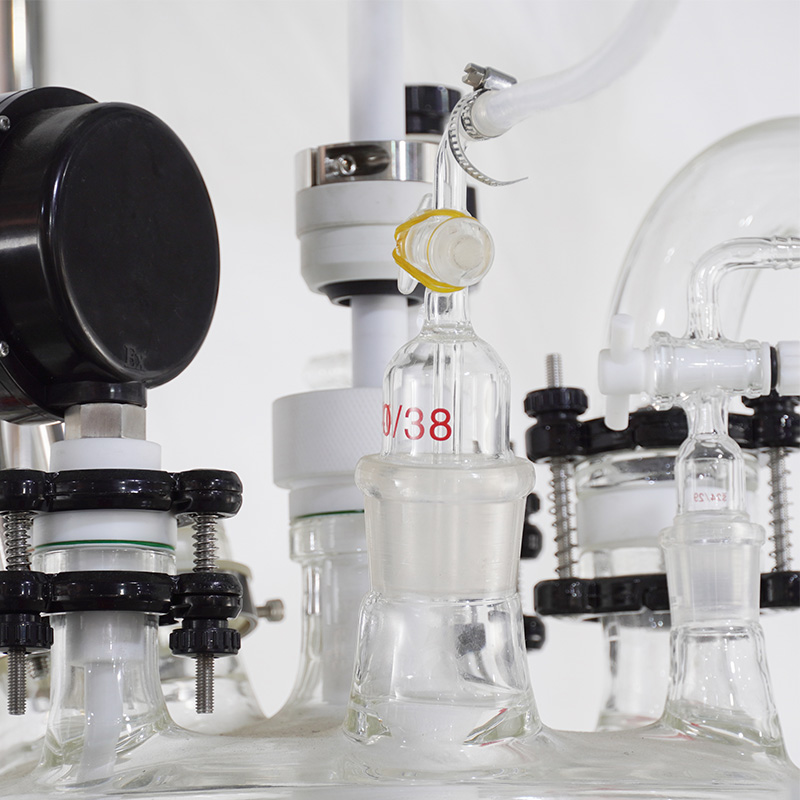

6. Flexible Configuration

Ports, condensers, valves, stirring components, and other accessories can be configured according to process requirements.

FAQ

1. What material is the glass reactor made of?

Our glass reactors are made of high-quality 3.3 borosilicate glass, offering good chemical resistance and thermal shock resistance.

2. What is the working temperature range?

The standard temperature range is typically -100°C to +300°C, depending on the reactor configuration and heating/cooling system.

3. Can the glass reactor operate under vacuum?

Yes. The reactor can be designed for vacuum operation, typically up to approximately -0.098 MPa, depending on the model and configuration.

4. Can you customize the reactor?

Yes. We provide OEM and customized solutions, including reactor volume, ports, condenser, valves, stirring system, lifting structure, insulation and temperature-control configuration.

5. What sizes of glass reactors do you offer?

We offer various capacities from laboratory scale to larger pilot-scale systems, including 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L and 150L configurations.

6. Can the reactor be used with corrosive chemicals?

The borosilicate glass vessel provides good resistance to many acids, alkalis and organic solvents. The final compatibility should be confirmed according to the specific chemical and operating conditions.
