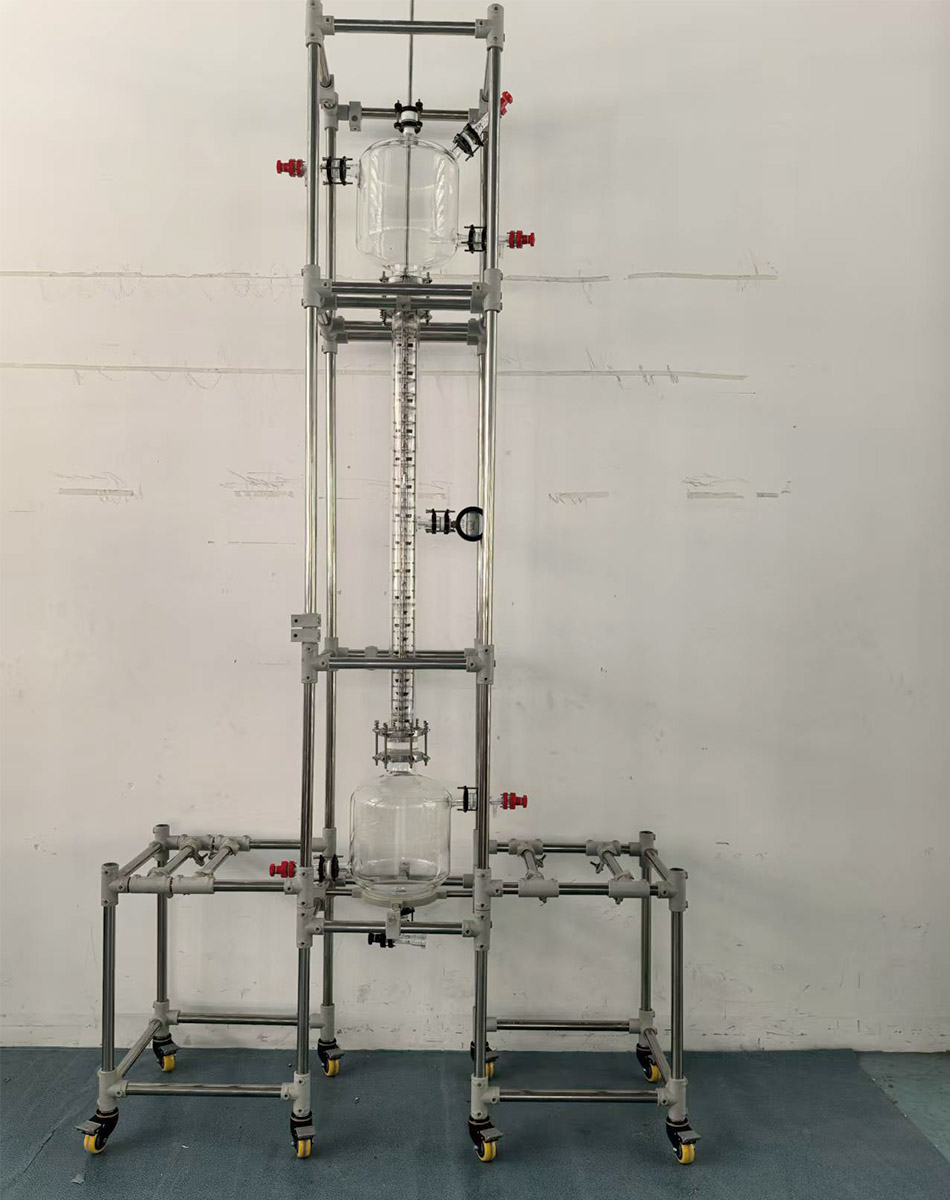

This glass rotating disc extraction column is designed for continuous liquid-liquid extraction processes requiring efficient phase contact and enhanced mass transfer. The rotating disc structure promotes controlled dispersion and phase renewal, improving separation efficiency during solvent extraction and phase transfer operations.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMET-50EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 20L Jacketed Glass Reactor System from Hefei Yangmai Technology Instrument Co., Ltd. is designed for versatile laboratory applications, providing precise heating and cooling through its integrated high-low temperature circulator. Made from durable, chemical-resistant borosilicate glass, it ensures safe and efficient reactions under various laboratory conditions. Ideal for chemical synthesis, pharmaceutical research, and experimental studies, the reactor supports controlled stirring, vacuum operation, and accurate temperature management, making it a reliable choice for modern laboratories seeking high-performance reaction equipment.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |

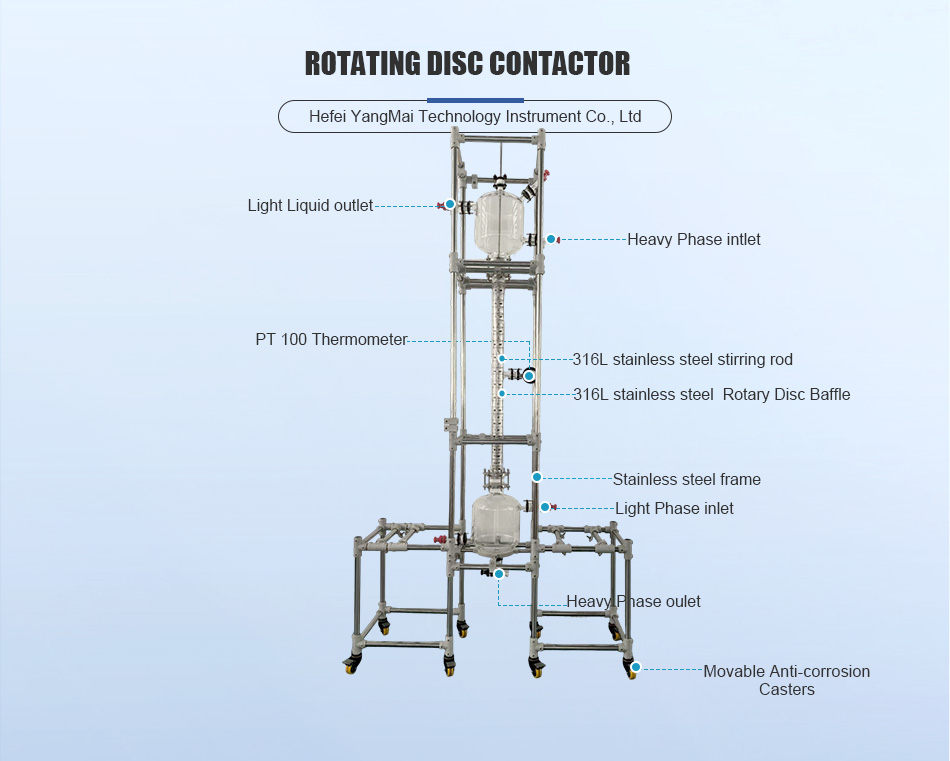

Rotating Disc Mass Transfer Design
The rotating disc structure enhances phase dispersion and renewal, significantly improving mass transfer efficiency during liquid-liquid extraction.
Continuous Liquid-Liquid Extraction Operation
Designed for continuous extraction processes, enabling stable and repeatable solvent separation under controlled flow conditions.
High Transparency Glass Construction
Manufactured from high borosilicate glass, allowing full visual observation of phase behavior, dispersion, and separation dynamics.
Efficient Stirring System
Suitable for acidic, alkaline, and organic solvent systems commonly used in chemical processing and hydrometallurgy.
Controlled Phase Contact Time
Disc rotation speed and column configuration allow precise control of contact time between liquid phases.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
