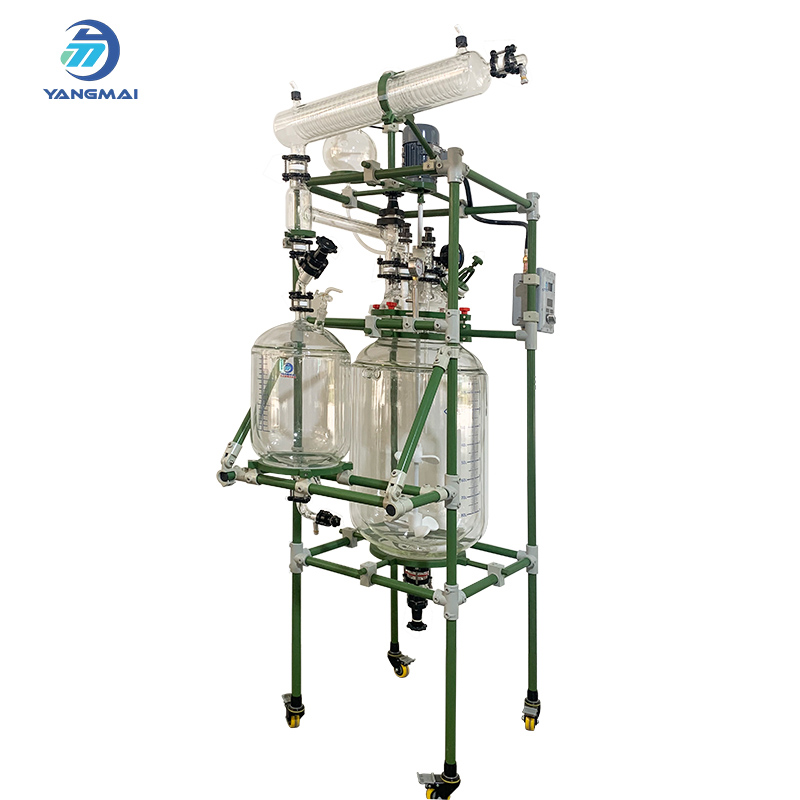

The 100L jacketed glass reactor is designed for precise temperature-controlled chemical synthesis. The corrosion-resistant frame ensures long-term stability in aggressive processing environments.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMCGR-100EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 100L Customized Jacketed Glass Reactor from Hefei Yangmai Technology Instrument Co., Ltd. is engineered for chemical synthesis, crystallization, and solvent-based reactions requiring accurate thermal control. Paired with a 5L buffer tank, the system enables continuous or stepwise material feeding while maintaining stable reaction pressure and flow, improving process consistency and safety.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |

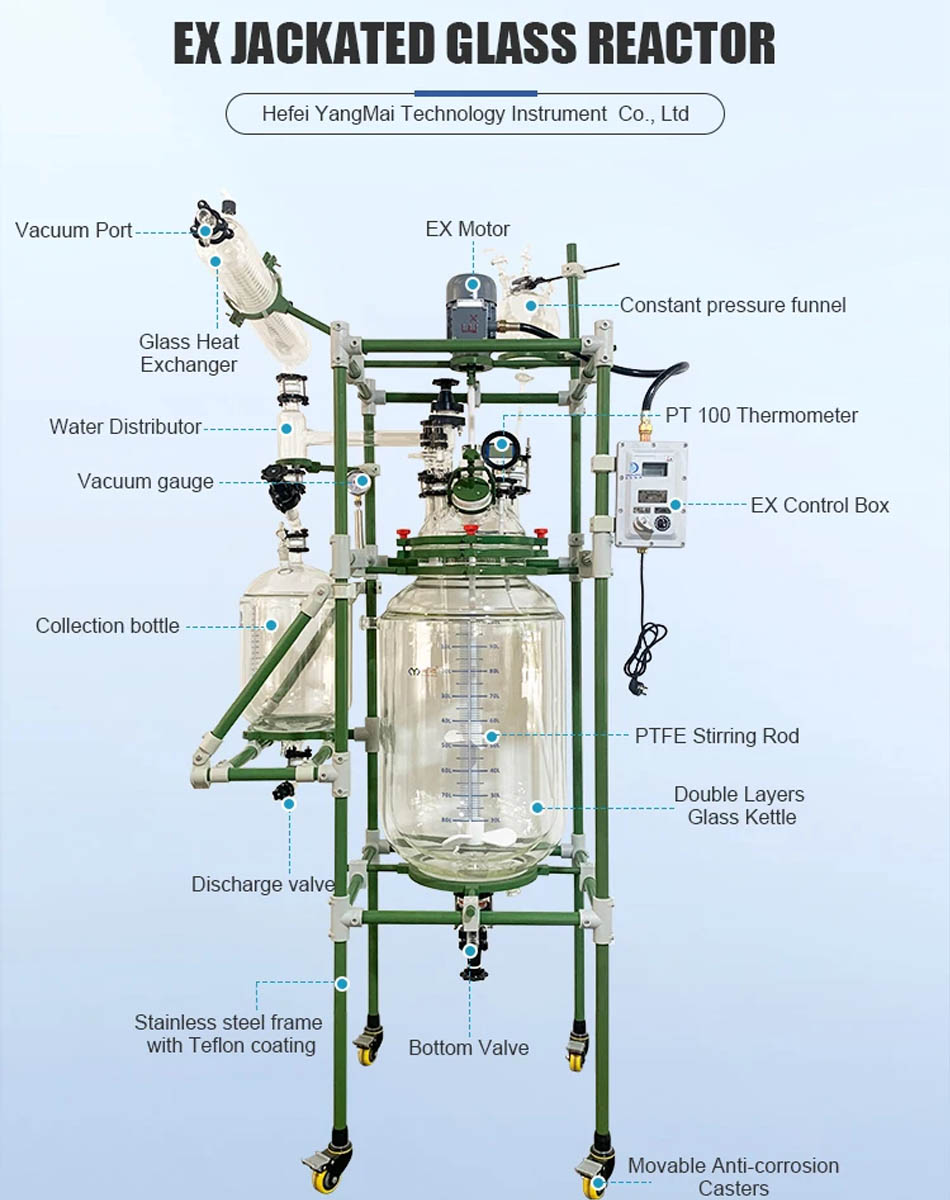

100L Double Jacketed Glass Vessel – Provides uniform heating and cooling for precise chemical reactions.
Corrosion-Resistant Protective Frame – Ensures safe and durable operation under harsh chemical environments.
Full Visual Reaction Monitoring – Transparent vessel allows real-time observation of reaction behavior.
High Borosilicate Glass Construction – Resistant to acid, alkali, and organic solvents, with excellent thermal shock resistance.
Integrated Pilot-Scale Design – Suitable for laboratory to small-scale production and process development.
Full Visual Monitoring – Transparent vessel allows real-time observation of reactions.
Easy Cleaning And Maintenance - Smooth internal surface minimizes material residue and simplifies sterilization.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
