Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMGR-50EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

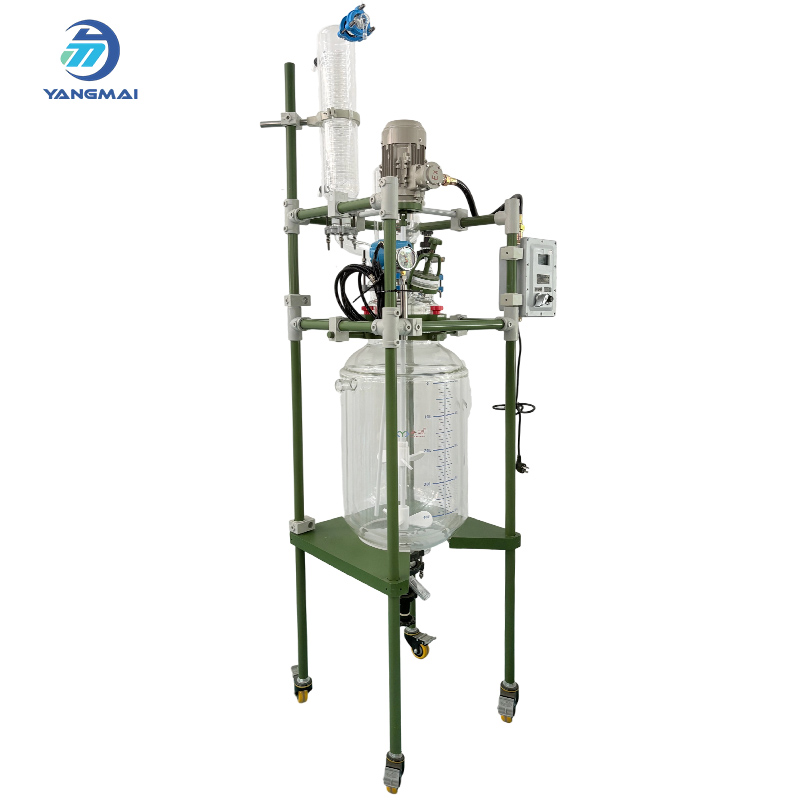

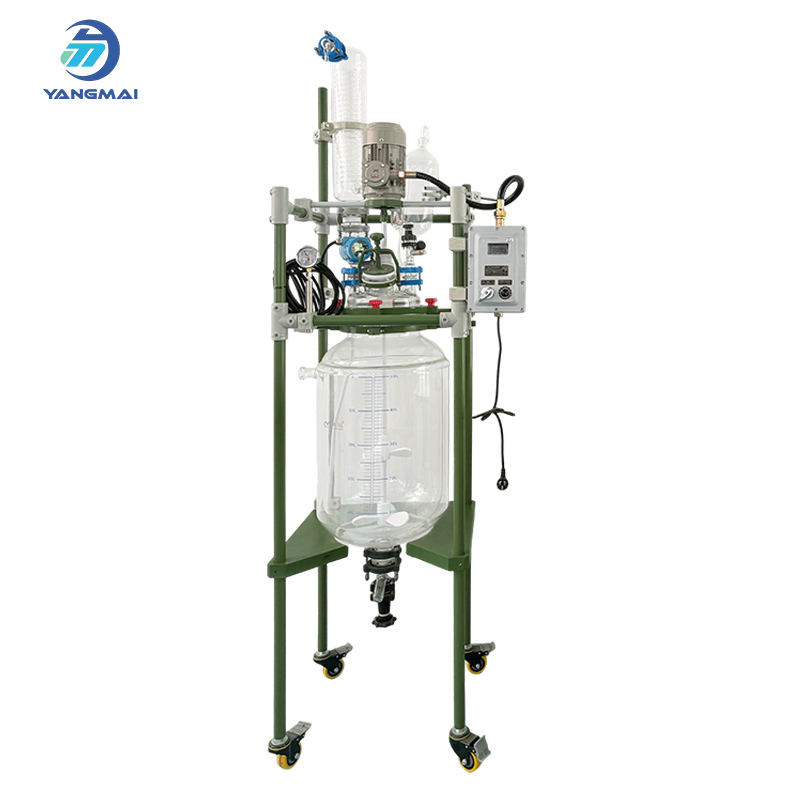

The 50L double-layer glass reactor by Hefei YangMai Technology Instrument Co., Ltd. features a high-grade borosilicate vessel with a green PTFE-coated interior and jacket, offering excellent resistance to strong acids, alkalis, and organic solvents. The fluoropolymer layer improves chemical durability, reduces contamination, and extends service life. Its jacketed design supports precise temperature control from -100°C to +300°C via circulating fluids. Engineered for demanding lab and pilot-scale chemical processes, it includes a vacuum-sealed lid, modular port options, digital control panel, and heavy-duty frame. Perfect for synthesis, crystallization, extraction, and pharmaceutical applications in corrosive environments.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.50L Double-Layer Reactor Vessel: Offers large-capacity reactions with efficient thermal circulation via jacketed design.
2.Green PTFE-Coated Interior Surface: Enhanced chemical resistance against strong acids, alkalis, and reactive solvents.
3.High-Quality Borosilicate Glass: Durable, pressure-resistant material with excellent visibility for reaction observation.
4.Wide Temperature Range Compatibility: Supports fluid circulation from -100°C to +300°C for precise thermal control.
5.Anti-Stick, Easy-To-Clean Lining: PTFE coating prevents buildup and simplifies post-reaction cleanup
6.Stable and Corrosion-Resistant Frame: Reinforced structure with anti-corrosive stainless steel support and lockable wheels.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
