100L Explosion-proof Jacketed Glass Reactor PTFE Coated Reactor Lab Reactor

Feature:

Acid and alkali resistant(Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature)

Wide temperature range: -105℃~300℃

Transparent and easy to observe

Accept customized design

Product Parameters
  • Model :

    YMGR-100EX
  • Order(MOQ) :

    1 Set
  • Lead Time :

    7~15 working days
  • OEM :

    Accepted
  • Power Supply :

    220V/50HZ

Pharmaceutical R&D reactor

Hefei YangMai Technology Instrument Co., Ltd. offers high-performance 100L PTFE-Coated Double Layer Glass Reactor s a high-capacity reaction vessel engineered for large-scale laboratory, pharmaceutical, and chemical production applications. Featuring a dual-layer borosilicate glass design with PTFE-coated frame and lid, it offers exceptional corrosion resistance, thermal stability, and long-lasting durability.

Model

Volume(L) Motor power(w) Vaccum degree(Mpa)

Speed

(Ram)

Torque

(Ncm)

Power supply Size(Cm)
YMGR-01 1 40 0.096 50~600 30 220V/50HZ 32*35*80
YMGR-02 2 40 0.096 50~600 30 220V/50HZ 32*35*80
YMGR-05EX 5 180 0.096 50~600 44 220V/50HZ 45*45*110
YMGR-10EX 10 180 0.096 50~600 162 220V/50HZ 50*50*120
YMGR-20EX 20 180 0.096 50~600 162 220V/50HZ 50*50*145
YMGR-30EX 30 180 0.096 50~600 210 220V/50HZ 50*50*160
YMGR-50EX 50 180 0.096 50~600 300 220V/50HZ 60*60*180
YMGR-100EX 100 370 0.096 50~600 400 220V/50HZ 70*70*260
YMGR-150EX 150 750 0.096 50~600 500 220V/50HZ 85*85*290
YMGR-200EX 200 750 0.096 50~600 500 220V/50HZ 90*90*300

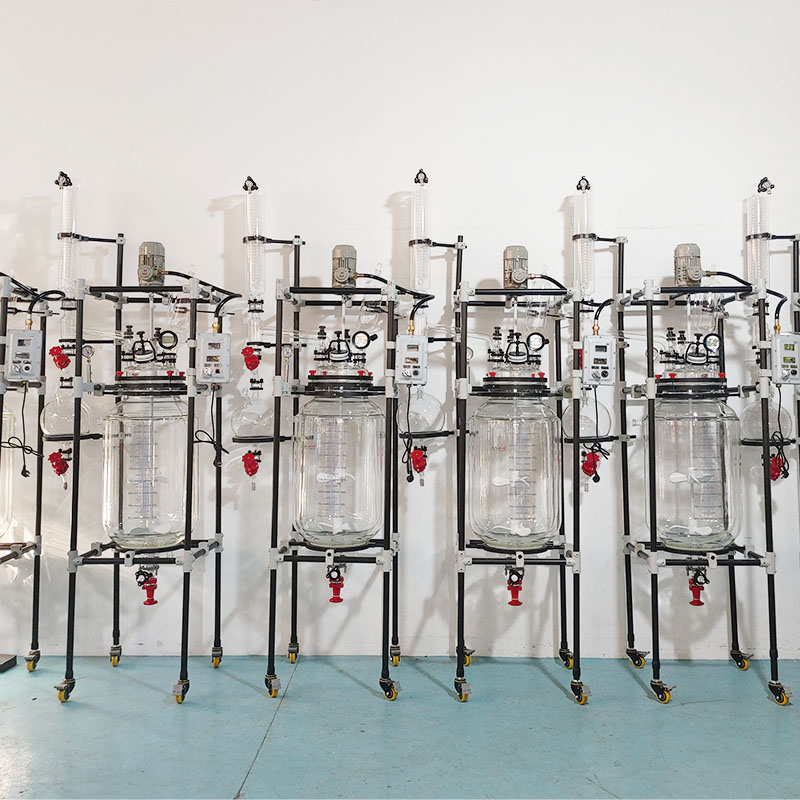

Jacketed glass reactor system

Certificates

Advantage of glass reactor

1.100L Large Capacity – Supports medium to large-scale chemical synthesis and industrial processes.

2.Double Layer Glass Design – Provides effective temperature control with heating/cooling circulation.

3.PTFE-Coated Frame & Lid – Enhances resistance against strong acids, bases, and aggressive solvents.

4.High Borosilicate Glass – Excellent chemical stability and thermal shock resistance.

5.Corrosion Resistant Structure – Long service life in harsh chemical environments.

6.No Dead angle discharge design reducing material waste and simplifying cleaning between batches.

7.Wide compatibility with auxiliary systems Seamlessly integrates with chillers, heaters, vacuum pumps,PH meter,ultrasound and so on.

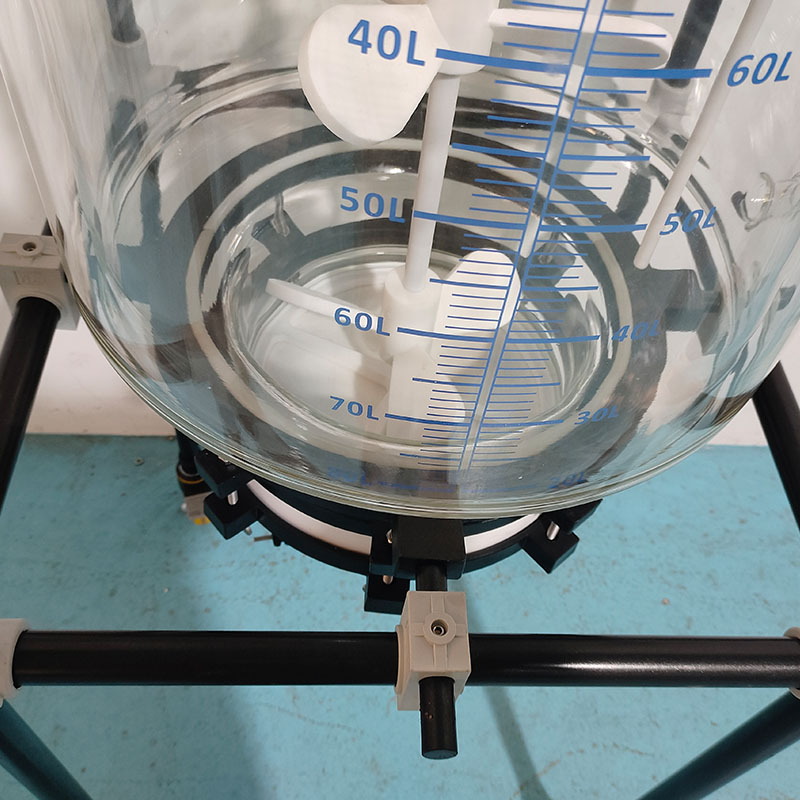

Vacuum-compatible reactor vessel

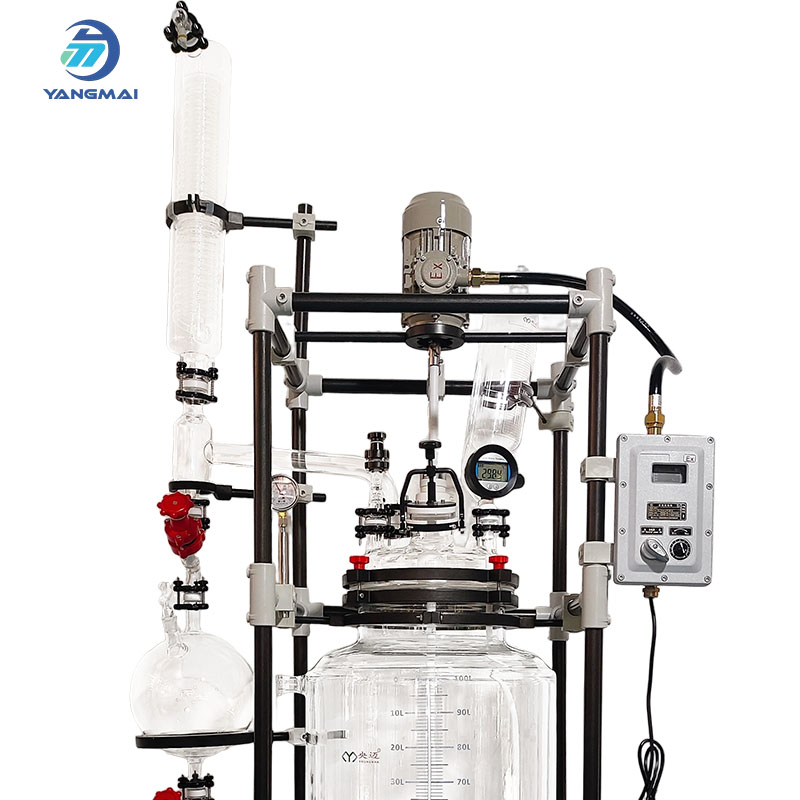

Lab-scale chemical reactor

Reflux and distillation apparatus

Package of glass reactor

Modular reactor assembly

FAQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4.  Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
