Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
PTFE Sealing System
Accept customized design
Transparent and easy to observe
Model :
YMGR-20EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

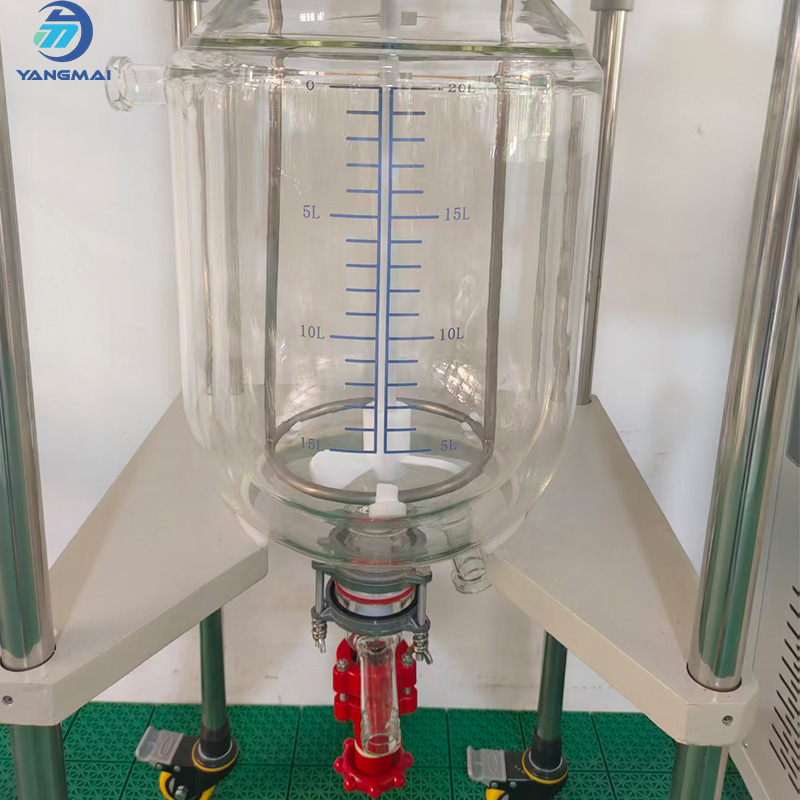

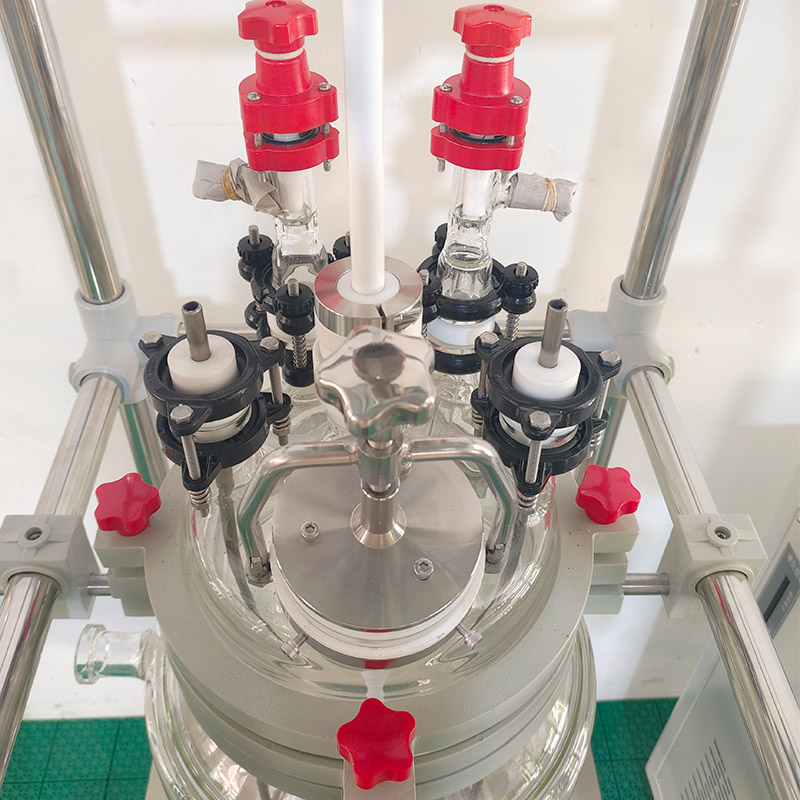

Hefei YangMai Technology Instrument Co., Ltd. offers 20L Double-Layer Glass Reactor precise chemical synthesis, heating, and mixing applications. Built with high borosilicate glass 3.3, it offers excellent thermal stability and chemical resistance. The double-layer jacket allows accurate temperature control for reactions such as distillation, crystallization, and polymerization. Its compact design and smooth stirring system ensure efficient operation for laboratory or pilot-scale production. Ideal for chemical, pharmaceutical, and research applications requiring controlled reaction environments.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
Nitrogen Inlet Design: Enables inert gas protection to prevent oxidation during sensitive reactions.
High Borosilicate Glass 3.3: Excellent chemical resistance and thermal stability up to 300°C.
Double-Layer Jacket: Supports precise temperature control for both heating and cooling.
PTFE Sealing System: Ensures reliable vacuum performance and long service life.
Adjustable Stirring Speed: Smooth operation with variable frequency motor for consistent mixing.
Easy Observation: Transparent body allows real-time monitoring of reaction progress.
Modular Design: Compatible with condensers, vacuum pumps, and thermostatic circulators.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
