Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMGR-100EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

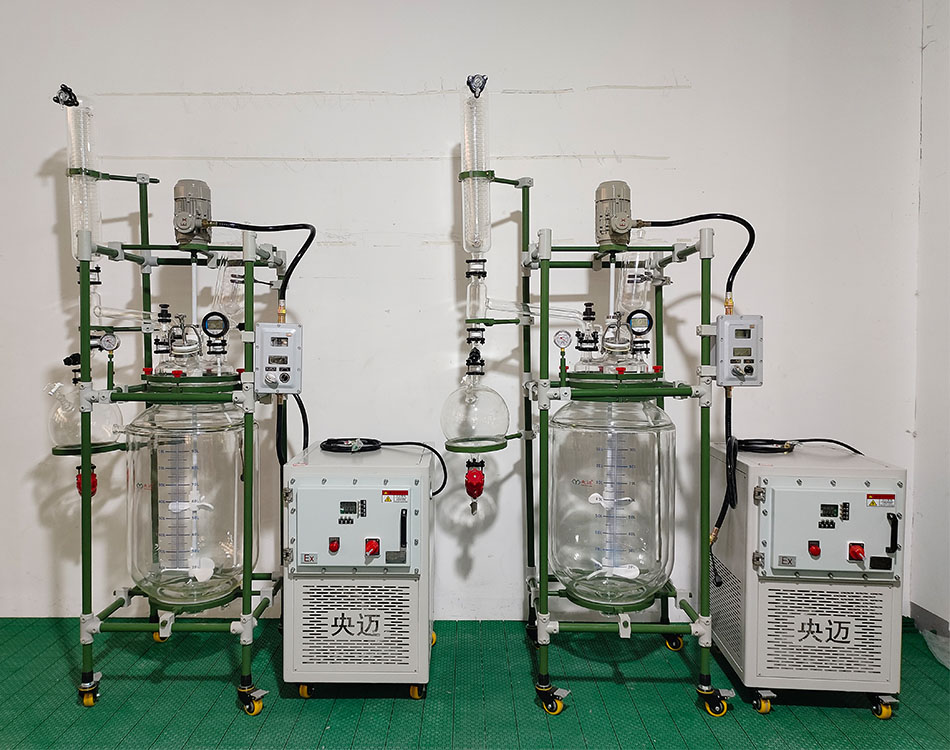

The 100L PTFE double-layer glass reactor by Hefei YangMai Technology Instrument Co., Ltd. is designed for advanced laboratory and industrial-scale chemical processes. Constructed from high borosilicate glass with a fully Teflon-sprayed frame, it offers exceptional resistance to acids, alkalis, and organic solvents. The jacketed structure allows precise temperature control for heating or cooling, supporting complex reactions such as polymerization, crystallization, and distillation. Ideal for pharmaceutical development and fine chemical research, it ensures safe and stable operation even under vacuum or high temperature conditions.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1. Full PTFE Coated Frame – The entire support structure is coated with Teflon to provide superior corrosion resistance against acids, alkalis, and organic solvents.
2. High Borosilicate Glass Vessel – Made from durable G3.3 borosilicate glass with excellent chemical and thermal stability for long-term laboratory use.
3. Double-Layer Jacketed Design – Enables precise temperature control for heating, cooling, and maintaining reaction stability.
4. Explosion-Proof Construction – Designed for safe operation under vacuum and pressure, ensuring reliability in chemical and pharmaceutical production.
5. Efficient Mixing System – Equipped with a powerful motor and PTFE stirring paddle to maintain uniform reaction and prevent sedimentation.
6. Vacuum Sealing Technology – Advanced PTFE sealing ensures leak-free operation and high vacuum retention during reactions.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
