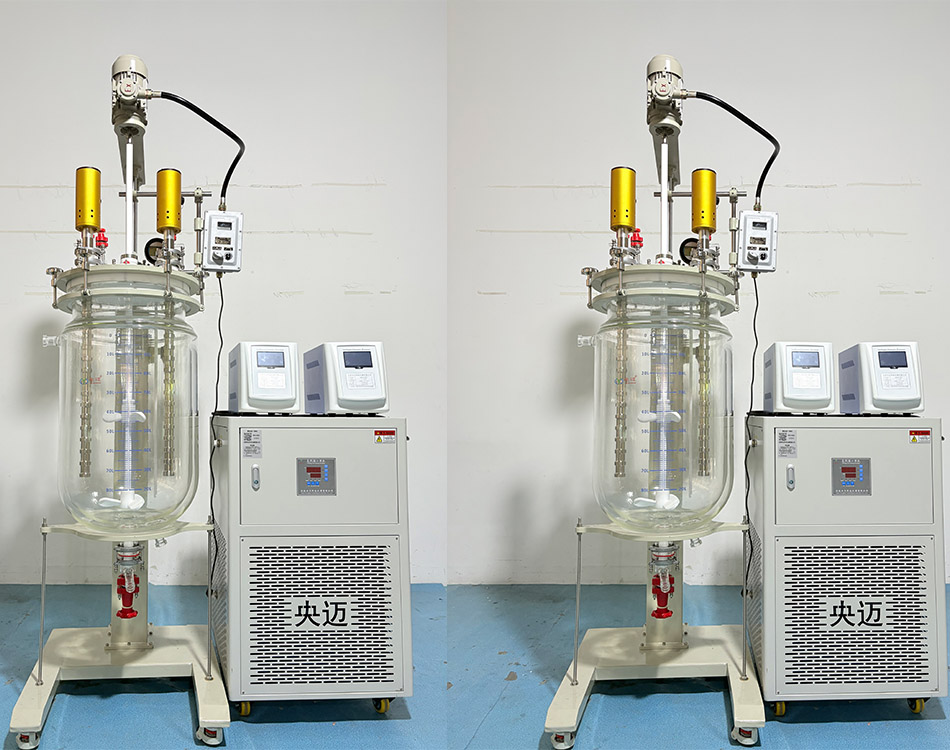

100L jacketed glass reactor with integrates ultrasonic disruptor and precise heating-cooling circulator, ideal for crystallization and hydrolysis.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMUGR-100EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 100L ultrasonic glass reactor with integrates ultrasonic disruptor and precise heating-cooling circulator by Hefei Yangmai Technology Instrument Co., Ltd. is widely applied in crystallization, esterification, and nanoparticle synthesis, ensuring stable performance for pharmaceutical and chemical industries.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.Explosion-Proof Safety Design – Equipped with an explosion-proof motor and sealed electrical system to ensure safe operation.
2. Double-Layer Borosilicate Glass Construction – Provides excellent chemical resistance, durability, and visibility for monitoring reaction progress.
3. Integrated Ultrasonic Homogenizer – Enhances particle dispersion, emulsification, and nanoparticle synthesis efficiency in chemical and pharmaceutical processes.
4. Wide Temperature Control Range – High-low temperature circulating machine allows precise control from -30°C to +200°C, supporting diverse reaction conditions.
5. Efficient Heat Exchange Jacket – Double-layer design ensures rapid heating and cooling with uniform temperature distribution.
6. Large-Scale Reaction Capacity – 100L volume suitable for pilot plant studies, scale-up experiments, and pharmaceutical intermediate production.
7. Corrosion-Resistant Components – Stainless steel frame, and durable valves guarantee long service life with aggressive chemicals.
8. Multi-Functional Reaction Support – Ideal for crystallization, esterification, polymerization, hydrolysis, and other chemical synthesis routes.
9. Mobility and Easy Maintenance – Equipped with corrosion-resistant casters and modular design for convenient relocation, cleaning, and component replacement.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
