50L Ultrasonic Glass Reactor for Lab Extraction and Organic Synthesis Applications

50L glass reactor comes integrated with an ultrasonic probe for efficient chemical extraction and dispersion. Ideal for pharmaceutical R&D, organic synthesis, and cell disruption experiments.

Feature:

Acid and alkali resistant(Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature)

Wide temperature range: -100℃~300℃

Transparent and easy to observe

Accept customized design

Product Parameters
  • Model :

    YMUGR-50EX
  • Order(MOQ) :

    1 Set
  • Lead Time :

    7~15 working days
  • OEM :

    Accepted
  • Power Supply :

    220V/50HZ

Pharmaceutical R&D reactor

The 50L ultrasonic glass reactor by Hefei Yangmai Technology Instrument Co., Ltd. integrates a high-efficiency sonication system with a double-layer borosilicate reactor body. It provides simultaneous temperature control and ultrasonic cavitation, enhancing mass transfer and extraction efficiency in chemical, pharmaceutical, and biological experiments. Its modular design allows flexibility for pilot plant trials and lab-scale production.

Model

Volume(L) Motor power(w) Vaccum degree(Mpa)

Speed

(Ram)

Torque

(Ncm)

Power supply Size(Cm)
YMGR-01 1 40 0.096 50~600 30 220V/50HZ 32*35*80
YMGR-02 2 40 0.096 50~600 30 220V/50HZ 32*35*80
YMGR-05EX 5 180 0.096 50~600 44 220V/50HZ 45*45*110
YMGR-10EX 10 180 0.096 50~600 162 220V/50HZ 50*50*120
YMGR-20EX 20 180 0.096 50~600 162 220V/50HZ 50*50*145
YMGR-30EX 30 180 0.096 50~600 210 220V/50HZ 50*50*160
YMGR-50EX 50 180 0.096 50~600 300 220V/50HZ 60*60*180
YMGR-100EX 100 370 0.096 50~600 400 220V/50HZ 70*70*260
YMGR-150EX 150 750 0.096 50~600 500 220V/50HZ 85*85*290
YMGR-200EX 200 750 0.096 50~600 500 220V/50HZ 90*90*300

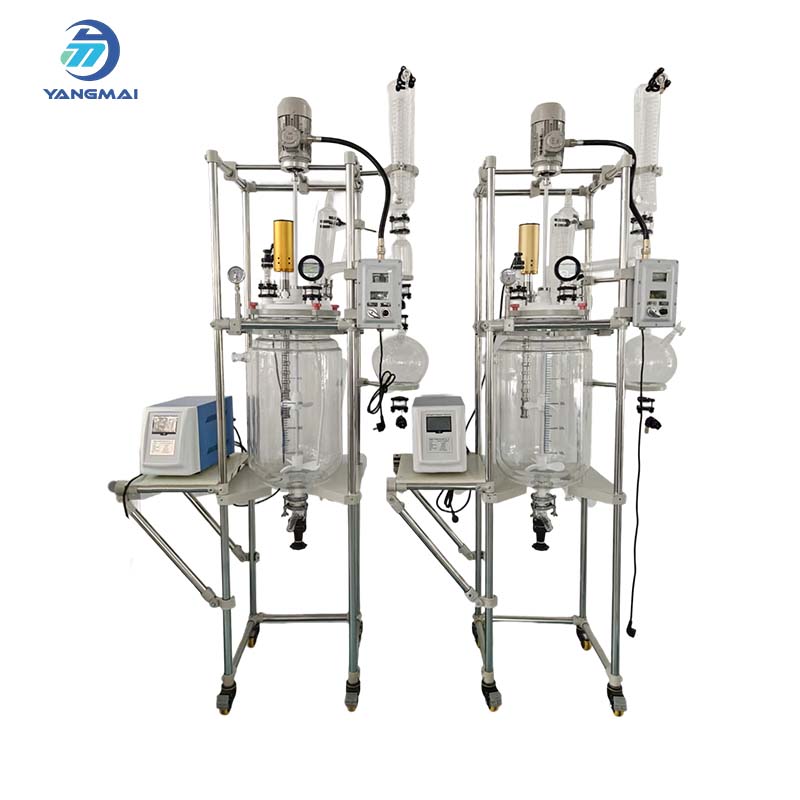

Jacketed glass reactor system



Advantage of glass reactor

1.Integrated Ultrasonic System

Built-in ultrasonic homogenizer enhances mixing, emulsification, and cell disruption during reactions.

2.High Borosilicate Glass Construction

Made from 3.3 borosilicate glass for superior thermal shock resistance and chemical compatibility.

3.Double-Layer Jacketed Design

Allows precise temperature control with circulating heating/cooling liquids.

4.Large Volume Capacity

50-liter working capacity suitable for pilot scale experiments and intermediate-scale synthesis.

5.Efficient Heat Transfer

Optimized for uniform thermal distribution to maintain stable reaction conditions.

6.Adjustable Ultrasonic Parameters

Frequency and power are adjustable for different sample types and reaction needs.

7.Vacuum and Pressure Support

Operates under vacuum or positive pressure for enhanced safety and reaction control.

Lab-scale chemical reactor

Reflux and distillation apparatus

Package of glass reactor

Modular reactor assembly



RFQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4.  Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
