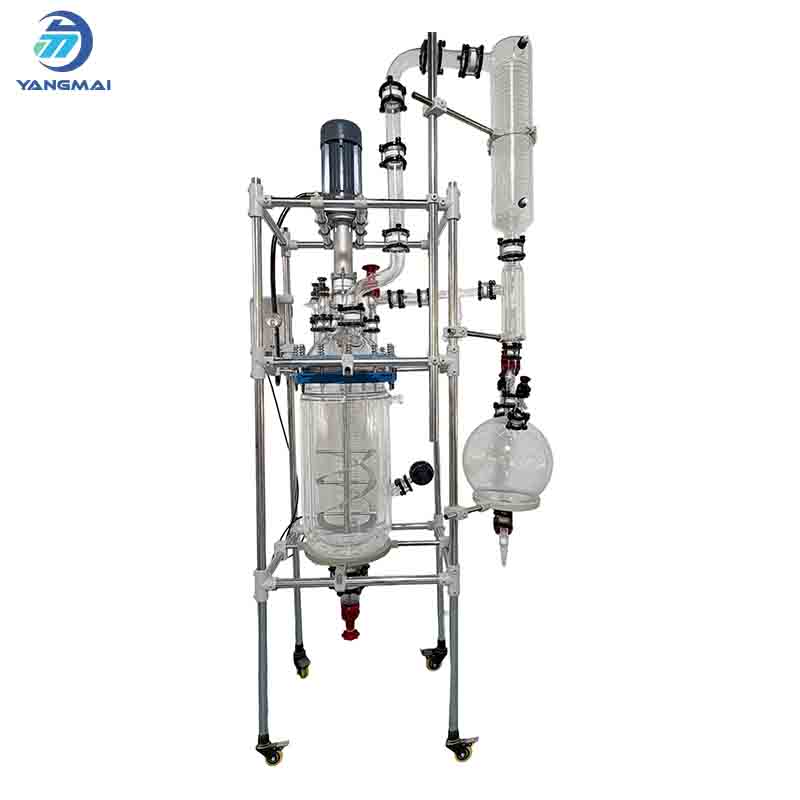

40L Glass Reactor for Chemical Synthesis in Laboratory and Pilot Scale Test

Name: 40L Glass Reactor for Chemical Synthesis in Laboratory and Pilot Scale Test
Availability: InStock

40L Jacketed Glass Reactor is a versatile piece of equipment widely used in chemical, pharmaceutical, food, and biotech industries.

Feature:

Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）

Wide temperature range: -105℃~300℃

Transparent and easy to observe

Accept customized design

Product Parameters

Model :
YMGR-40EX
Order(MOQ) :
1 Set
Lead Time :
7~15 working days
OEM :
Accepted
Power Supply :
220V/50HZ

Product Details

Pharmaceutical R&D reactor

The 40L Jacketed Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd. is engineered for chemical synthesis, process development, and pilot-scale experiments. Equipped with a corrosion-resistant stainless steel stirrer, it ensures stable mixing and precise reaction control under various conditions. The jacketed glass design allows efficient heating and cooling, making it suitable for pharmaceutical R&D, organic synthesis, and scale-up production.

Model	Volume(L)	Motor power（w）	Vaccum degree(Mpa)	Speed (Ram)	Torque (Ncm)	Power supply	Size(Cm)
YMGR-01	1	40	0.096	50~600	30	220V/50HZ	323580
YMGR-02	2	40	0.096	50~600	30	220V/50HZ	323580
YMGR-05EX	5	180	0.096	50~600	44	220V/50HZ	4545110
YMGR-10EX	10	180	0.096	50~600	162	220V/50HZ	5050120
YMGR-20EX	20	180	0.096	50~600	162	220V/50HZ	5050145
YMGR-30EX	30	180	0.096	50~600	210	220V/50HZ	5050160
YMGR-50EX	50	180	0.096	50~600	300	220V/50HZ	6060180
YMGR-100EX	100	370	0.096	50~600	400	220V/50HZ	7070260
YMGR-150EX	150	750	0.096	50~600	500	220V/50HZ	8585290
YMGR-200EX	200	750	0.096	50~600	500	220V/50HZ	9090300

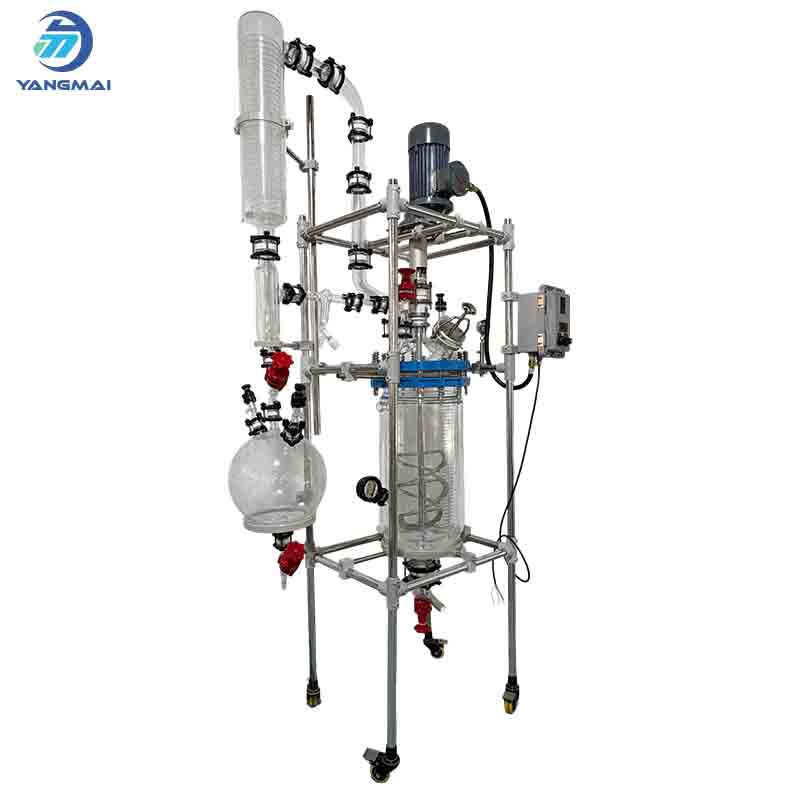

Jacketed glass reactor system

Certificates

Advantage of glass reactor

1.Sturdy 40L Jacketed Vessel – Provides stable temperature control for heating and cooling.

2.Stainless Steel Stirrer – Corrosion-resistant shaft ensures efficient and durable mixing.

3.Explosion-Proof Motor – Safe operation for sensitive chemical environments.

4.Wide Chemical Compatibility – Handles acids, solvents, and organic reagents.

5.Scalable Design – Supports transition from lab R&D to pilot production.

6.Easy Maintenance – Detachable parts simplify cleaning and servicing.

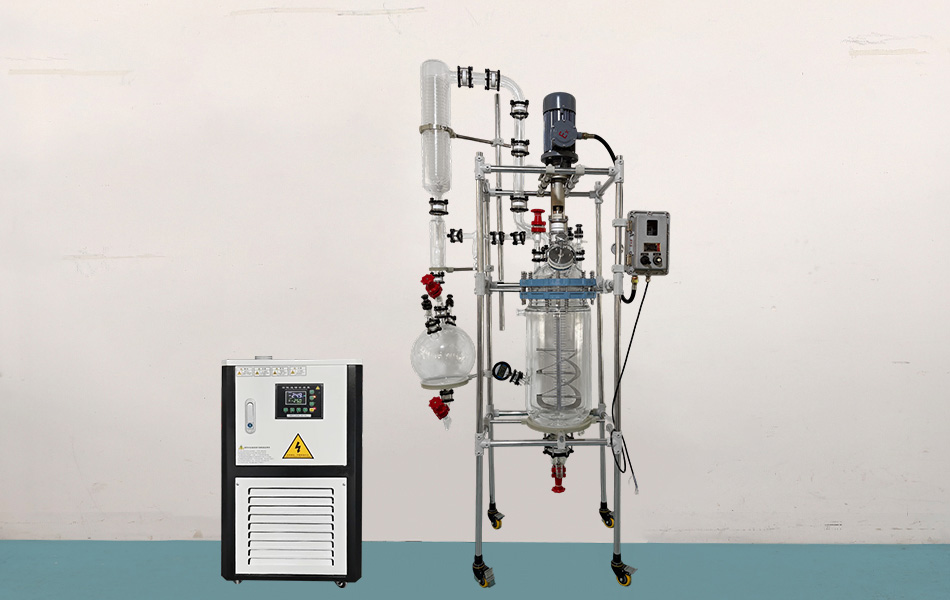

Heater Chiller Vacuum Pump for Glass Reactor

Heating Circulator
Heating and Cooling Machine
Cooling Circulator

Diaphragm Vacuum Pumps
Glass Heat Exchanger
Diaphragm Metering Pumps

Lab-scale chemical reactor

Glass Crystalllization Reactor

Package of glass reactor

Modular reactor assembly

FAQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4. Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
