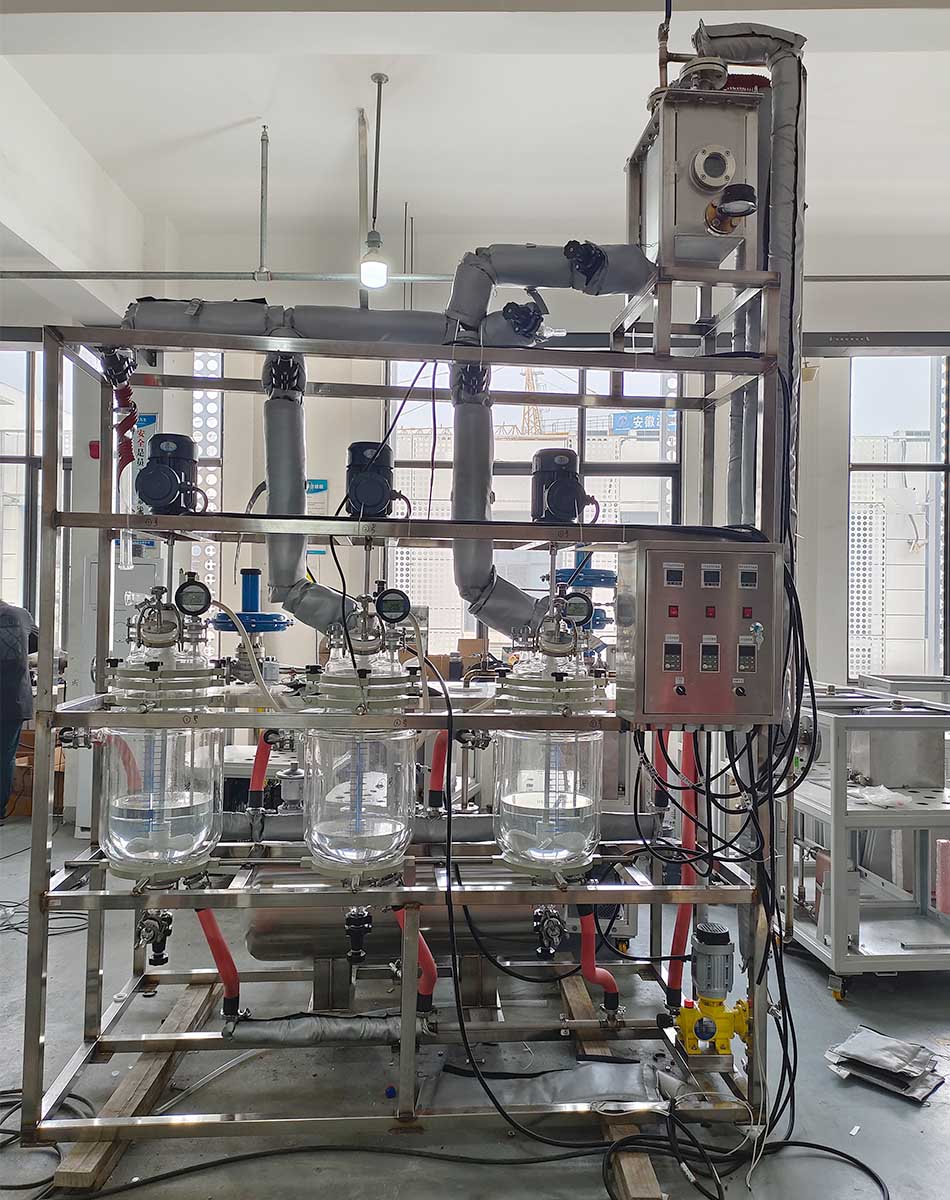

Combined glass reactor system allows multiple reaction processes in a single unit. Equipped with jacketed heating/cooling, mechanical stirring, and vacuum capability, it supports chemical synthesis, crystallization, and distillation for research or pilot production.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMCGR-20EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The Combined Glass Reactor from Hefei Yangmai Technology Instrument Co., Ltd. is constructed from high-quality borosilicate glass and corrosion-resistant components, this reactor delivers durability, scalability, and safety. Its versatile modular design meets the demands of laboratory experiments and small-scale pharmaceutical production.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1. Multi-Stage Cascade Reaction Design – Enables continuous or step-by-step chemical reactions
2. Independent Reactor Control System – Each vessel supports separate temperature and stirring control
3. High Borosilicate Glass Construction – Excellent corrosion resistance and chemical stability
4. Efficient Material Transfer Between Reactors – Smooth flow improves reaction continuity and yield
5. Jacketed Vessel For Precise Temperature Regulation – Compatible with heating and cooling circulators
6. Full Transparent Reaction Process – Easy observation of reaction status in real time
7. Vacuum And Sealed Operation Capability – Suitable for sensitive or inert atmosphere reactions
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
