100 Double Layer Glass Reactor with Heating Machine

Discharging Glass Valve for Jacketed Glass Reactor

Inquiry now

100L Jacketed Glass Reactor with Heating and Cooling Machine for Pharmaceutical Synthesis

Name: 100L Jacketed Glass Reactor with Heating and Cooling Machine for Pharmaceutical Synthesis
Availability: InStock

Feature:

Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）

Wide temperature range: -100℃~300℃

Transparent and easy to observe

Accept customized design

Product Parameters

Model :
YMGR-100EX
Order(MOQ) :
1 Set
Lead Time :
7~15 working days
OEM :
Accepted
Power Supply :
220V/50HZ

Product Details

Pharmaceutical R&D reactor

Hefei YangMai Technology Instrument Co., Ltd. offers 100L Double-Layer Glass Reactor is designed for advanced laboratory and pilot-scale chemical synthesis. Made from high borosilicate glass 3.3, it offers excellent resistance to thermal shock and corrosion. The jacketed design allows precise temperature control for exothermic or endothermic reactions such as esterification, crystallization, and solvent recovery. Equipped with variable-speed stirring, vacuum operation, and customizable heating or cooling systems, this reactor ensures stable performance and high efficiency in chemical, pharmaceutical, and biochemical research.

Model	Volume(L)	Motor power（w）	Vaccum degree(Mpa)	Speed (Ram)	Torque (Ncm)	Power supply	Size(Cm)
YMGR-01	1	40	0.096	50~600	30	220V/50HZ	323580
YMGR-02	2	40	0.096	50~600	30	220V/50HZ	323580
YMGR-05EX	5	180	0.096	50~600	44	220V/50HZ	4545110
YMGR-10EX	10	180	0.096	50~600	162	220V/50HZ	5050120
YMGR-20EX	20	180	0.096	50~600	162	220V/50HZ	5050145
YMGR-30EX	30	180	0.096	50~600	210	220V/50HZ	5050160
YMGR-50EX	50	180	0.096	50~600	300	220V/50HZ	6060180
YMGR-100EX	100	370	0.096	50~600	400	220V/50HZ	7070260
YMGR-150EX	150	750	0.096	50~600	500	220V/50HZ	8585290
YMGR-200EX	200	750	0.096	50~600	500	220V/50HZ	9090300

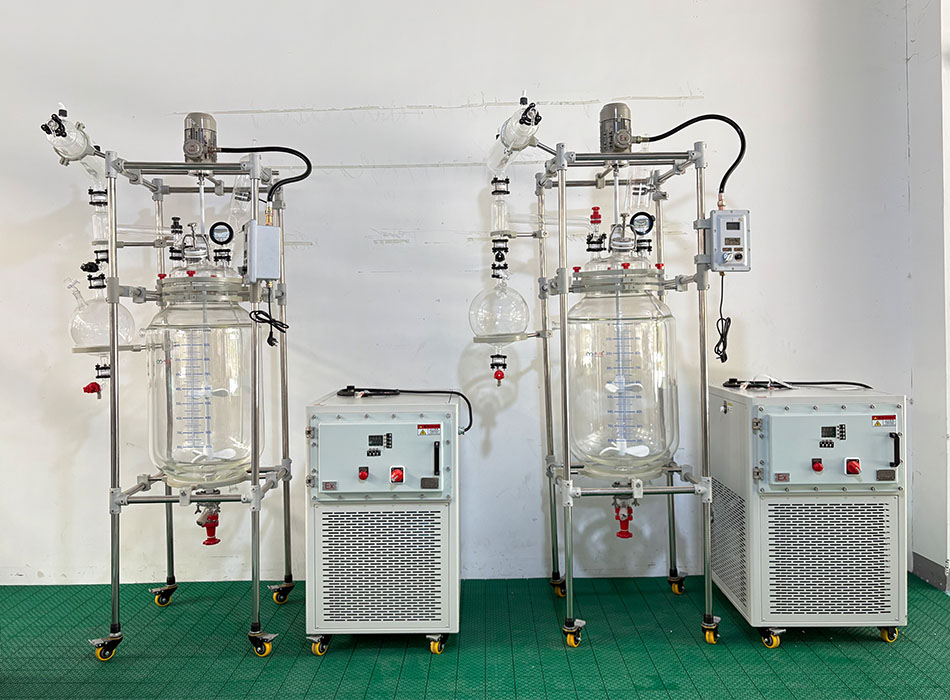

Jacketed glass reactor system

Certificates of Glass Reactor

Advantage of glass reactor

1. Made of high borosilicate glass 3.3, resistant to corrosion and high temperature.
2. Double-layer jacket design for precise heating and cooling circulation.
3. 100L large capacity, ideal for synthesis, distillation, and crystallization.
4. Variable speed stirring ensures uniform mixing and stable operation.
5. Supports vacuum or pressure reactions for higher purity and efficiency.
6. PTFE sealing parts ensure excellent airtightness and chemical resistance.
7. Compatible with thermostatic heating and cooling systems.
8. Easy installation, durable frame, and optional explosion-proof motor.

Vacuum-compatible reactor vessel

Lab-scale chemical reactor

Glass Reactor for Esterification Process

Package of glass reactor

Modular reactor assembly

FAQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4. Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
