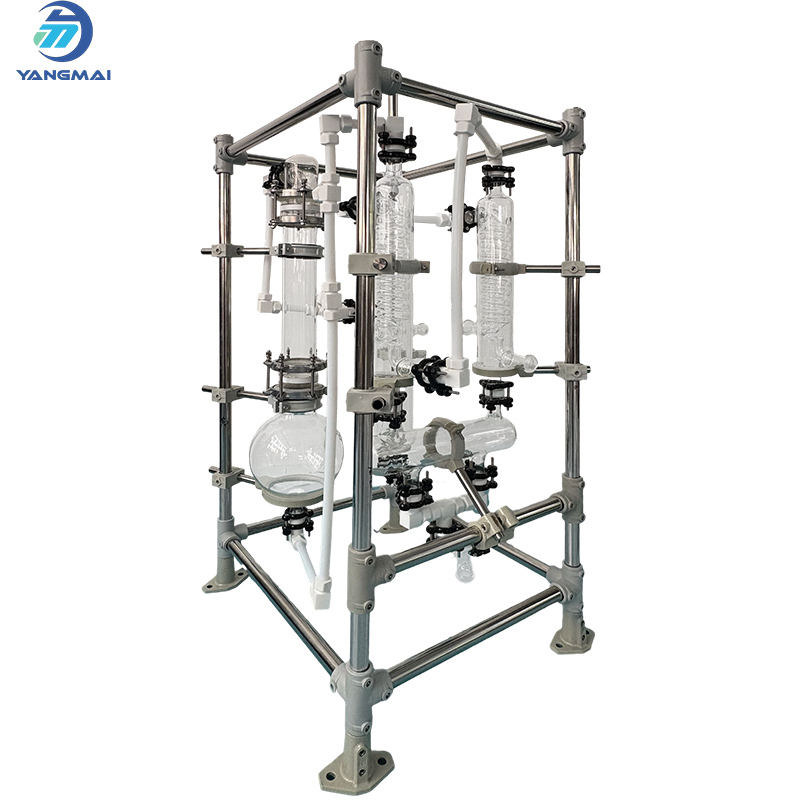

High Borosilicate Glass Coil Condenser Receiver Flask with Frame for Chemical Distillation

The Glass Coil Condenser from Hefei Yangmai Technology Instrument Co., Ltd is specifically engineered for efficient heat exchange in corrosive and high-purity environments. Constructed from durable borosilicate glass with precision-formed internal coils, it ensures optimal thermal transfer while withstanding aggressive chemicals like acids and solvents. Ideal for applications such as solvent condensation, acid recovery, and temperature regulation in distillation systems, it delivers reliable, contamination-free performance in both laboratory and industrial settings.

Heat Exchanger Area(㎡）2	DN (mm)	DN1 (mm)	DN2 (mm)	L (mm)	L1 (mm)	L2 (mm)
0.3	100	15	25	450	300	65
	100	15	40	450	300	80
	100	15	50	450	300	85
	100	15	80	450	300	100
0.6	150	25	25	525	355	65
	150	25	40	525	355	80
	150	25	50	525	355	85
	150	25	80	525	355	100
	150	25	100	525	355	100
1	φ180	25	25	620	430	65
	φ180	25	25	620	430	80
	φ180	25	25	620	430	85
	φ180	25	25	620	430	100
	φ180	25	25	620	430	100
1.5	φ230	40	40	725	485	65
	φ230	40	40	725	485	80
	φ230	40	40	725	485	85
	φ230	40	40	725	485	100
	φ230	40	40	725	485	100
2.5	300	50	50	725	485	85
	300	50	50	725	485	100
	300	50	50	725	485	100
3	300	50	50	830	585	90
	300	50	50	830	585	100
	300	50	50	830	585	100

• 1. Made of durable high borosilicate glass, resistant to acid and alkali corrosion.

• 2. Integrated condenser, distillation column, and collection flask for multifunctional operation.

• 3. Stainless steel and aluminum frame ensures structural stability.

• 4. Modular design allows easy assembly, cleaning, and customization.

• 5. Ideal for solvent recovery, vacuum distillation, and organic synthesis experiments.

• 6. Transparent system for real-time observation of the reaction process.

FAQ

1. Are you manufacturer or trading company.

We are manufacturer.

2. Do you accept customized solution and OEM?

Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.

3. Do you provide after-sales service?

Yes, we offer comprehensive after-sales support, including:

Installation guidance.

Operational training.

Maintenance and troubleshooting.

Quick replacement for defective parts under warranty.

4.  Can your products be shipped internationally?

Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.

5. How can I place an order?

You can place an order by:

Contacting us directly: via email, phone, or our official website.

Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
