The 5L rotary evaporator ensures efficient solvent recovery with precise temperature control, ideal for laboratory-scale extractions. It features a durable design and easy operation.
Feature:
High Evaporation Efficiency
Durable Borosilicate Glass Body
Oil/Water Bath Dual Usage
Corrosion-Resistant Components
Accept Customized Design
Model :
YMRE-5Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted

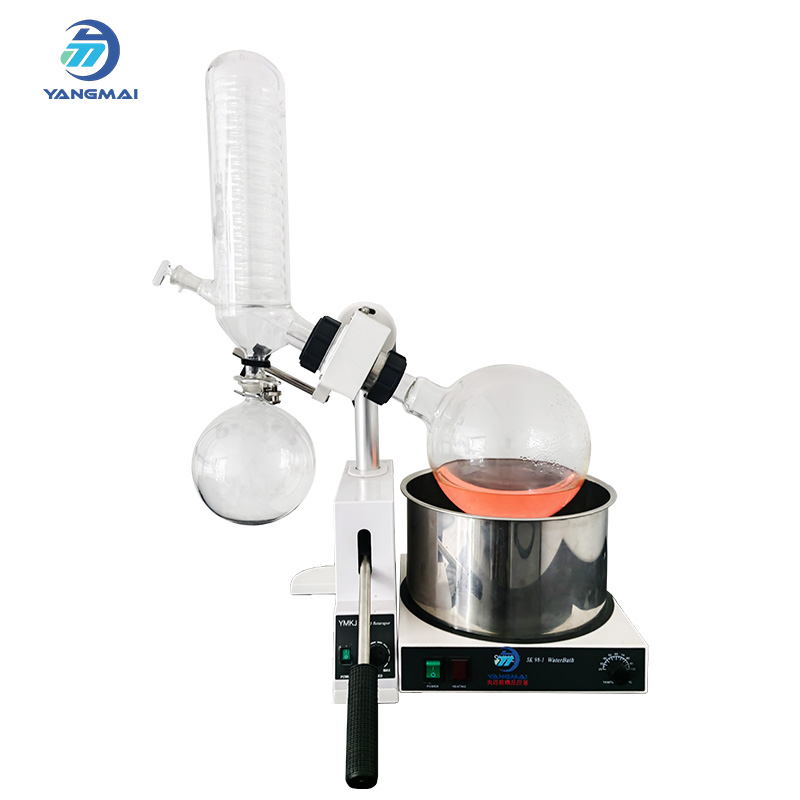

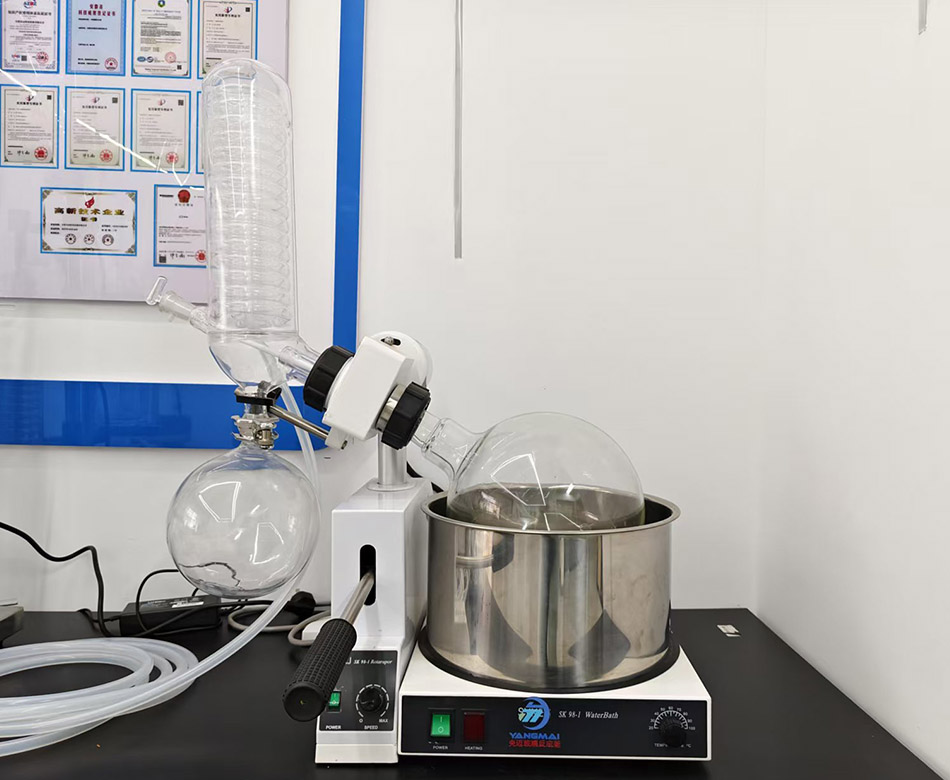

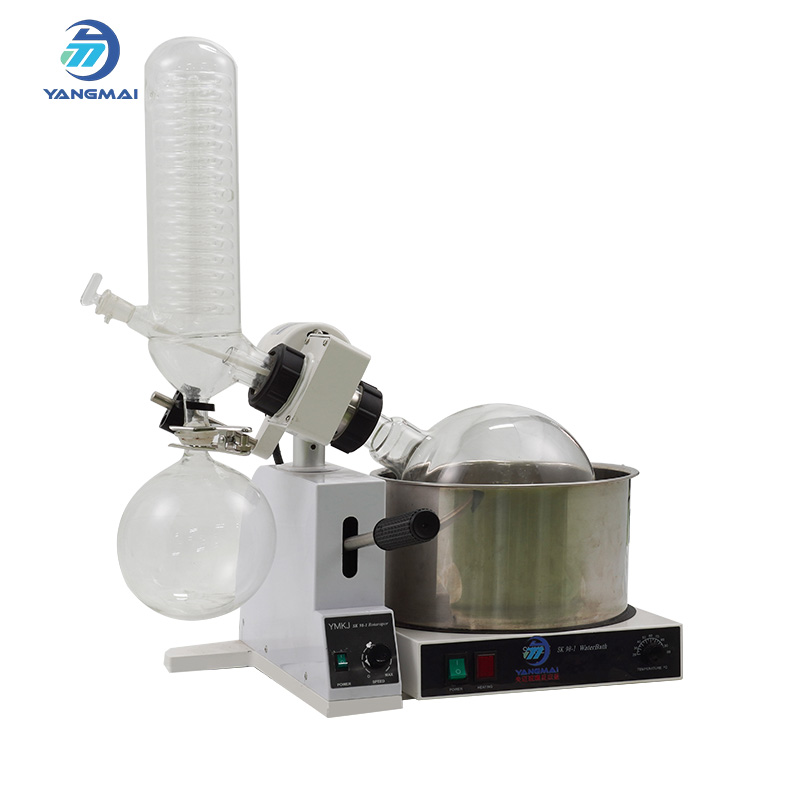

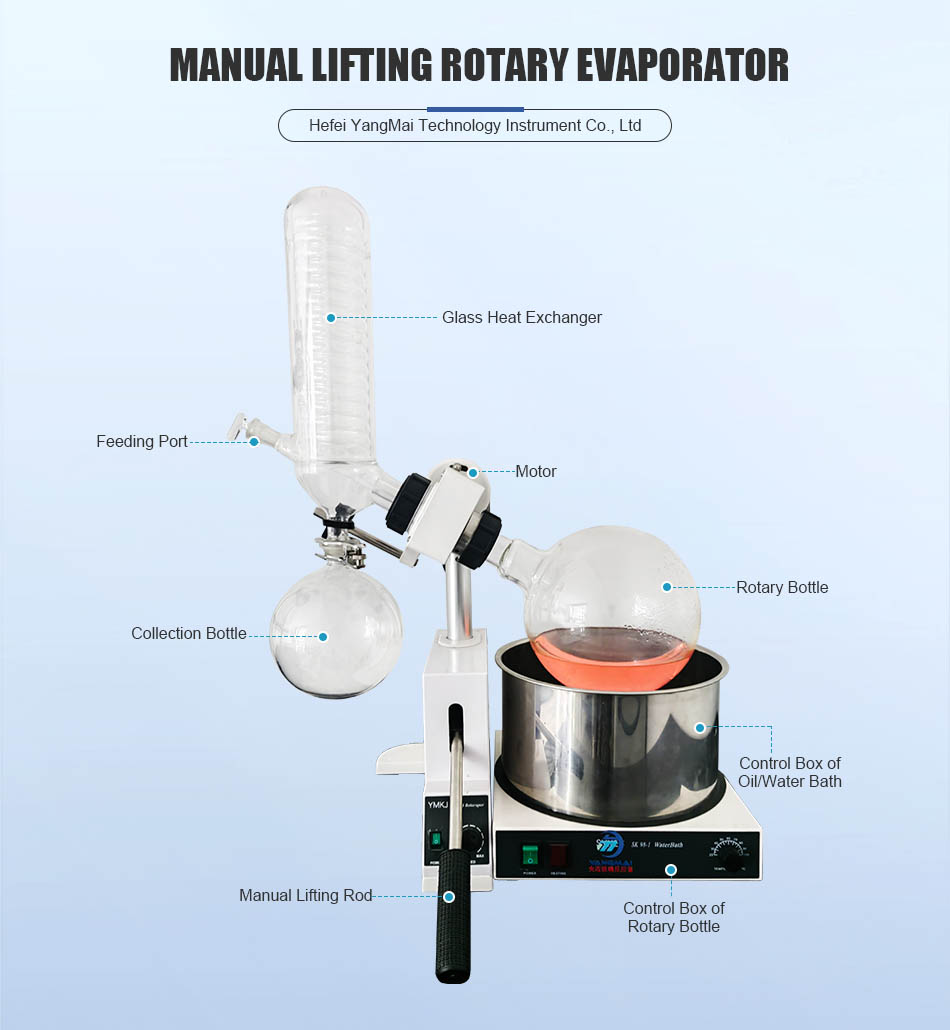

The 5L Rotary Evaporator by Hefei Yangmai Technology Instrument Co., Ltd is designed for small-scale distillation and solvent recovery in chemistry, pharmaceutical, and plant extraction labs. With adjustable rotation speed, digital temperature control, and a corrosion-resistant glass structure, it ensures high-efficiency evaporation and safety. The manual lifting mechanism simplifies flask adjustment, while the vacuum sealing system prevents leakage during operation.
| Model | YMRE-2 | YMRE-5 | YMRE-10 | YMRE-20 | YMRE-50 |
| Evaporating bottle(L) | 0.5/1 | 5 | 10 | 20 | 50 |
| Collecting bottle(L) | 1 | 3 | 5 | 10+3 | 50+5 |
|
Motor power(W)
|
40 | 90 | 120 | 120 | 180 |
|
Bath power(KW)
|
1.5 | 2 | 3 | 5 | 5 |
|
Vacuum level(Mpa)
|
0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
|
Rotating Speed(Ram)
|
10-80 | 10-90 | 5-110 | 5-110 | 5-110 |
|
Evaporation speed (H2O)(L/H)
|
1.2 | 2 | 3.5 | 5 | 8 |
|
Power supply(V)
|
220 | 220 | 220 | 220 | 220 |
|
Dimention(cm)
|
50*35*75 | 50*35*110 | 100*50*180 | 110*70*200 | 120*80*220 |
1. Precision Heating Control
Equipped with an intelligent controller, the evaporator ensures accurate bath temperature regulation for stable and efficient evaporation.

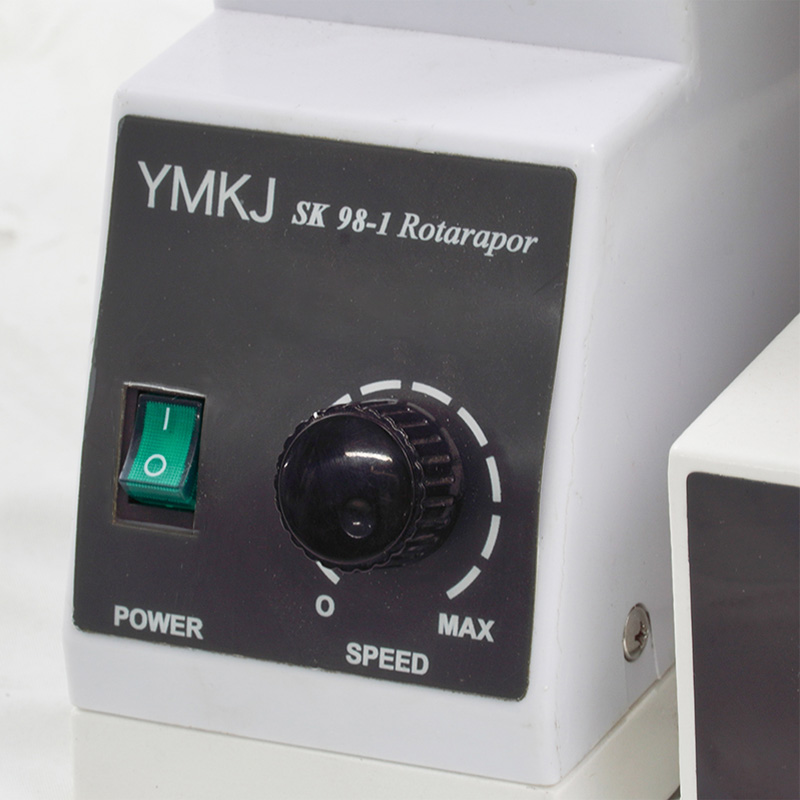

2. Adjustable Rotation Speed
Features a variable-speed motor allowing smooth control of flask rotation to suit various distillation needs and improve evaporation surface contact.

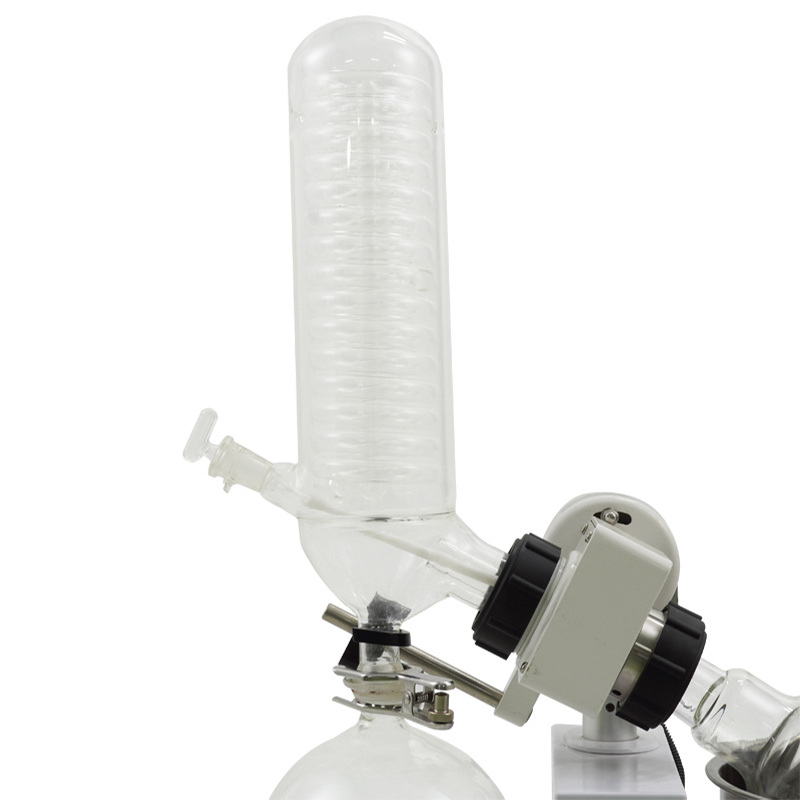

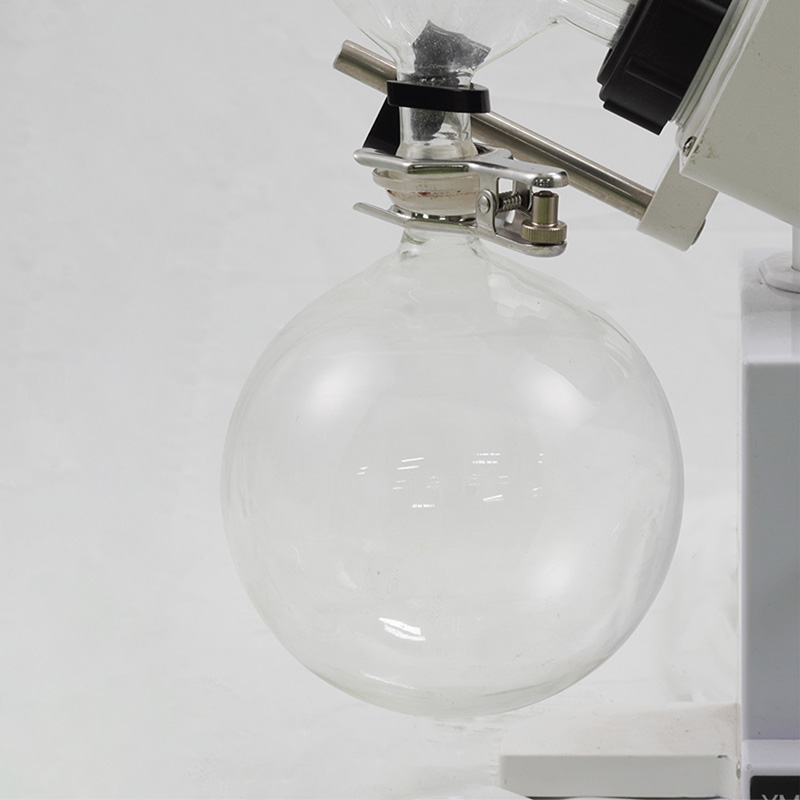

3. High-Quality Glass Construction
Made from 3.3 borosilicate glass, the unit offers strong thermal stability and excellent chemical resistance for most solvents and acids.
4. Compact and Space-Saving
The 5L model is ideal for laboratories with limited space, offering full functionality in a streamlined design.

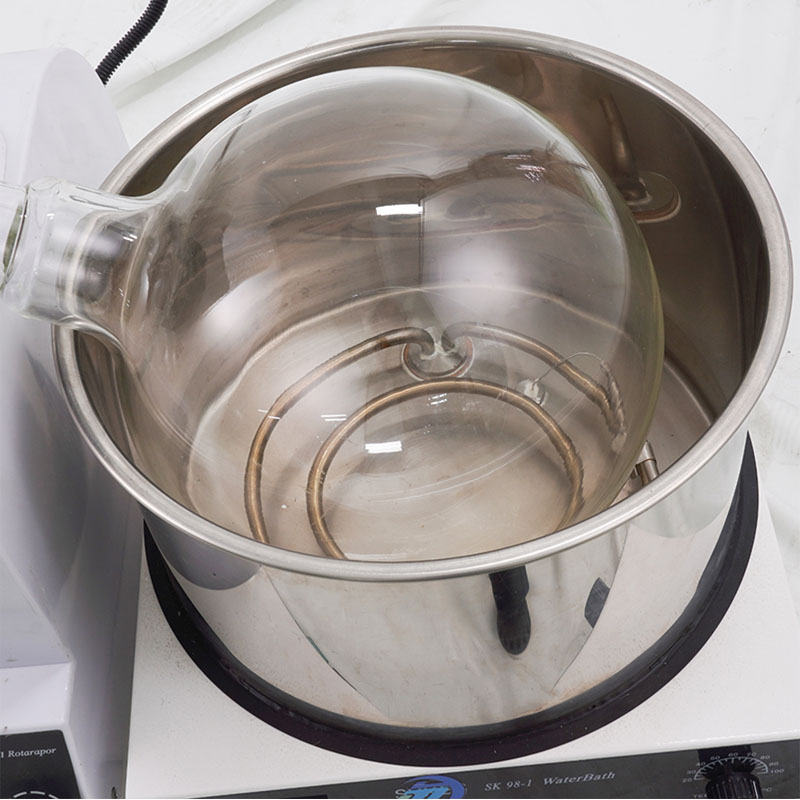

5. Dual Bath Compatibility
The heating bath supports both water and oil media, enabling a broader range of temperature-controlled experiments.
6. User-Friendly Lifting System
Includes an electric or manual lift (configurable), making it easy to raise or lower the evaporation flask during operation.
7. Leak-Proof Sealing
Incorporates PTFE vacuum seals and high-precision joints to ensure a tight, leak-free seal under high vacuum conditions.
8. Low Maintenance Design
Built with corrosion-resistant materials and simple modular components, the system requires minimal upkeep.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.

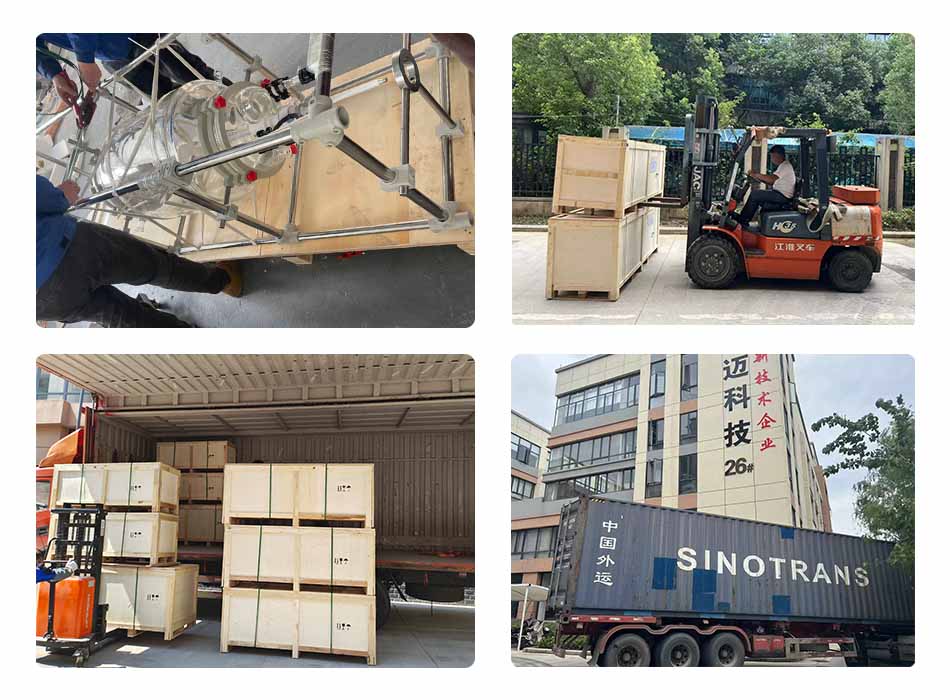

4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
