The 20L Rotary Evaporator is designed for efficient solvent evaporation and recovery with stable temperature control, making it suitable for laboratory-scale extraction and concentration processes. Its robust construction and user-friendly operation provide reliable performance for routine laboratory applications.
Feature:
High Evaporation Efficiency
Precise Temperature Control
Adjustable Rotation Speed
Corrosion-Resistant Glass
Reliable Vacuum Sealing
Easy Manual Lifting
Oil/Water Bath Compatible
Model :
YMRE-20Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted

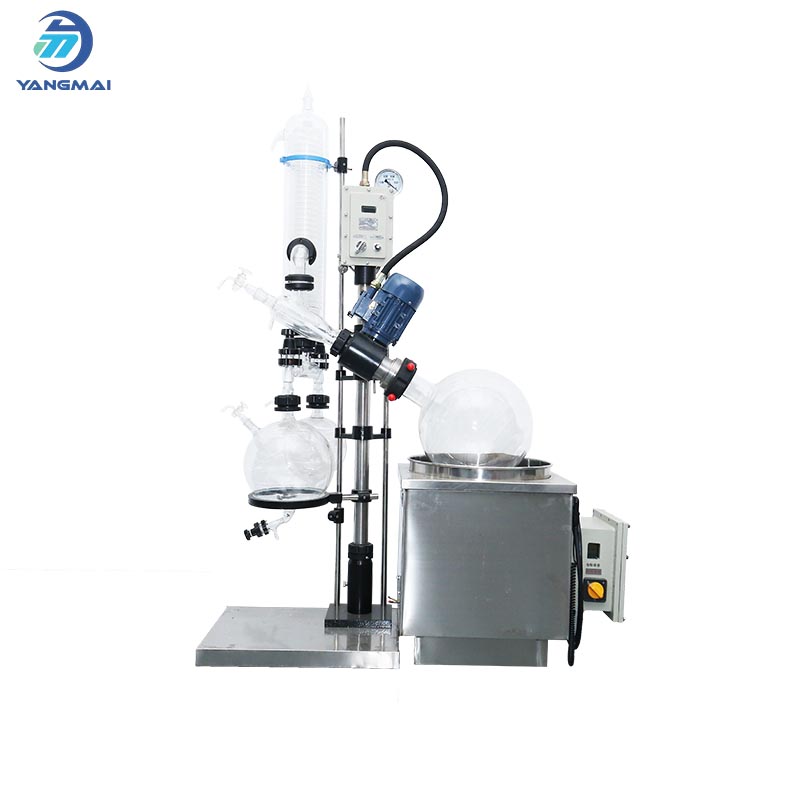

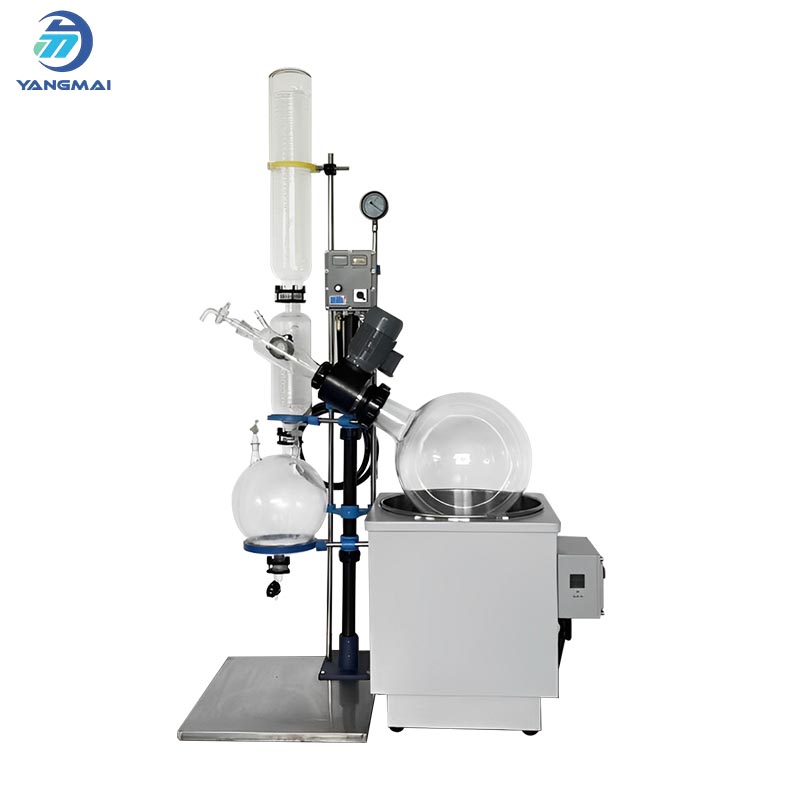

The 20L Rotary Evaporator from Hefei Yangmai Technology Instrument Co., Ltd. is designed for laboratory-scale distillation, concentration, and solvent recovery in chemical, pharmaceutical, and botanical extraction applications. It features variable rotation speed, digital temperature regulation, and corrosion-resistant borosilicate glass components for stable and efficient evaporation. The manual lifting system allows convenient adjustment of the evaporation flask, while the vacuum sealing assembly helps maintain a reliable vacuum during operation.
| Model | YMRE-2 | YMRE-5 | YMRE-10 | YMRE-20 | YMRE-50 |
| Evaporating bottle(L) | 0.5/1 | 5 | 10 | 20 | 50 |
| Collecting bottle(L) | 1 | 3 | 5 | 10+3 | 50+5 |
|
Motor power(W)
|
40 | 90 | 120 | 120 | 180 |
|
Bath power(KW)
|
1.5 | 2 | 3 | 5 | 5 |
|
Vacuum level(Mpa)
|
0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
|
Rotating Speed(Ram)
|
10-80 | 10-90 | 5-110 | 5-110 | 5-110 |
|
Evaporation speed (H2O)(L/H)
|
1.2 | 2 | 3.5 | 5 | 8 |
|
Power supply(V)
|
220 | 220 | 220 | 220 | 220 |
|
Dimention(cm)
|
50*35*75 | 50*35*110 | 100*50*180 | 110*70*200 | 120*80*220 |
Efficient Solvent Evaporation – Supports fast and effective solvent removal.
Durable Borosilicate Glass – Provides good thermal and chemical resistance.
Oil or Water Bath – Flexible heating with both oil and water bath options.
Corrosion-Resistant Construction – Suitable for various solvents and chemical media.
Customizable Configuration – Design and specifications can be tailored to specific requirements.
FAQ
Q1. How do I choose the right glass reactor size?
A: Reactor size should be selected according to the required working volume, batch size, headspace, and process conditions. We can recommend a suitable model based on your application.
Q2. What is the difference between single-jacket and double-jacket reactors?
A: A single-jacket reactor uses one thermal circulation layer, while a double-jacket configuration provides an additional layer for improved temperature management or insulation according to the system design.
Q3. Can I observe the reaction during operation?
A: Yes. The transparent glass vessel allows direct visual monitoring of liquid level, mixing, color changes, crystallization, and other reaction conditions.
Q4. What types of stirring systems are available?
A: Different motor powers, stirring speeds, shafts, and impeller designs can be selected according to liquid viscosity, volume, and mixing requirements.
Q5. Can the reactor be connected to a vacuum pump?
A: Yes. Vacuum ports and suitable sealing components can be configured for vacuum-assisted evaporation, distillation, drying, and other processes.
Q6. Can additional ports be added to the reactor lid?
A: Yes. The lid can be configured with different numbers and types of ports for feeding, temperature measurement, vacuum, reflux, sensors, and other accessories.
Q7. Is the glass reactor suitable for scale-up?
A: Yes. Yangmai offers different reactor capacities for laboratory research, process development, pilot testing, and scale-up applications.
