The 10L Glass Rotary Evaporator ensures fast solvent removal with stable performance. It is ideal for laboratory extraction and chemical purification.
Feature:
High Evaporation Efficiency
Durable Borosilicate Glass Body
Oil/Water Bath Dual Usage
Corrosion-Resistant Components
Accept Customized Design
Model :
YMGRE-10Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted

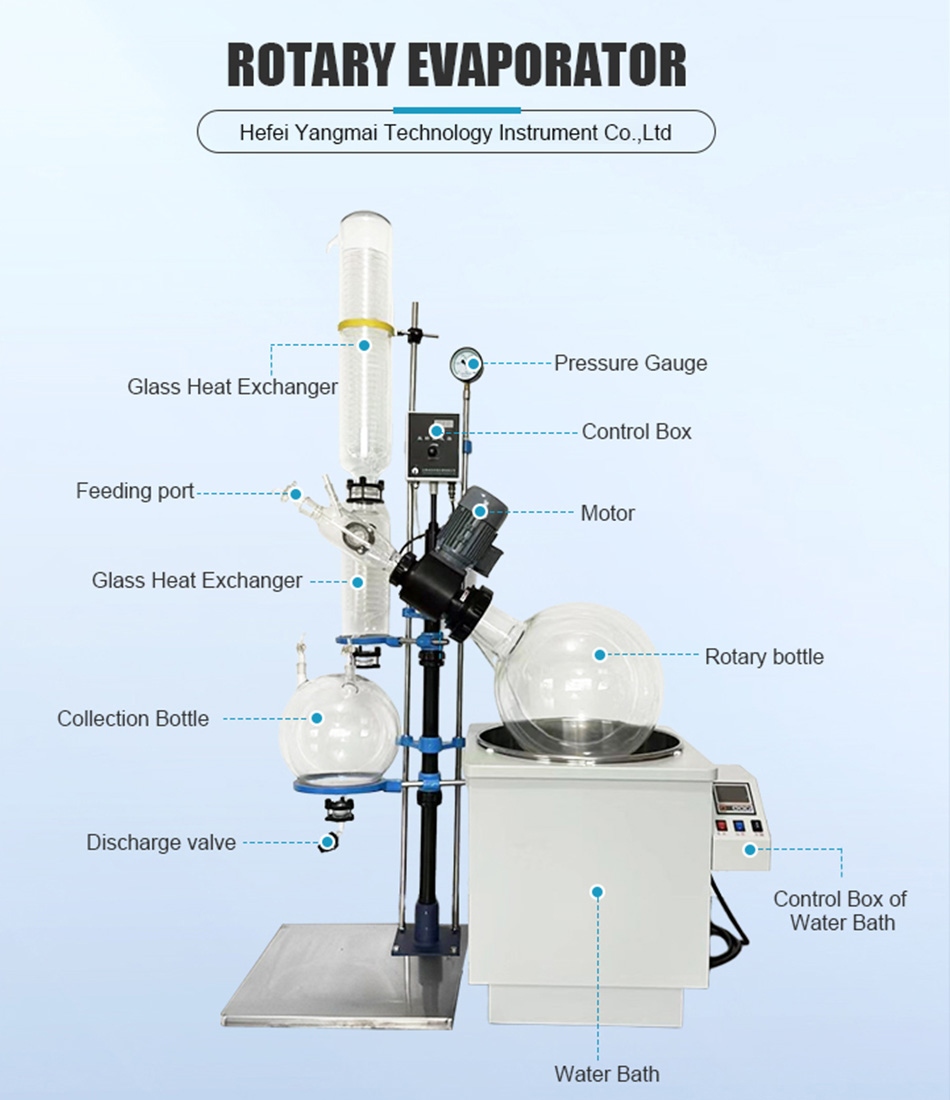

The 10L Glass Rotary Evaporator by Hefei Yangmai Technology Instrument Co., Ltd is a specialized laboratory instrument designed for efficient and gentle removal of solvents from samples through evaporation. It operates under vacuum, which lowers the boiling point of the solvent, allowing for evaporation at a much lower temperature. This makes it ideal for handling heat-sensitive compounds. The core of the system is a 10-liter rotating flask that constantly turns to increase the surface area of the liquid, which significantly speeds up the evaporation process.
| Model | YMRE-2 | YMRE-5 | YMRE-10 | YMRE-20 | YMRE-50 |
| Evaporating bottle(L) | 0.5/1 | 5 | 10 | 20 | 50 |
| Collecting bottle(L) | 1 | 3 | 5 | 10+3 | 50+5 |
|
Motor power(W)
|
40 | 90 | 120 | 120 | 180 |
|
Bath power(KW)
|
1.5 | 2 | 3 | 5 | 5 |
|
Vacuum level(Mpa)
|
0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
|
Rotating Speed(Ram)
|
10-80 | 10-90 | 5-110 | 5-110 | 5-110 |
|
Evaporation speed (H2O)(L/H)
|
1.2 | 2 | 3.5 | 5 | 8 |
|
Power supply(V)
|
220 | 220 | 220 | 220 | 220 |
|
Dimention(cm)
|
50*35*75 | 50*35*110 | 100*50*180 | 110*70*200 | 120*80*220 |
Variable Speed Control: The rotation speed of the flask can be adjusted, providing control over the evaporation rate.
Integrated Vacuum System: The machine connects to a vacuum pump, which reduces pressure inside the system, enabling low-temperature distillation.
Efficient Condenser: A high-efficiency condenser rapidly cools the vapor back into a liquid, which is collected in a separate receiving flask.
Temperature-Controlled Heating Bath: The heating bath precisely controls the temperature to ensure gentle and consistent evaporation.
High-Quality Glassware: All glassware is made from durable borosilicate glass, which is resistant to chemical corrosion and thermal shock.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
