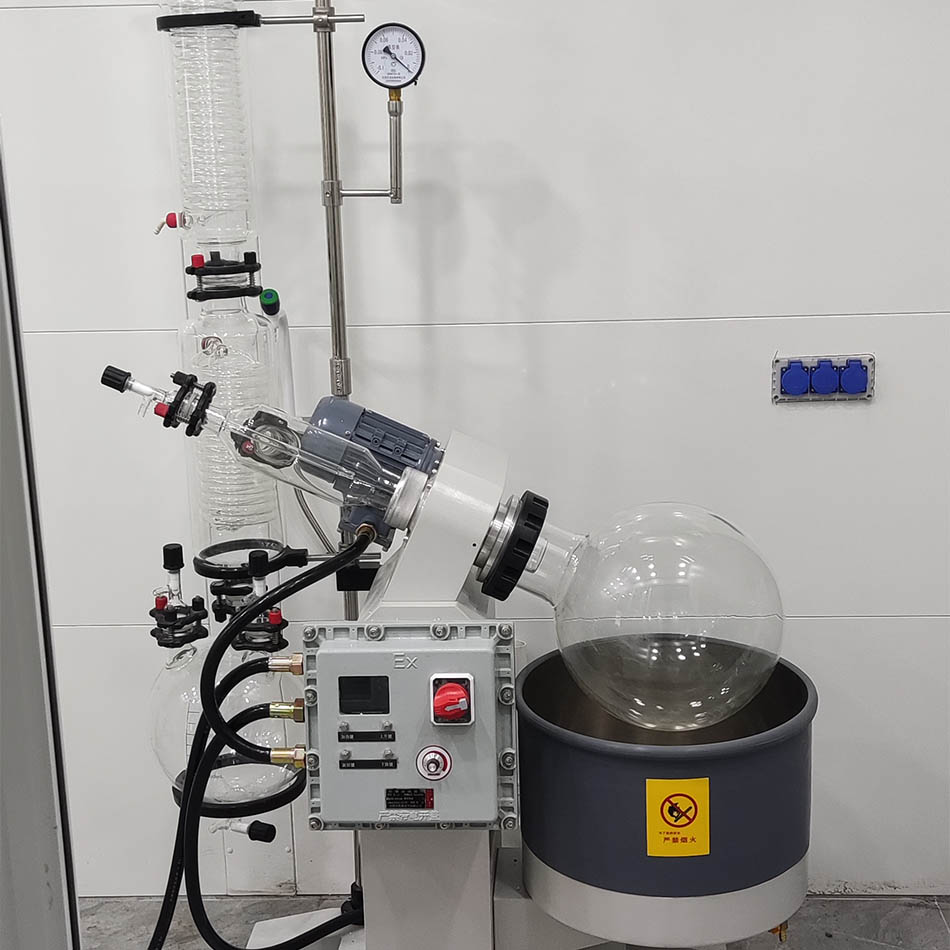

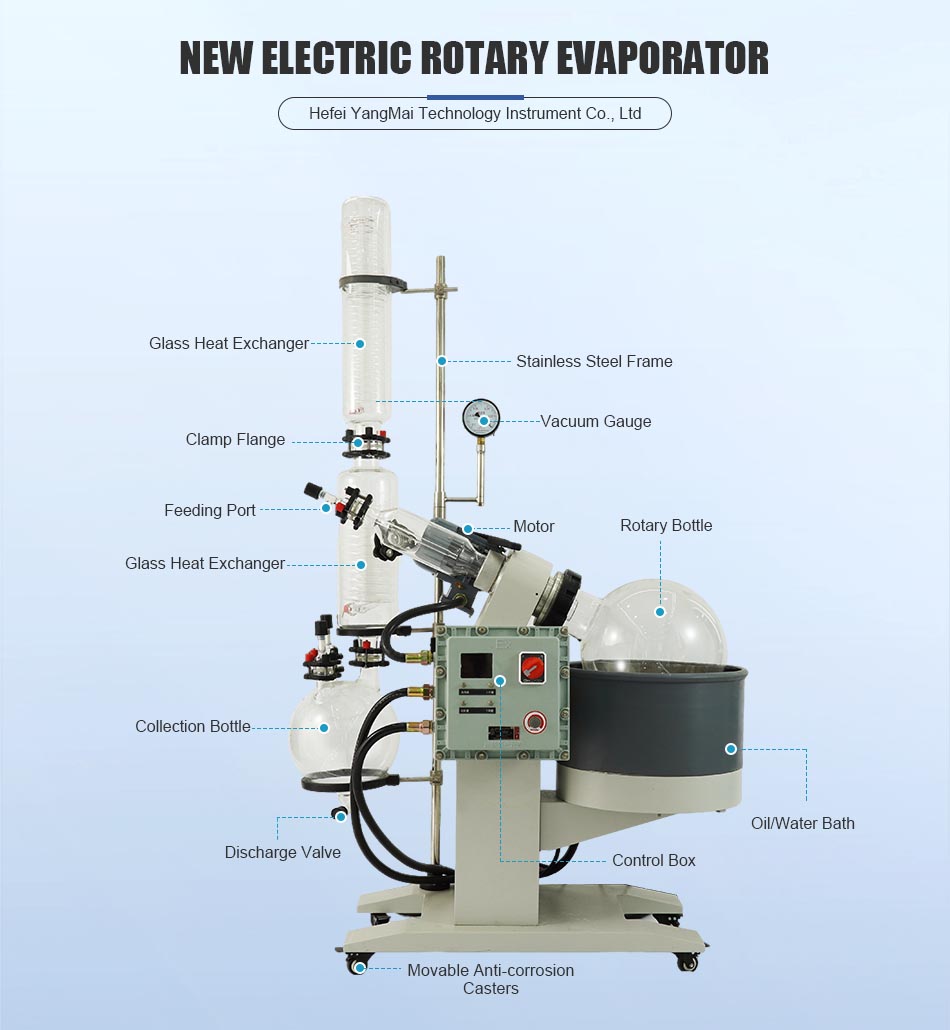

The 20L rotary evaporator is ideal for efficient solvent distillation in chemical and pharmaceutical labs. It ensures excellent vacuum performance and thermal stability. Designed for large-scale evaporation, it combines precise temperature control with chemical resistance for reliable and repeatable results.
Feature:
High Evaporation Efficiency
Electric Lifting Bath

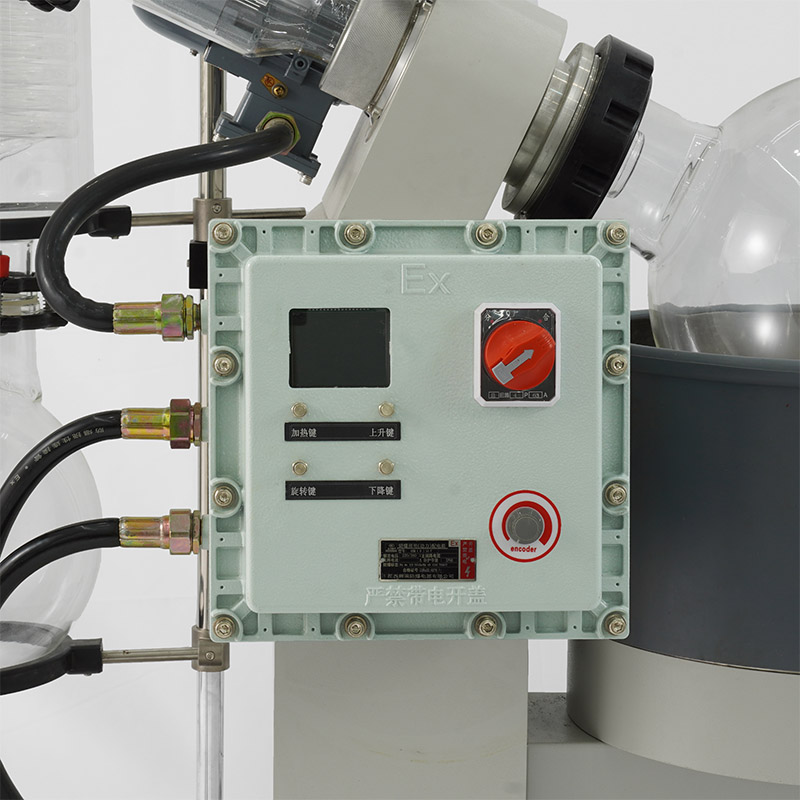

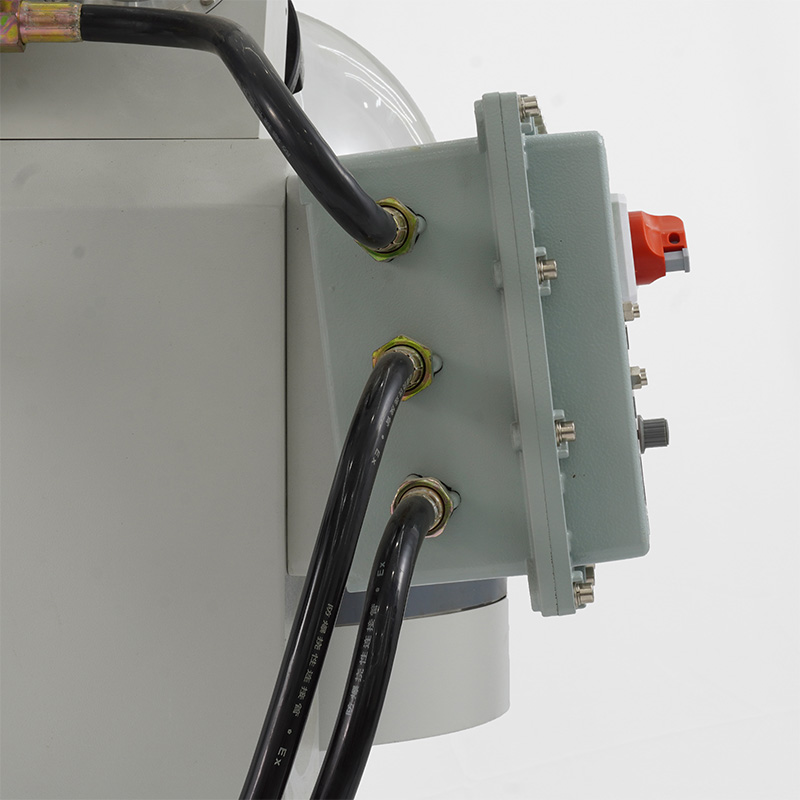

Explosion-Proof Optional Design
Corrosion-Resistant Glassware
PTFE Sealing System
Model :
YMRE-20EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted
The 20L Rotary Evaporator by Hefei Yangmai Technology Instrument Co., Ltd is perfect for botanical extraction, organic solvent recovery, and pharmaceutical distillation. It offers digital temperature control, continuous feed capability, and secure vacuum sealing to ensure stable and safe operation over long durations.
| Model | YMRE-2 | YMRE-5 | YMRE-10 | YMRE-20 | YMRE-50 |
| Evaporating bottle(L) | 0.5/1 | 5 | 10 | 20 | 50 |
| Collecting bottle(L) | 1 | 3 | 5 | 10+3 | 50+5 |
|
Motor power(W)
|
40 | 90 | 120 | 120 | 180 |
|
Bath power(KW)
|
1.5 | 2 | 3 | 5 | 5 |
|

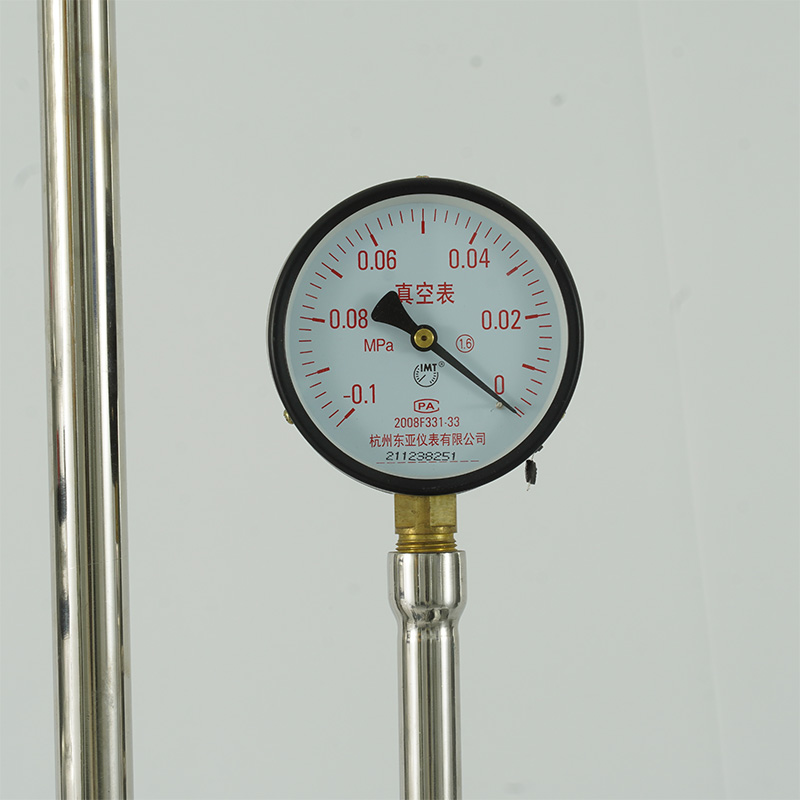

Vacuum level(Mpa)
|
0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
|
Rotating Speed(Ram)
|
10-80 | 10-90 | 5-110 | 5-110 | 5-110 |
|
Evaporation speed (H2O)(L/H)
|
1.2 | 2 | 3.5 | 5 | 8 |
|
Power supply(V)
|
220 | 220 | 220 | 220 | 220 |
|
Dimention(cm)
|
50*35*75 | 50*35*110 | 100*50*180 | 110*70*200 | 120*80*220 |
1. High Efficiency & Stable Operation
Features advanced frequency conversion and electronic speed control to ensure smooth motor performance and excellent solvent recovery.

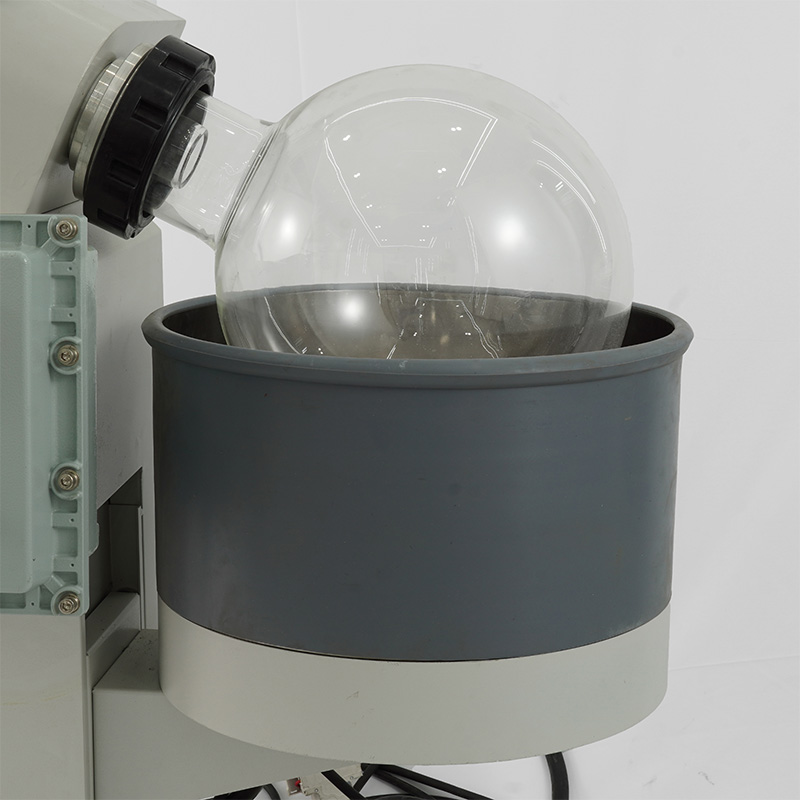

2. Safe & Convenient Lifting Mechanism
The electrically lifted heating bath minimizes operational risk, while the collection flask can be submerged in an ice bath during low-boiling-point evaporation to prevent re-evaporation.

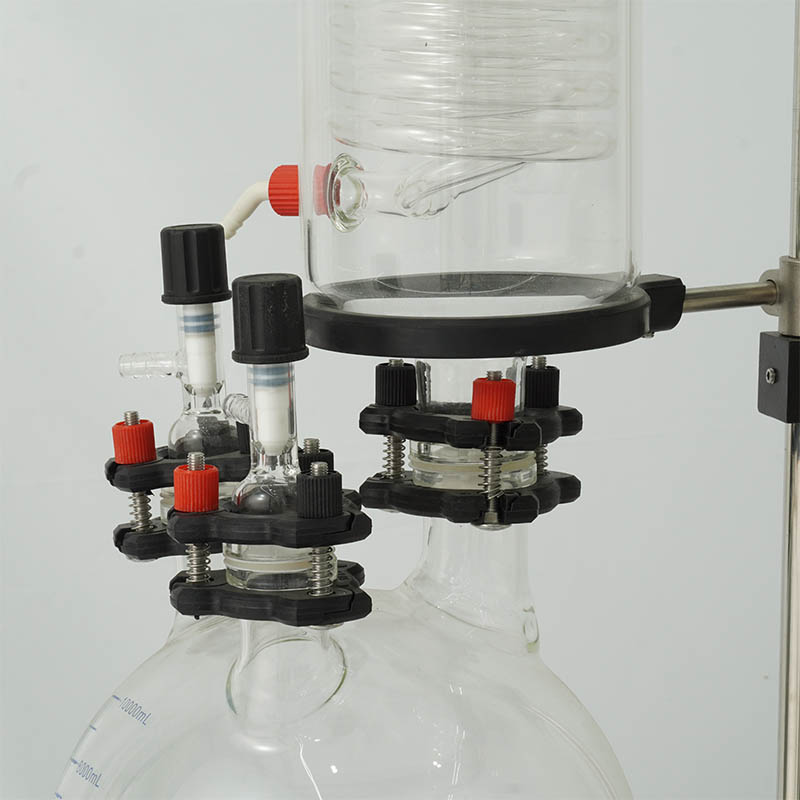

3. Excellent Sealing & Easy Disassembly

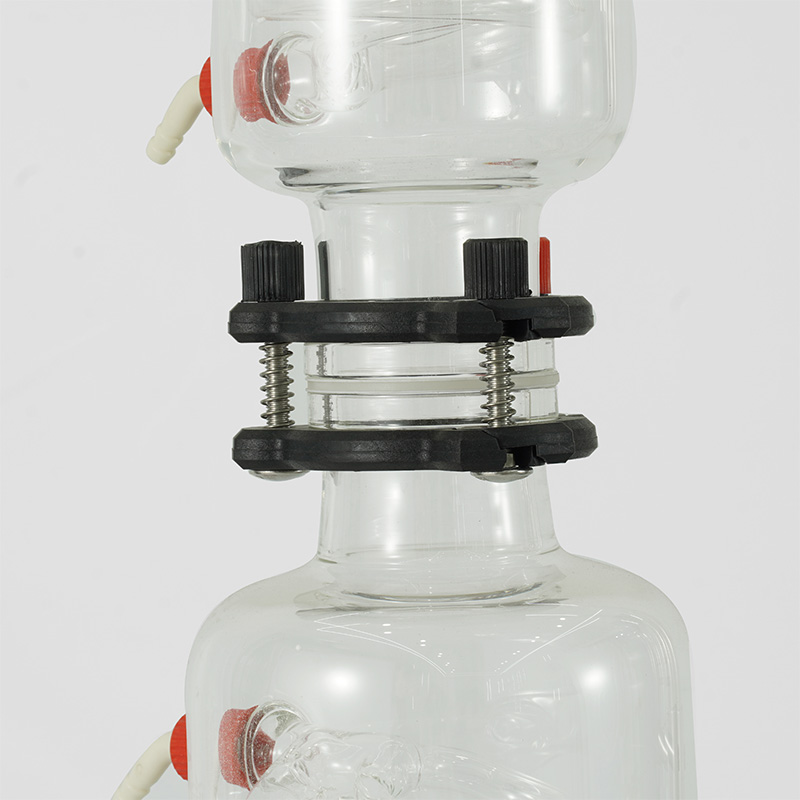

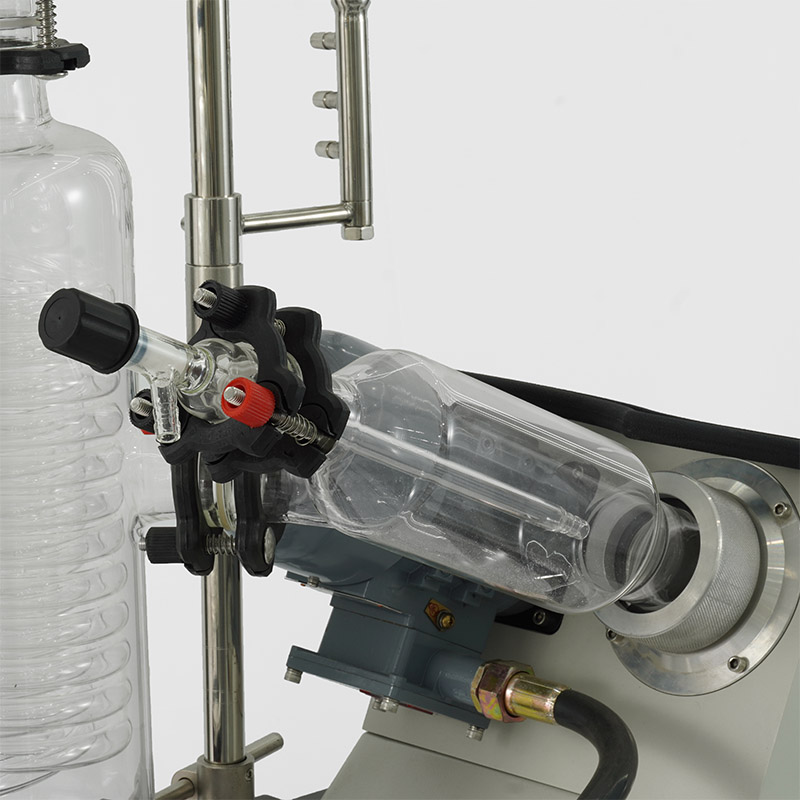

The ground-glass joint on the collection flask ensures a tight seal and allows for quick assembly and disassembly.
4. Reliable Motor With Long Service Life
Equipped with a Japanese AC induction motor, offering stepless speed control without brushes or sparks for long-term, safe operation.
5. Durable & Corrosion-Resistant Structure
Main components, including the base, bath, and support frame, are made from premium stainless steel for durability and chemical resistance.
6. Precise Dual-Use Temperature Control
Supports both water and oil baths, with ±0.2°C temperature stability, allowing consistent evaporation and minimizing sample loss or splashing.
7. Modular Design For Flexibility
Engineered with a modular structure, enabling quick setup, easy expansion, and straightforward maintenance.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
