5 L Jacketed Glass Nutsche Filter Reactor is designed for precise control of solid-liquid reaction pathways in chemical and pharmaceutical synthesis.It enable efficient filtration, coupling, and crystallization in a sealed and chemically resistant environment.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Transparent and easy to observe
Accept customized design
Model :
YMGDR-05EXOrder(MOQ) :
1 SetLead Time :
7~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

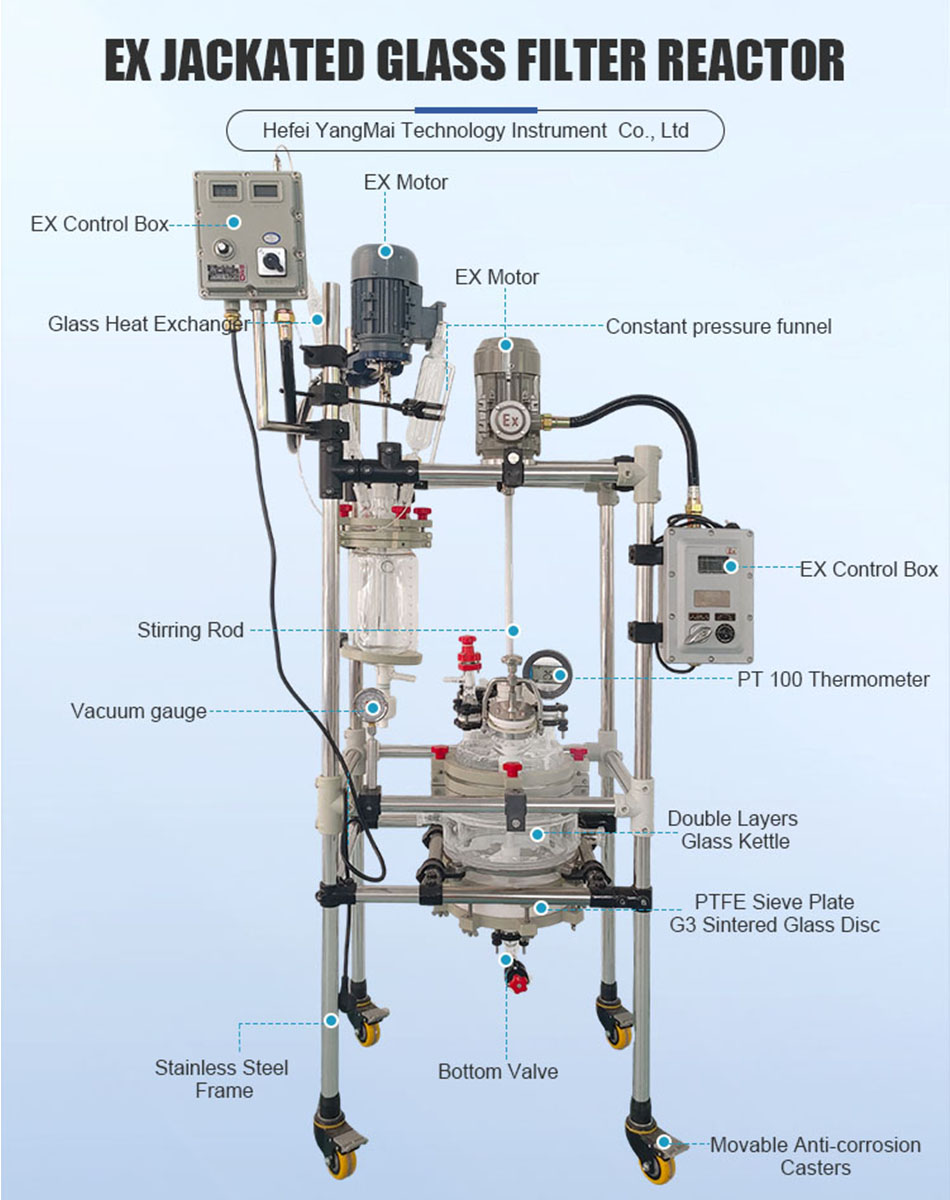

The 5 L Jacketed Glass Nutsche Filter Reactor from Hefei Yangmai Technology Instrument Co., Ltd. is engineered for advanced laboratory and pilot-scale synthesis processes involving solid-liquid transformation. It supports high-efficiency operations such as filtration, crystallization, and reaction coupling under vacuum or controlled pressure conditions. Built from high borosilicate glass with optional PTFE-lined components, the system ensures strong resistance to corrosive solvents and reactive chemicals. It is ideal for pharmaceutical development, peptide chain synthesis, and active pharmaceutical ingredient (API) intermediate manufacturing.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.Explosion-Proof System for Maximum Laboratory Safety

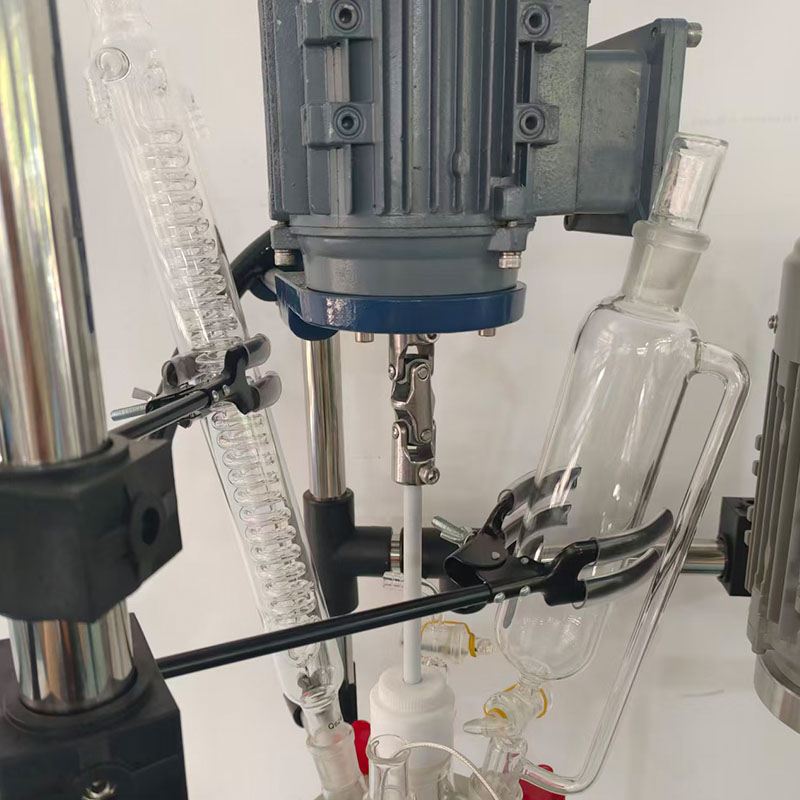

Designed with certified explosion-proof motors and control boxes, this reactor ensures safe operation during flammable solvent processes involving ethanol, hexane, or acetone.
2.High-Performance Thermal Jacket Design

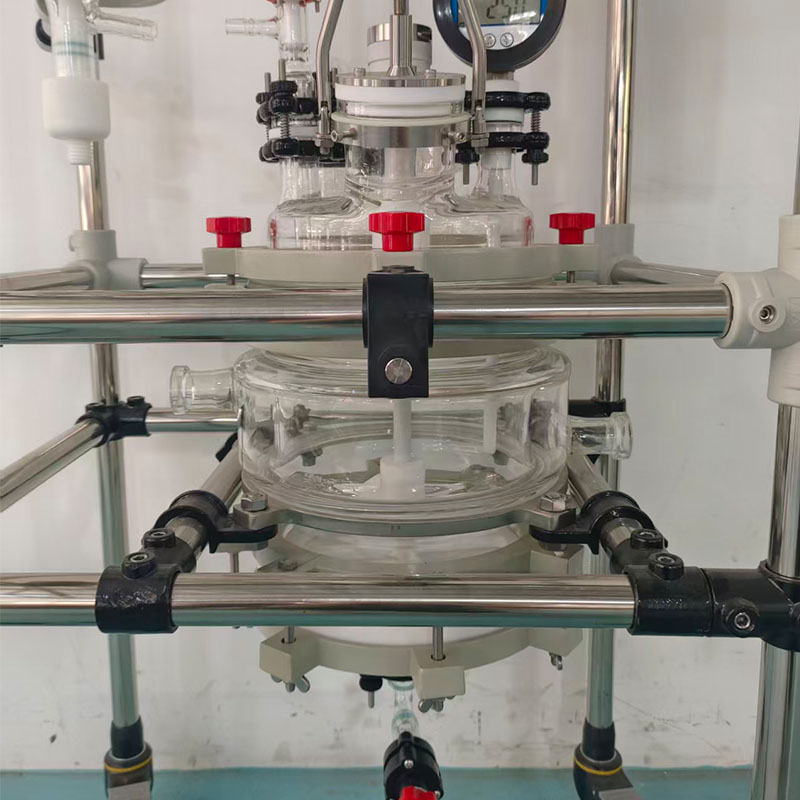

The double-layer borosilicate glass jacket enables efficient temperature control for sensitive reactions from -80°C to +250°C, supporting precise thermal environments.
3.Ideal for Hazardous Small-Scale Applications
With a 5L capacity, it’s perfectly suited for small-batch experiments involving nitric acid purification, solvent recovery, or volatile compound synthesis under controlled conditions.
4.Transparent & Corrosion-Resistant Glass Body
Made from chemically resistant borosilicate glass for full visual monitoring, high purity, and durability in aggressive or reactive environments.
5.Compact, Mobile, and Lab-Ready
Mounted on a corrosion-resistant frame with universal casters, the unit is easy to move, lock, and position within explosion-protected laboratory zones.
6.Modular for Custom Lab Setups
Compatible with vacuum systems, reflux condensers, collection flasks, and other attachments—supporting a wide range of controlled chemical workflows.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
