50L jacketed solid phase glass reactor is ideal for handling solid–liquid chemical reactions. It ensures high visibility and precision control for pharmaceutical and lab-scale synthesis.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
High-Capacity Reaction Volume
Reliable Stirring And Mixing System
Accept customized design
Model :
YMGFR-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

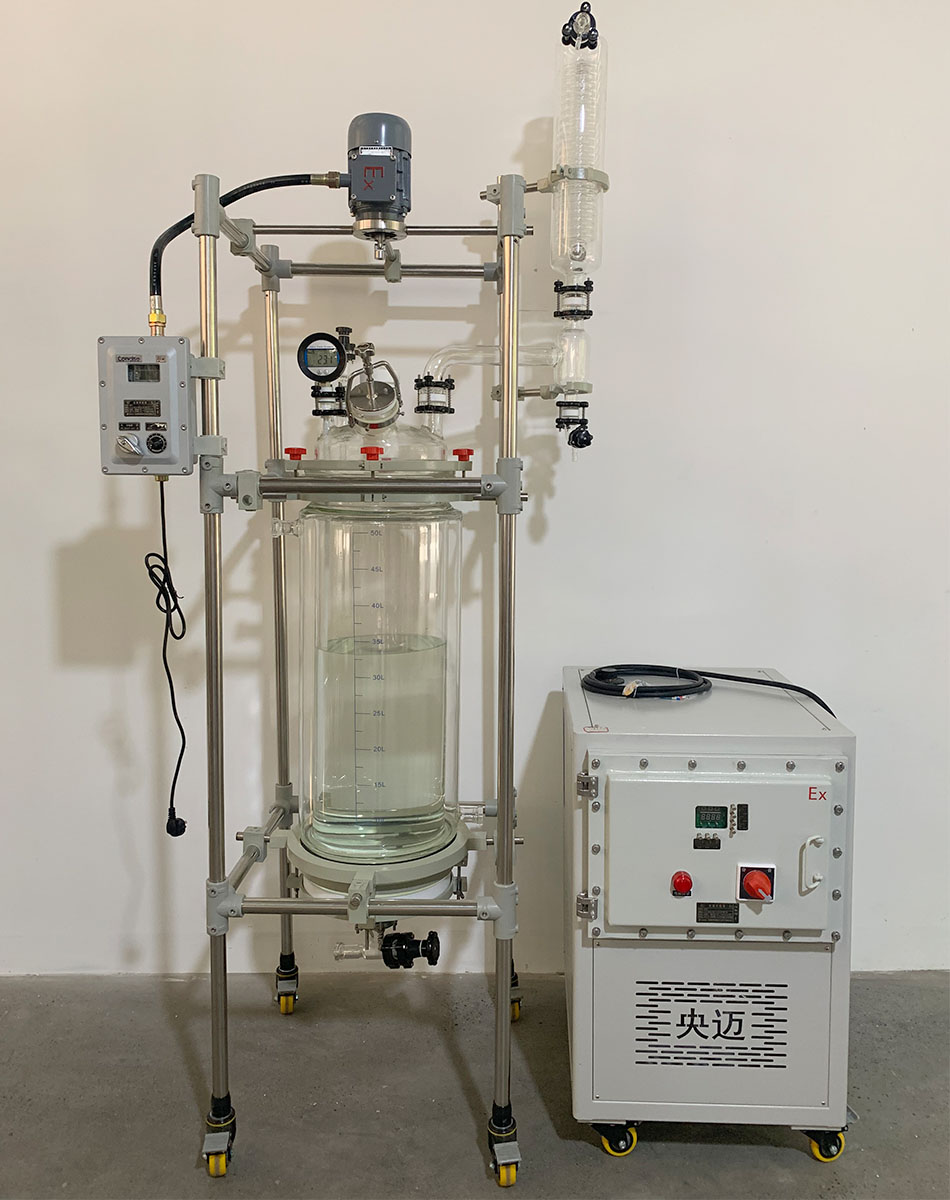

The 50L Explosion Proof Jacketed Solid Phase Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd is designed for laboratory and pilot-scale synthesis where solid materials participate in chemical reactions. The transparent borosilicate structure allows easy observation while maintaining excellent chemical resistance.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.Dedicated Solid Phase Reaction Design
The reactor is specifically engineered for solid phase reactions, allowing efficient interaction between solid materials and liquid reagents during synthesis processes.
2.High Borosilicate Glass Construction
Manufactured from high borosilicate glass, the reactor offers excellent chemical resistance, high transparency, and strong thermal stability for laboratory and pilot-scale experiments.
3.High-Transparency Borosilicate Glass
Allows full visibility of reaction progress and is highly resistant to thermal shock and corrosive agents.
4.Transparent Reaction Observation
The clear glass vessel allows researchers to visually monitor the reaction process, phase transitions, and mixing conditions throughout the experiment.

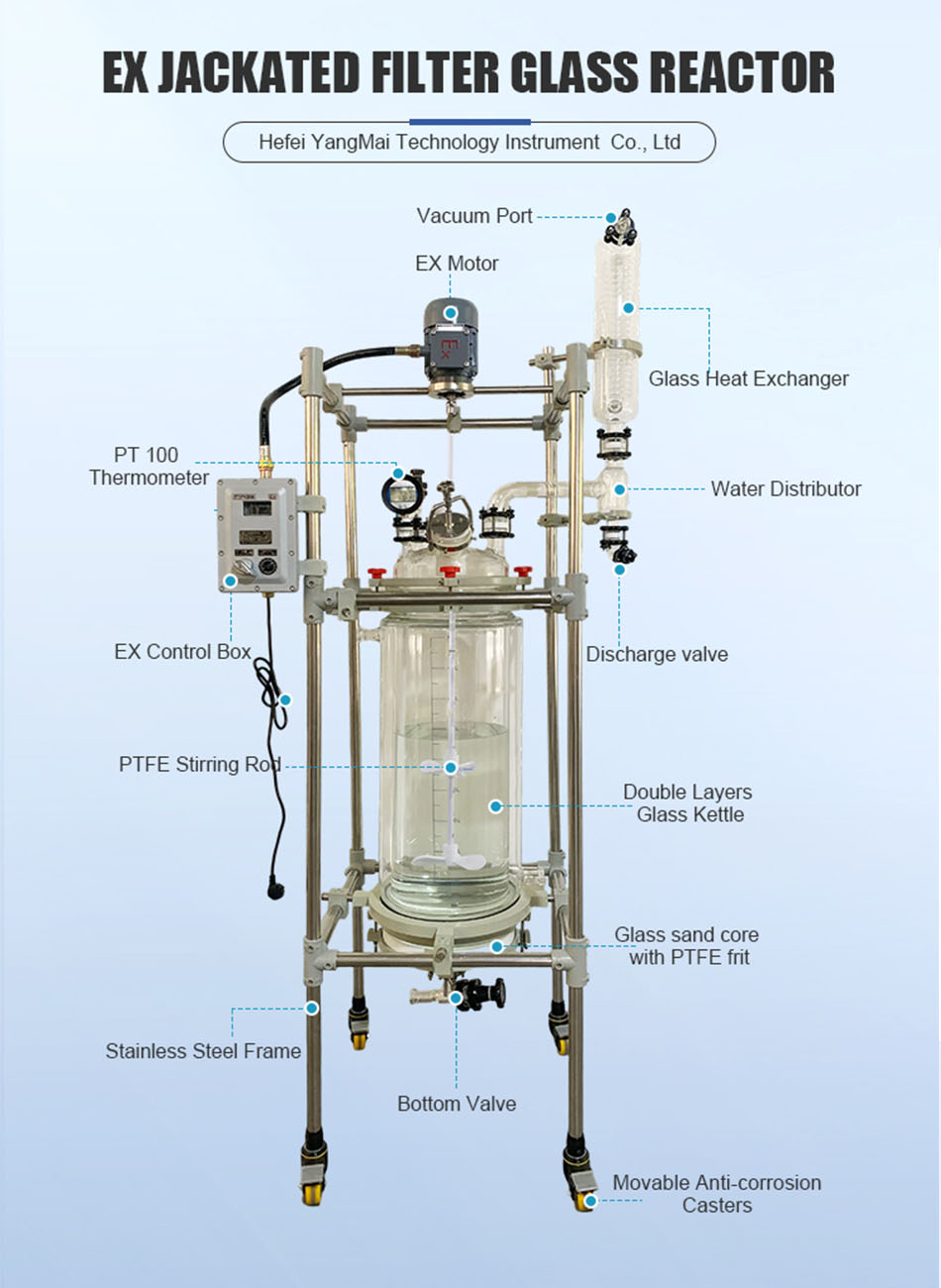

5.Multi-Port Reactor Lid Configuration
The reactor lid includes multiple functional ports for feeding, temperature probes, condensers, or vacuum connections, allowing flexible laboratory setups.
6.Wide Chemical Application Range
Suitable for peptide synthesis, polymer research, organic synthesis, and pharmaceutical compound development.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
