100L jacketed solid phase glass reactor is ideal for handling solid–liquid chemical reactions. It ensures high visibility and precision control for pharmaceutical and lab-scale synthesis.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
High-Capacity Reaction Volume
Reliable Stirring And Mixing System
Accept customized design
Model :
YMGFR-100EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

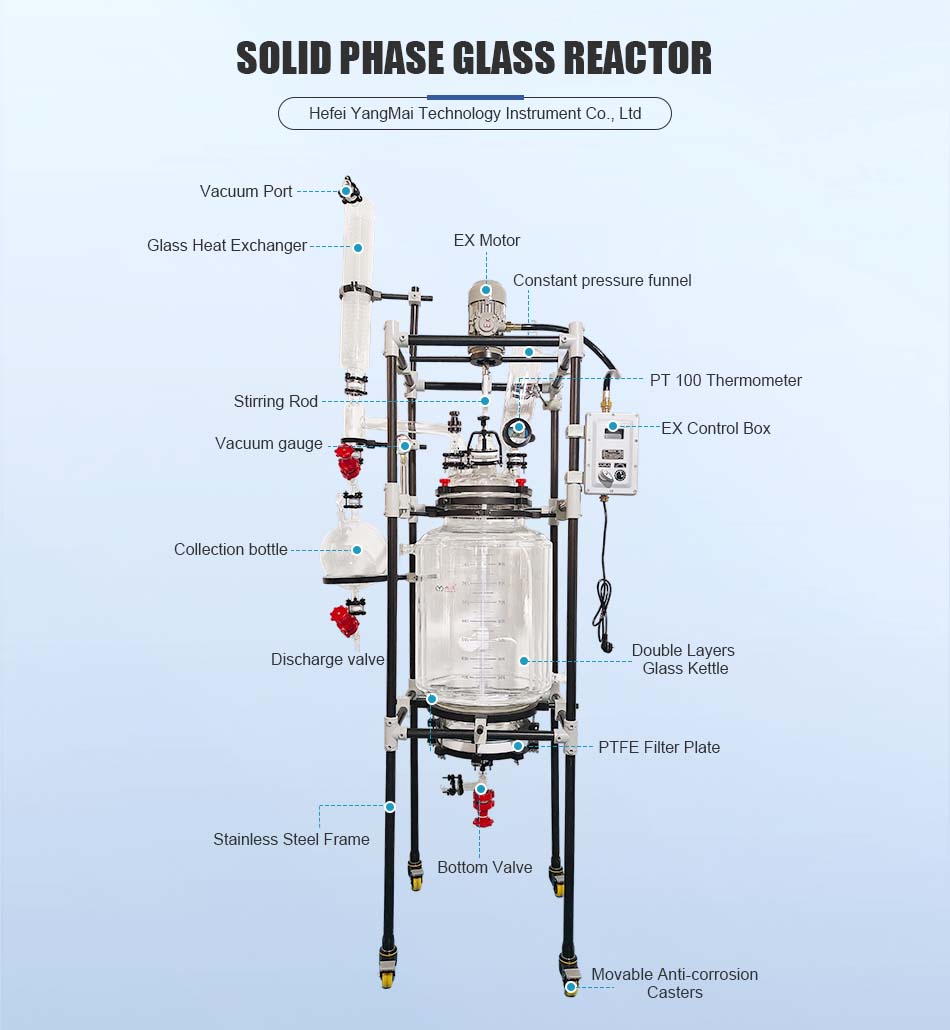

The 100L Explosion Proof Jacketed Solid Phase Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd is specifically engineered for solid–liquid heterogeneous reactions used in drug development, API testing, and catalyst processes. Built with premium borosilicate glass and a robust frame, it offers chemical resistance, high thermal stability, and full visibility for precise reaction control. The system supports vacuum and pressure operations, and integrates seamlessly with heating/cooling and filtration modules for versatile lab or pilot applications.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
1.Explosion-Proof Protection for High-Risk Solvent Reactions

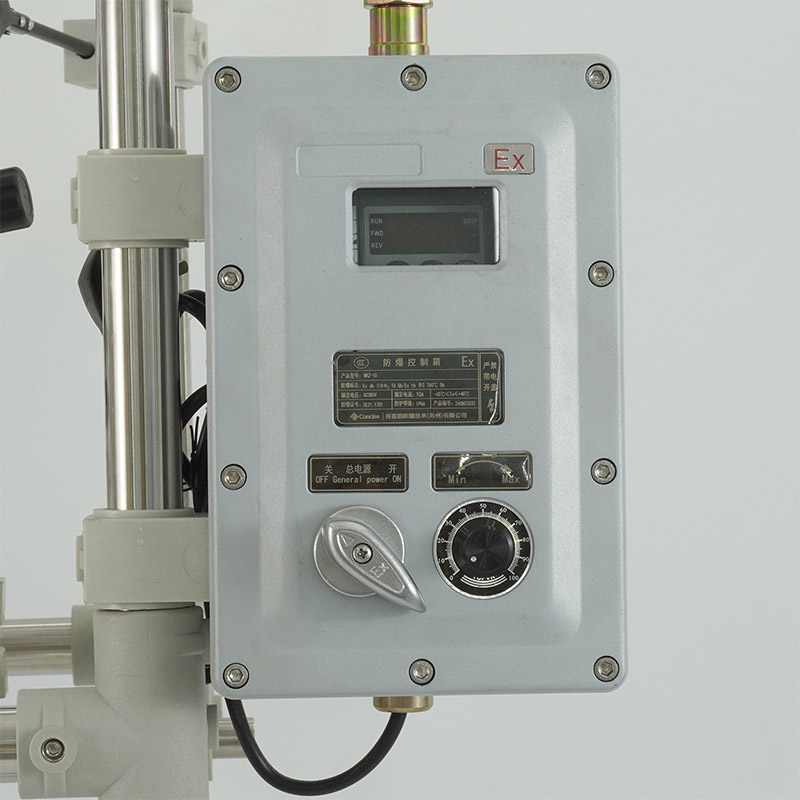

Designed with explosion-proof motor, control box, and wiring to safely handle flammable chemicals such as ethanol, hexane, acetone, and methanol in industrial and laboratory environments.

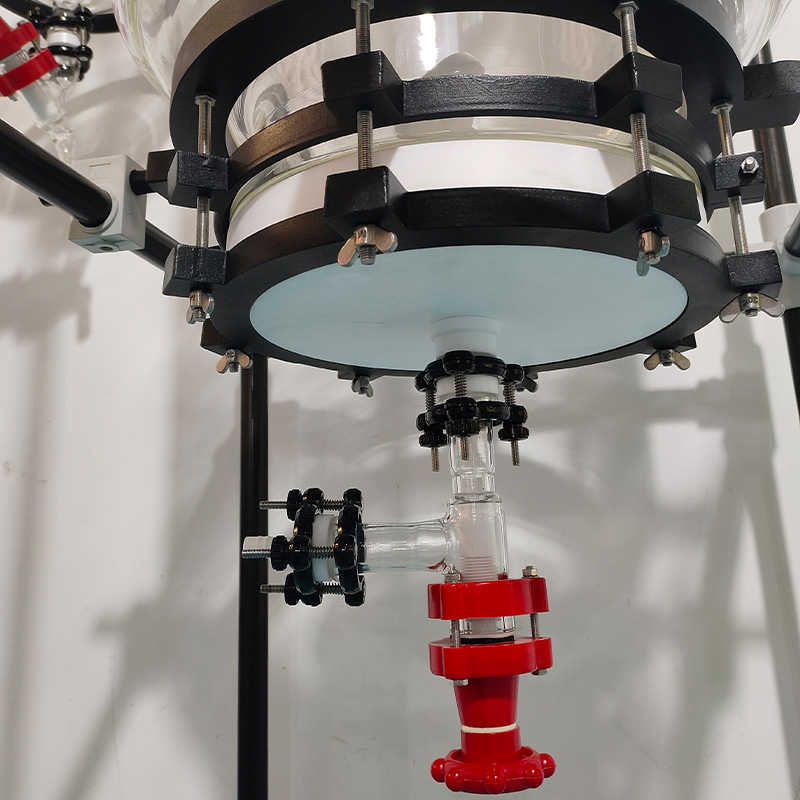

2.Solid Phase Processing Ready
Designed to handle heterogeneous solid–liquid reactions for pharmaceutical and chemical workflows.

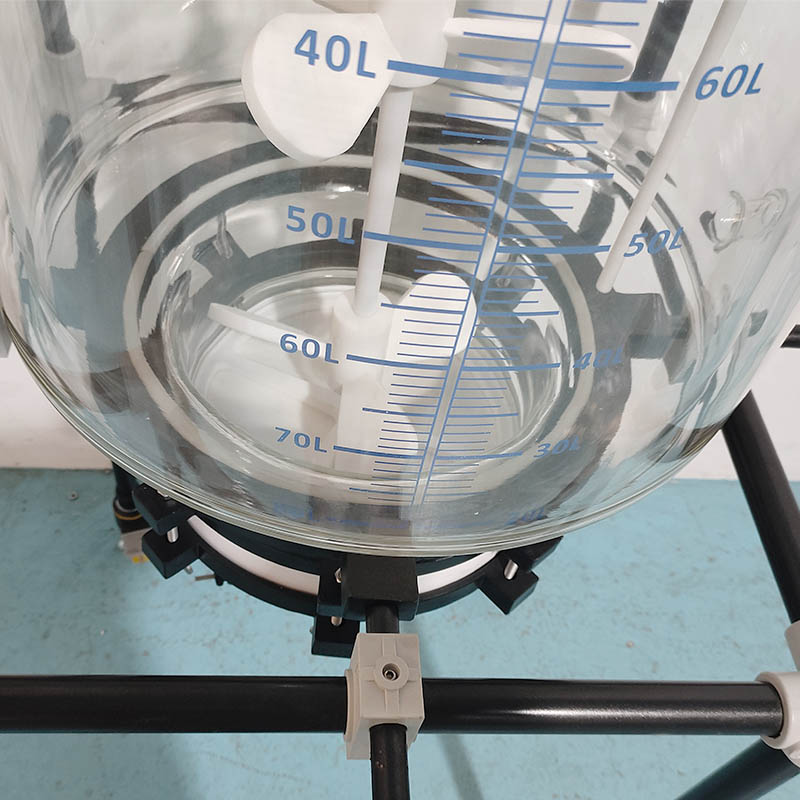

3.High-Transparency Borosilicate Glass
Allows full visibility of reaction progress and is highly resistant to thermal shock and corrosive agents.
4.Industrial-Grade Durability and Corrosion Resistance
The glass body is resistant to strong acids, organic solvents, and reactive compounds, while allowing full visibility for monitoring complex reaction dynamics.
5.Highly Configurable for Advanced Workflows
Easily integrates with vacuum systems, reflux condensers, collection vessels, and dosing pumps, supporting multi-step operations like distillation, reflux, and solvent recycling.
6.Heavy-Duty Frame with Explosion-Proof Mobility

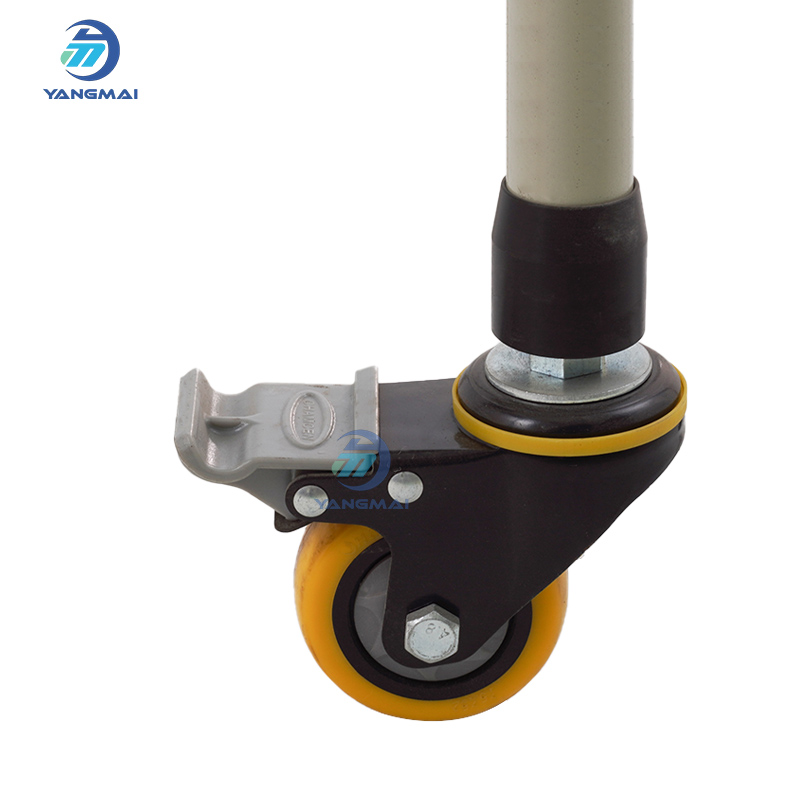

Built on a reinforced anti-corrosive frame with removable anti-corrosion casters, this reactor offers stability and safe mobility in demanding chemical environments.
