The 50L jacketed glass solid phase reactor is designed for controlled laboratory synthesis and chemical processing. Its integrated collection bottle ensures efficient product separation during solid phase reactions.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
High-Capacity Reaction Volume
Reliable Stirring And Mixing System
Accept customized design
Model :
YMGFR-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

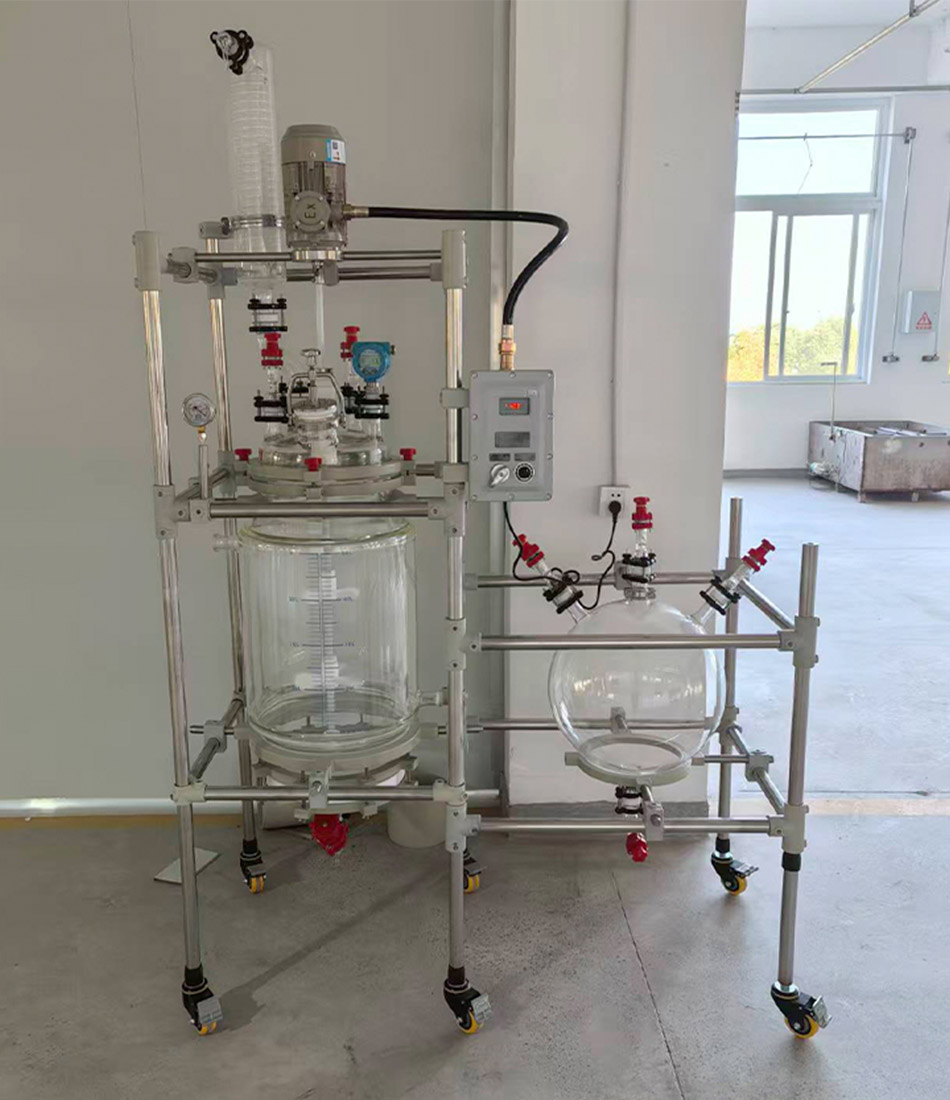

The 50L Explosion Proof Jacketed Solid Phase Glass Reactor with 20L Collecting Bottle by Hefei Yangmai Technology Instrument Co., Ltd is developed for advanced laboratory and pilot-scale chemical reactions. Its jacketed structure allows precise temperature regulation when connected to heating or cooling systems, enabling stable reaction conditions for solid phase synthesis, catalytic reactions, and pharmaceutical compound development..
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |

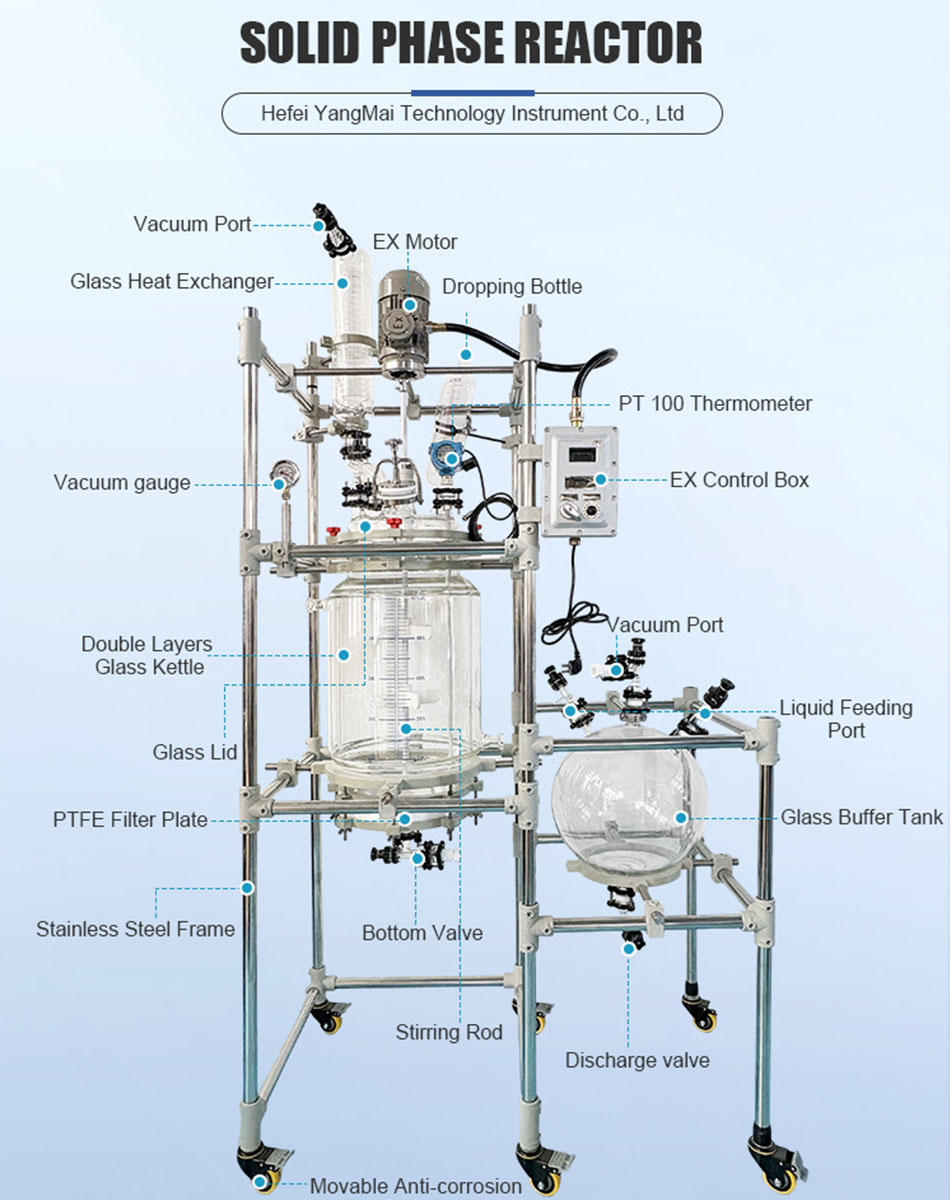

1. Integrated Solid Phase Reaction Structure
The reactor is specially designed for solid phase reactions, allowing efficient mixing and reaction between solid materials and solvents in laboratory synthesis processes.
2.High Borosilicate Glass Construction
Made from durable high borosilicate glass, the system provides excellent chemical resistance and thermal stability while maintaining clear visibility of reaction conditions.
3.Double Jacket Temperature Control
The jacketed vessel supports connection with heating or cooling circulators, enabling precise temperature management during sensitive chemical or pharmaceutical reactions.
4.Collection Bottle Design
Equipped with a detachable collection bottle to facilitate the recovery and separation of reaction products during solid phase processing.
5.Modular Laboratory Configuration
Multiple ports on the reactor lid allow flexible installation of feeding funnels, condensers, thermometers, or vacuum connections for various experimental setups.
6.Suitable for Multiple Chemical Applications
Widely used in peptide synthesis, polymer research, organic synthesis, and pharmaceutical compound development.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
