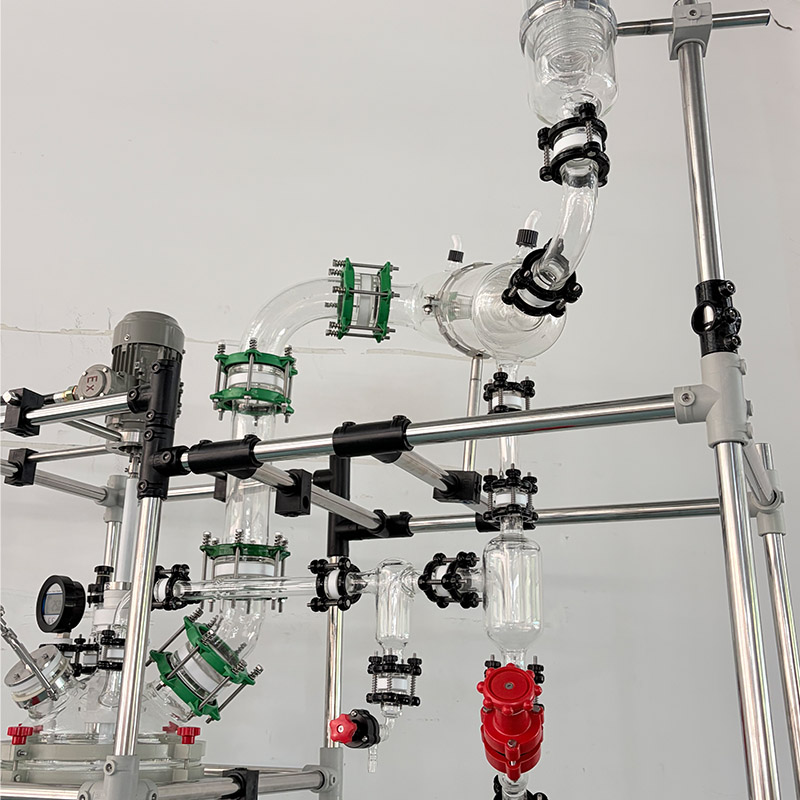

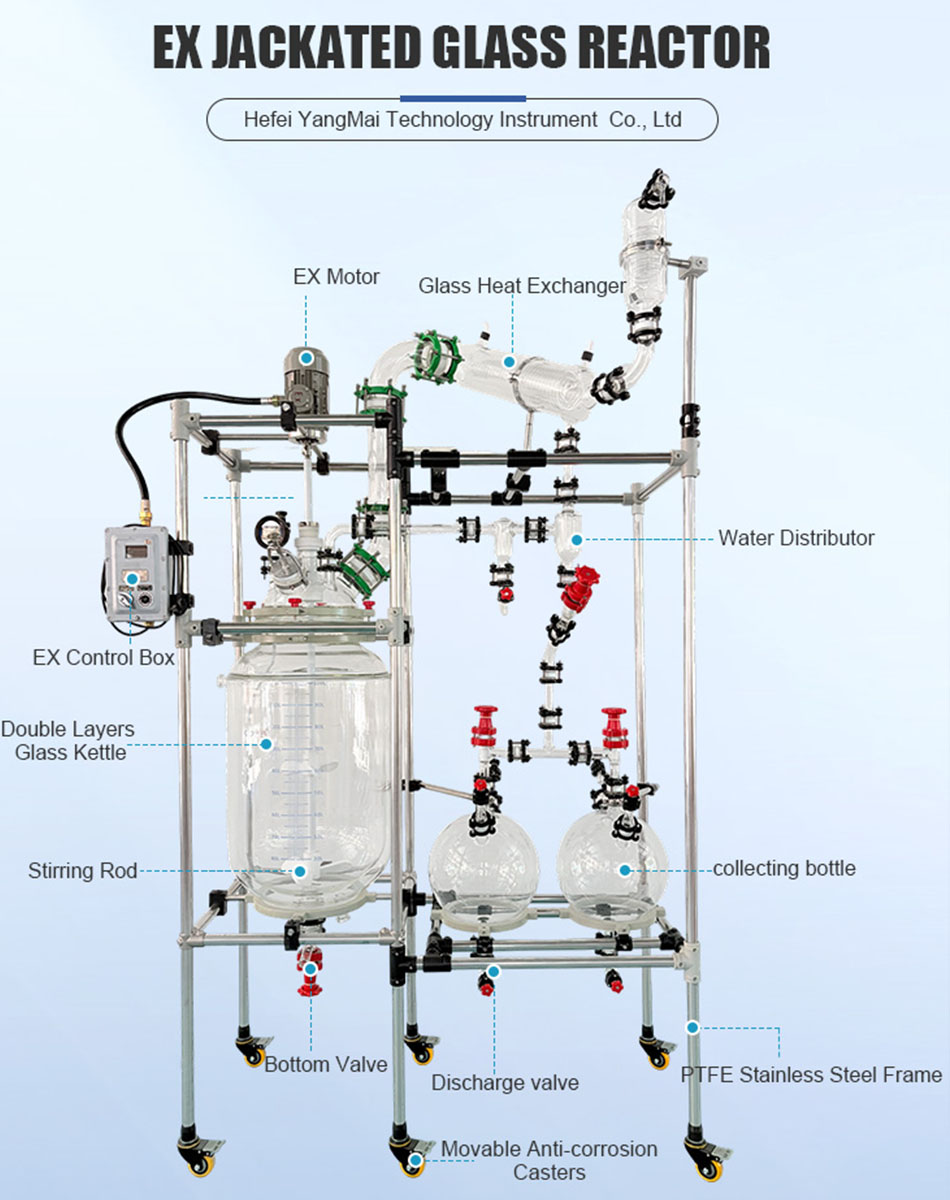

100L Glass Distillation Reactor features a jacketed vessel and built-in condenser, the reactor enables efficient and controlled distillation of complex chemical mixtures.
Excellent Chemical Resistance – Resistant to most acids, alkalis, and organic solvents.
Wide Temperature Range – Operating range: -100°C to +300°C.
Large Reaction Capacity – Suitable for laboratory and pilot-scale applications.
Reliable Stirring System – Ensures stable and uniform mixing.
Customizable Design – Configuration can be tailored to process requirements.
Model :
YMGDR-100EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The Glass Distillation Reactor from Hefei Yangmai Technology Instrument Co., Ltd. combines heating, condensation, and separation functions in one integrated system. Constructed from durable borosilicate glass, it provides strong thermal stability and chemical resistance for demanding processes. The system supports vacuum distillation and fractional separation with precise temperature regulation, making it suitable for pharmaceutical research, organic synthesis, and pilot-scale applications.
| Name | Technical Parameter |
| Distillation Reactor | 1L 5L 10L 20L 50L 100L 150L 200L |
|
Tower diameter
|
DN50、DN80、DN100、EN150、DN180、DN230、DN300、DN500 |
|

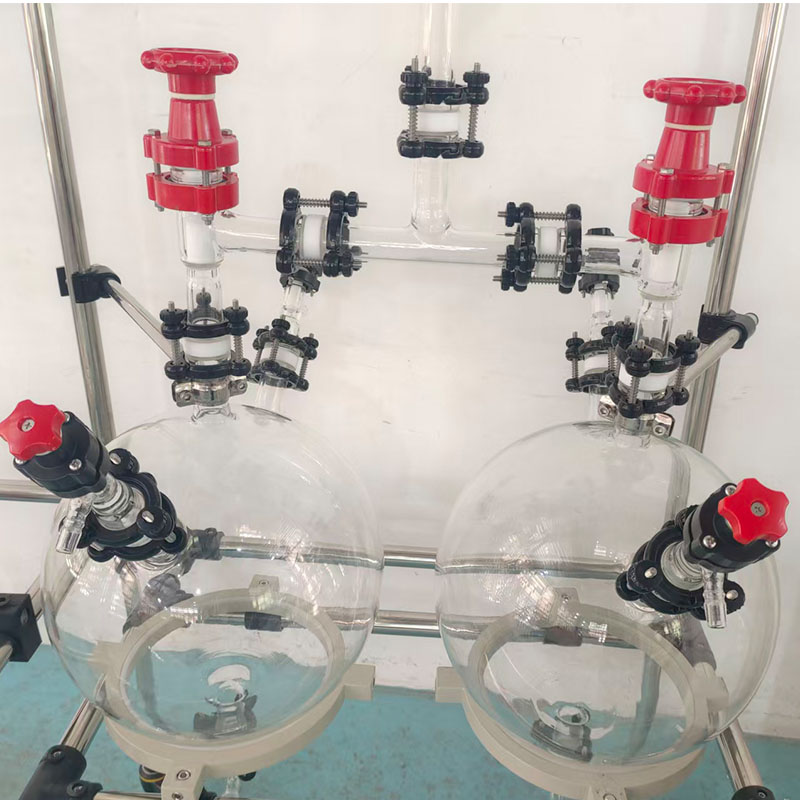

Recieving bottle
|
10L/5L 20L/10L 30L/20L 50L/30L |
|
Distillation tower
|
Multi-stage packed tower, can be stacked up to 8m Glass
|
|
Packing
|
Glass packing/ceramic structured packing/stainless steel packing/PTFE packing etc.
|
|
Condenser area
|
0.5~10m2 |
|
Pressure
|
Normal pressure~10mmHg
|
|
Temperature range
|
-100℃~300 10℃
|
1. Durable Borosilicate Construction
Made from 3.3 borosilicate glass, the reactor offers excellent chemical compatibility with a wide range of solvents and reagents.
2. Controlled Reaction Conditions
Heating, cooling, agitation, feeding, and vacuum functions can be integrated to maintain stable and precise operating conditions.
3. Versatile Process Applications
Suitable for chemical synthesis, extraction, crystallization, distillation, evaporation, formulation, and various other processes.
4. Flexible Custom Configuration
Dimensions, connection ports, stirring systems, temperature control, and auxiliary components can be tailored to specific requirements.
5. Integrated System Supply
Yangmai provides complete reactor solutions with compatible circulators, vacuum pumps, condensers, feeding systems, and other accessories.
RFQ
Q: Do you offer explosion-proof models?
A: Yes. Explosion-proof glass reactors and temperature-control systems are available for applications requiring explosion-proof configurations.
Q: What is the warranty?
A: We provide a 1-year warranty for manufacturing and material defects under normal operating conditions. Damage caused by improper operation or human factors is not covered.
Q: Can you provide a complete system?
A: Yes. We can supply complete systems including glass reactors, heating and cooling circulators, condensers, vacuum pumps, feeding systems and other accessories.
Q: Do you accept customized orders?
A: Yes. As a manufacturer, we support customized specifications and complete process systems based on your application requirements.
Q: How can I choose the right reactor?
A: Please provide the required volume, working temperature, vacuum/pressure conditions, materials being processed and stirring requirements. Our engineers can recommend a suitable configuration.
