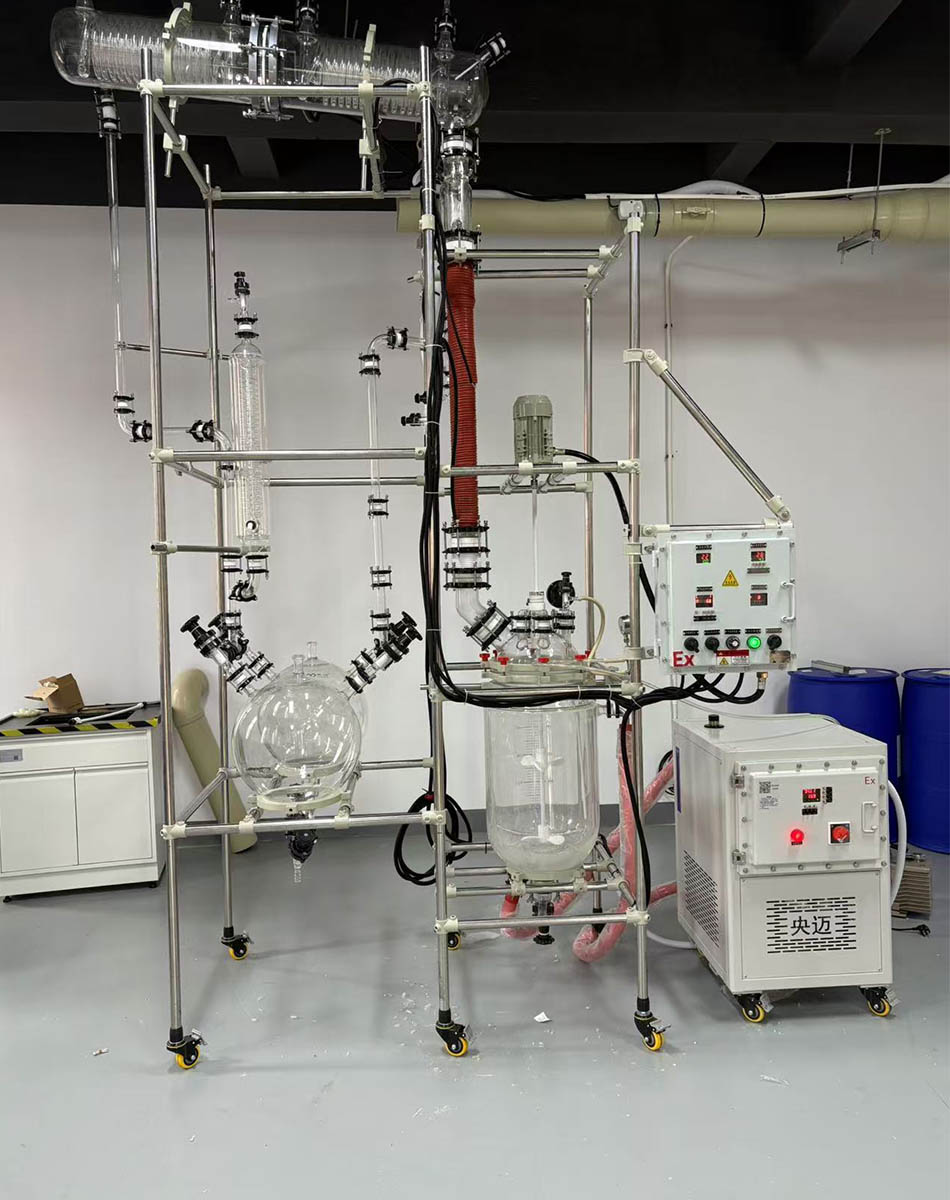

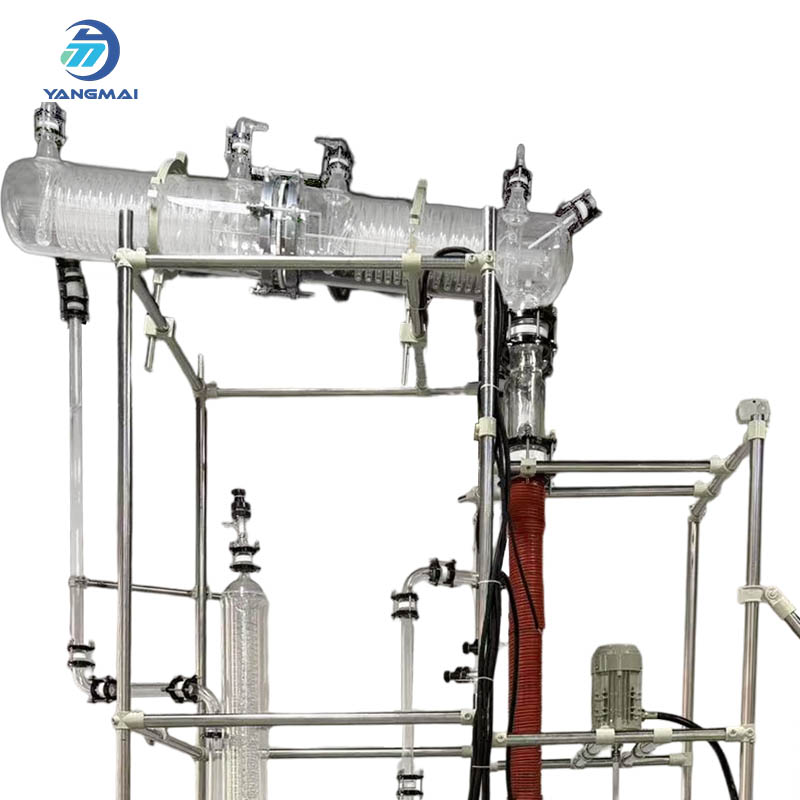

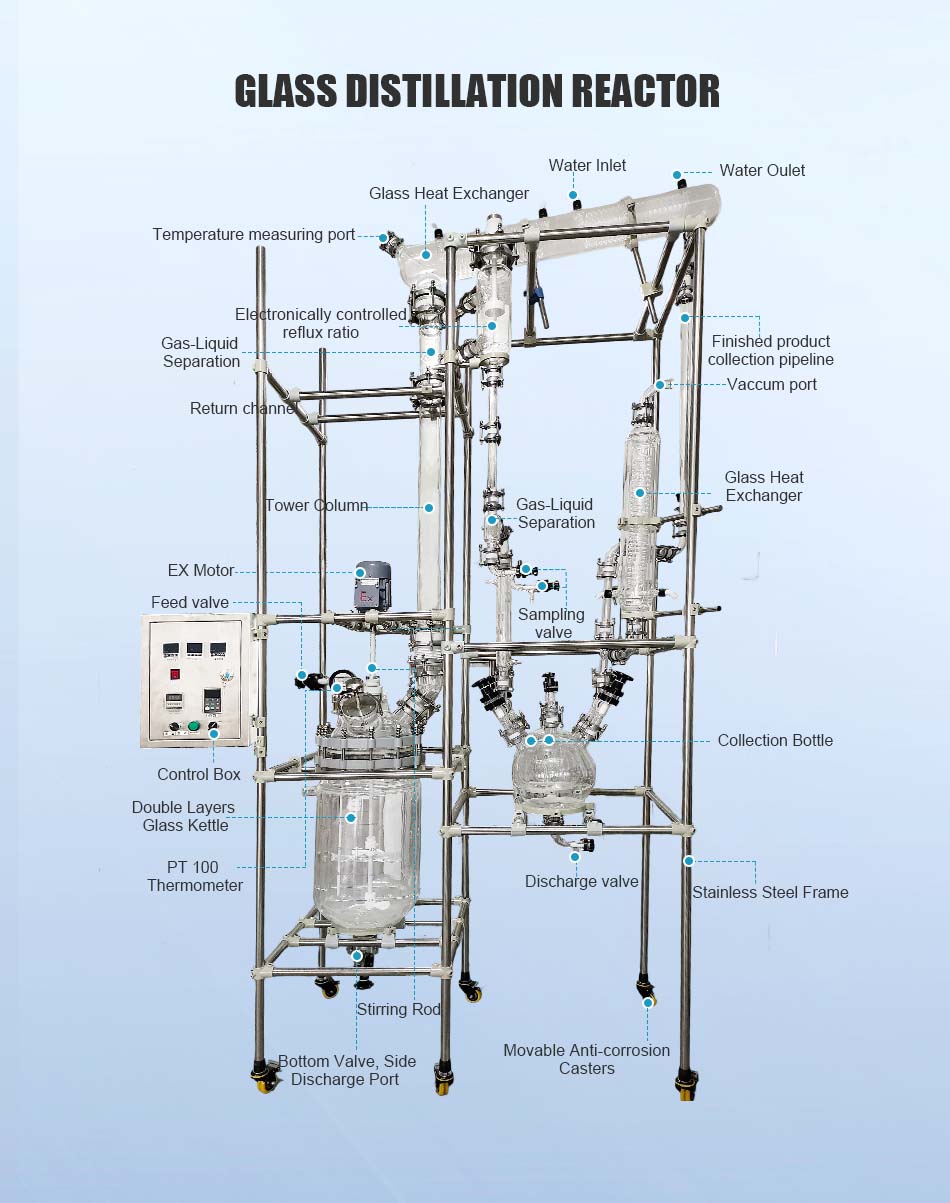

50L Glass Distillation Reactor is designed with a jacketed body and integrated condenser, this reactor ensures efficient distillation of complex chemical mixtures under controlled conditions.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
High-Capacity Reaction Volume
Reliable Stirring And Mixing System
Accept customized design
Model :
YMDR-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The Glass Distillation Reactor by Hefei Yangmai Technology Instrument Co., Ltd integrates heating, condensation, and separation in a single unit. Made from borosilicate glass, it offers excellent thermal and chemical resistance, ideal for applications in pharmaceutical research, organic chemistry, and pilot plant operations. The reactor supports vacuum distillation and fractional separation with accurate temperature control.
| Name | Technical Parameter |
| Distillation Reactor | 1L 5L 10L 20L 50L 100L 150L 200L |
|
Tower diameter
|
DN50、DN80、DN100、EN150、DN180、DN230、DN300、DN500 |
|
Recieving bottle
|
10L/5L 20L/10L 30L/20L 50L/30L |
|

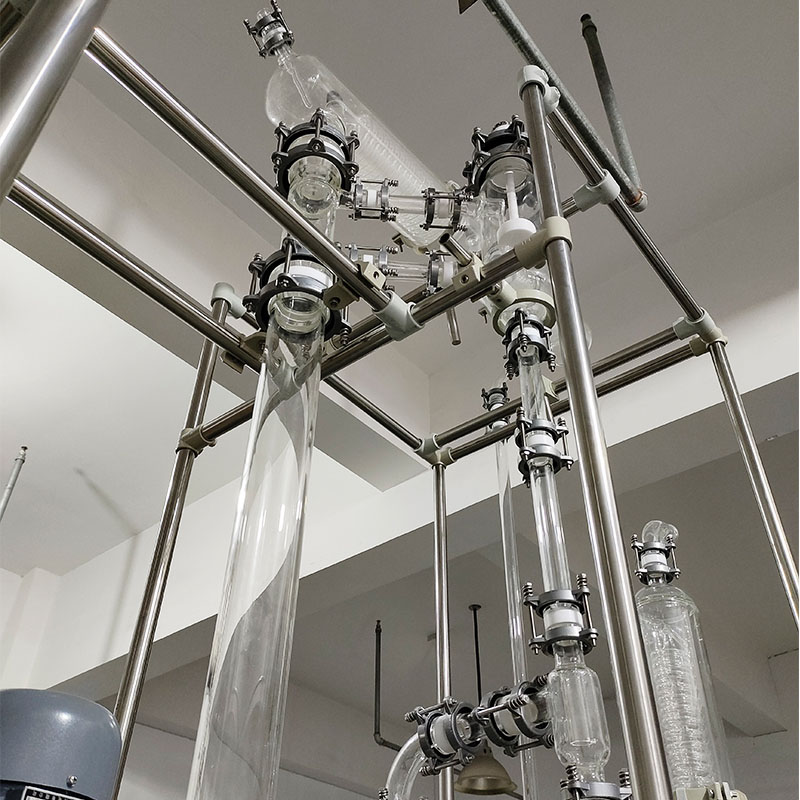

Distillation tower
|
Multi-stage packed tower, can be stacked up to 8m Glass
|
|
Packing
|
Glass packing/ceramic structured packing/stainless steel packing/PTFE packing etc.
|
|
Condenser area
|
0.5~10m2 |
|
Pressure
|
Normal pressure~10mmHg
|
|
Temperature range
|
-100℃~300 10℃
|
1.Borosilicate Glass Construction
Provides exceptional resistance to thermal shock and corrosive chemicals, ideal for demanding chemical reactions.
2.Jacketed Design for Thermal Control
Enables precise heating and cooling via circulating fluids, ensuring stable and efficient distillation.

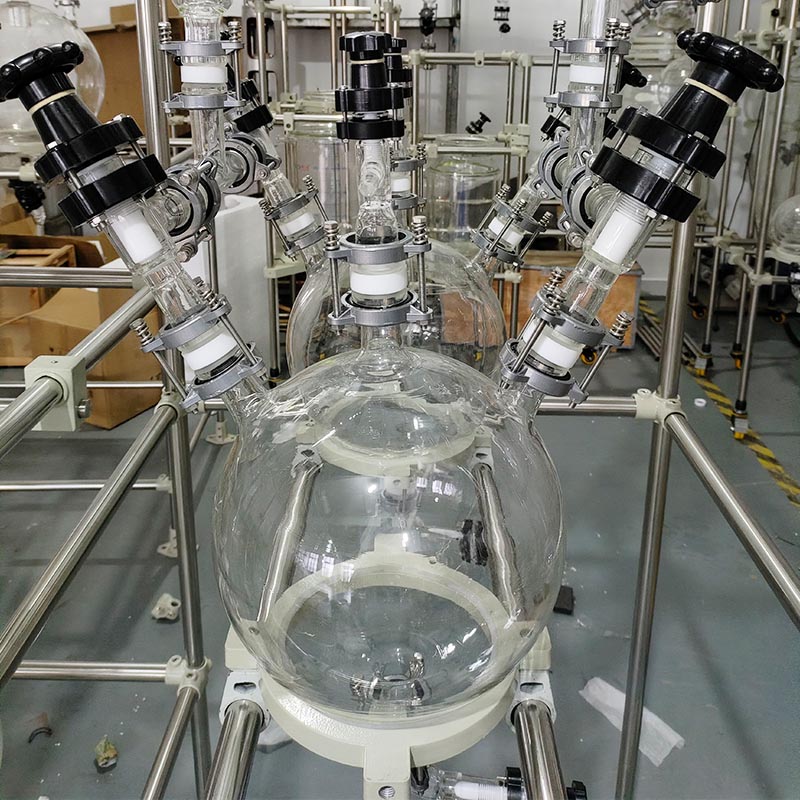

3.Integrated Condenser and Receiver Flask
Facilitates effective vapor condensation and collection, supporting fractional separation.
4.Vacuum-Compatible System
Supports both vacuum and atmospheric pressure operation for handling heat-sensitive materials.
5.Modular Expansion
Easily connects with chillers, heaters, vacuum pumps, and reflux dividers for scalable process control.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
