The glass wiped film evaporator uses a rotating scraper to form a uniform thin film, enabling rapid heat transfer and efficient separation of components under vacuum conditions.
Feature:
High-Speed Film Scraping
Vacuum-Compatible Design
Visual Film Monitoring
Corrosion-Resistant Glass
Short Residence Time
Model :
YMSFE-60Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted

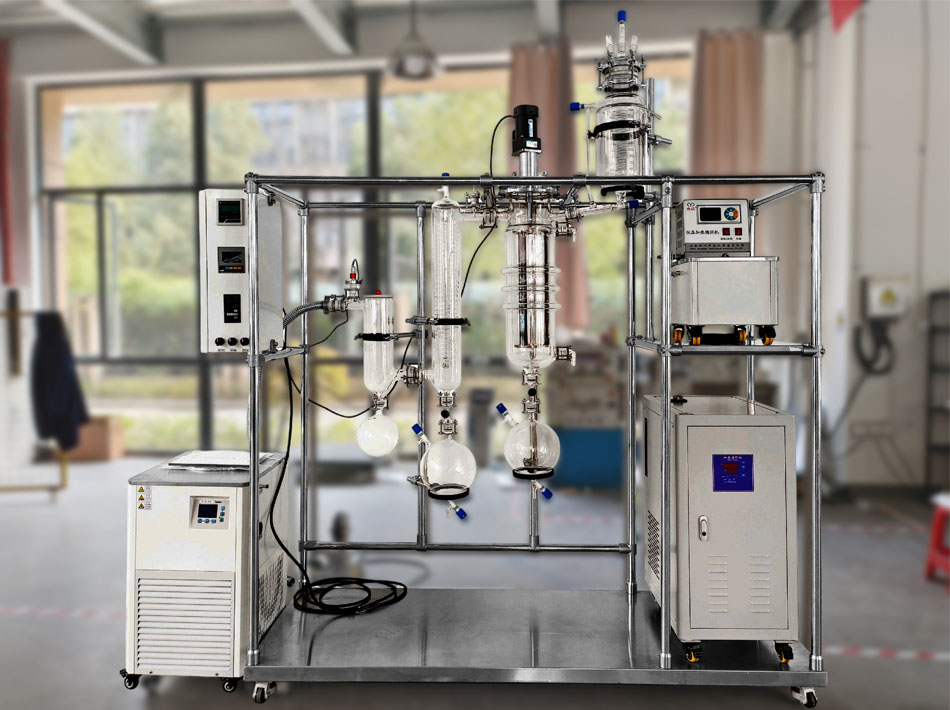

The Glass Wiped Film Evaporator by Hefei Yangmai Technology Instrument Co., Ltd utilizes a rotating scraper system to spread materials into a uniform thin film along the heated surface, significantly enhancing heat transfer efficiency. Materials are introduced from the top and distributed radially onto the heating surface. As the scraper rotates, it pushes the film downward in a spiral motion, maintaining constant agitation and minimizing thermal degradation. This turbulence prevents fouling and scaling, making the system ideal for viscous and heat-sensitive substances. The light fractions are evaporated upward and collected via a vapor-liquid separator connected to a condenser, while heavier residues exit from the conical bottom. Commonly used in pharmaceuticals, essential oil processing, resins, food additives, and fine chemicals.
| Model |
Evaporation area(m2)
|
Condensation area(m2) | Main evaporator diameter(mm) | Feed tank capacity(L) | Processing capacity(KG/h) | Motor power | Max speed R/min |
| YMSFE-60 | 0.06 | 0.15 | 60 | 1 | 0.5~3.0 | 220V/90W | 300 |
| YMSFE-80 | 0.1 | 0.2 | 80 | 1.5 | 1.0~5.0 | 220V/120W | 300 |
| YMSFE-100 | 0.15 | 0.3 | 100 | 2 | 2.0~8.0 | 220V/120W | 300 |
| YMSFE-150 | 0.25 | 0.4 | 150 | 2 | 3.0~15.0 | 220V/120W | 300 |
| YMSFE-200 | 0.35 | 0.5 | 200 | 5 | 5.0~20.0 | 220V/200W | 300 |
| YMSFE-230 | 0.5 | 0.5 | 230 | 5 | 8.0~30.0 | 220V/200W | 300 |
The rotating scraper rapidly forms a thin film, ensuring fast and efficient evaporation.
With a residence time as low as 10–50 seconds, it's perfect for thermally sensitive substances.
Handles viscous, crystallizing, scaling, and suspended solid-containing liquids with ease.
Made from high borosilicate glass for observing film behavior and vaporization in real time.
Simple structure allows for quick cleaning, convenient inspection, and reliable maintenance.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
