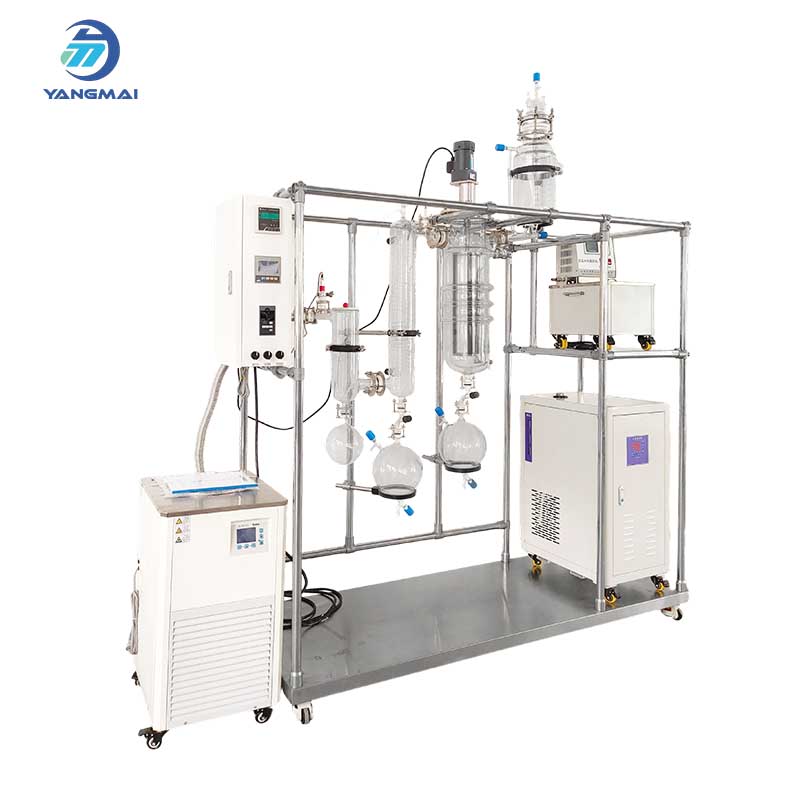

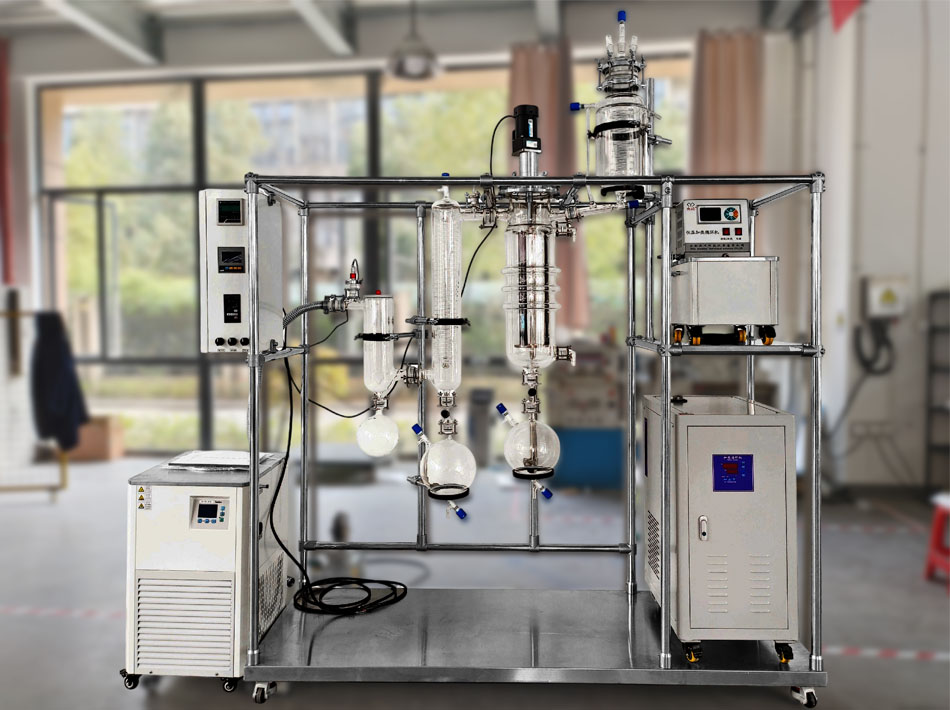

The Glass Scraped Film Evaporator is Ideal for thermally sensitive materials, this evaporator ensures even distribution and smooth downward flow of liquids, preventing coking while maximizing evaporation efficiency.
Feature:
Forced Liquid Film Formation
Ultra-Short Thermal Exposure
Real-Time Glass Observation
Broad Chemical Compatibility
Fast Cleaning Modular Build
Model :
YMSFE-100Order(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
Accepted

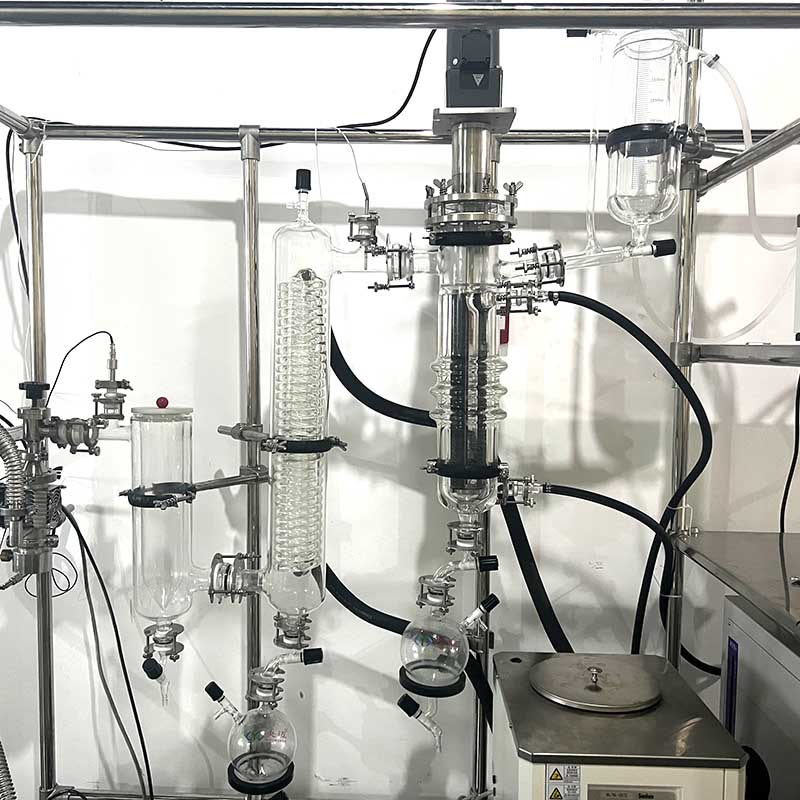

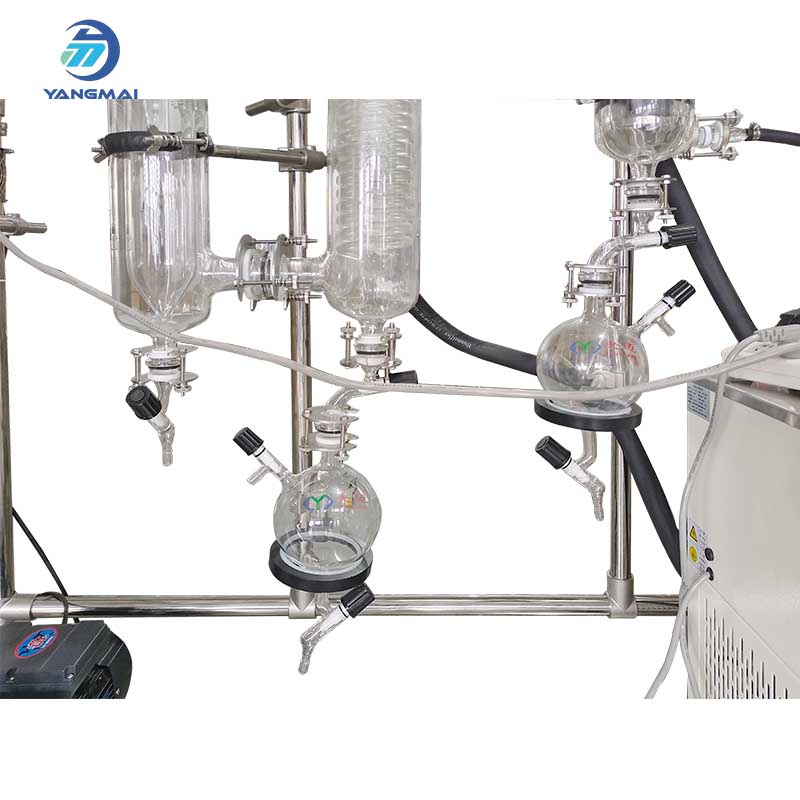

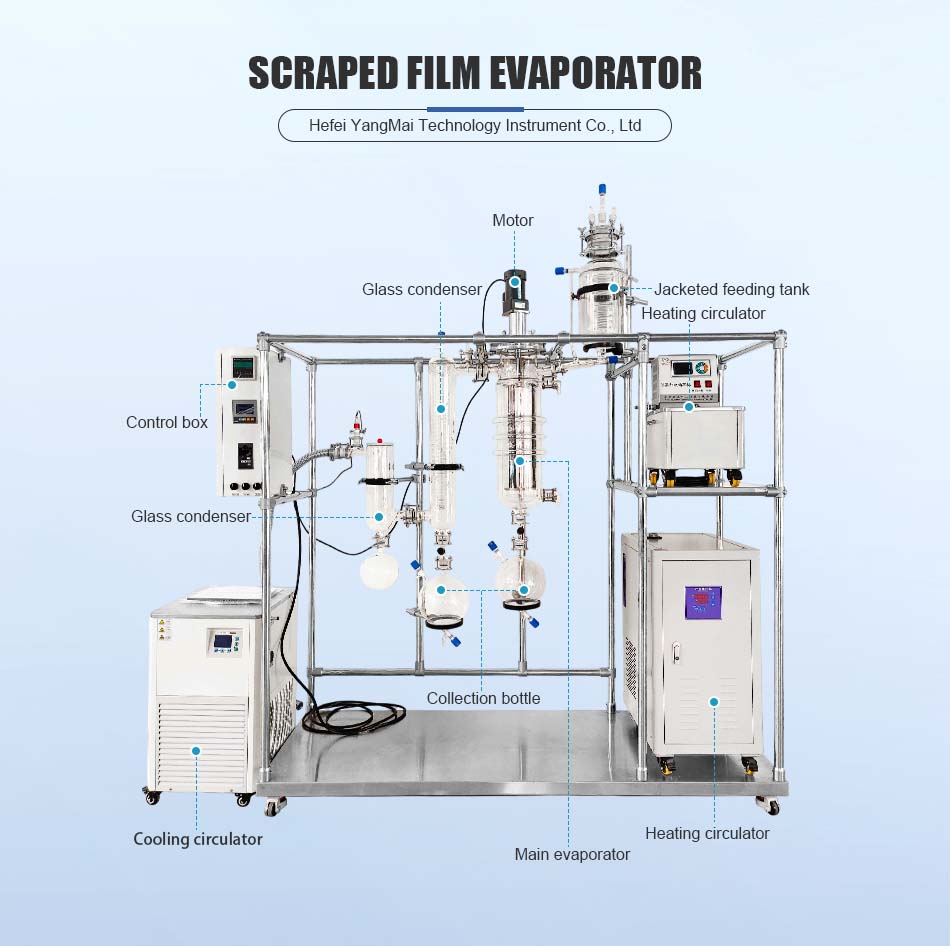

The Glass Scraped Film Evaporator by Hefei Yangmai Technology Instrument Co., Ltd is designed for continuous thermal separation, the glass scraped film evaporator introduces material from the top and distributes it evenly using a precision distributor. The rotating scraper forms a rapidly flowing thin film, which enhances heat exchange while preventing residue buildup. This method allows for efficient evaporation at lower temperatures, preserving compound integrity. Vapors rise and pass through a vapor-liquid separator into an external condenser, while heavier, non-volatile components are collected at the base. The system is especially effective for processing herbal extracts, oils, bio-compounds, and other thermally sensitive solutions. Its transparent borosilicate structure provides excellent chemical resistance and real-time monitoring.
| Model |
Evaporation area(㎡)
|
Condensation area(m2) | Main evaporator diameter(mm) | Feed tank capacity(L) | Processing capacity(KG/h) | Motor power | Max speed R/min |
| YMSFE-60 | 0.06 | 0.15 | 60 | 1 | 0.5~3.0 | 220V/90W | 300 |
| YMSFE-80 | 0.1 | 0.2 | 80 | 1.5 | 1.0~5.0 | 220V/120W | 300 |
| YMSFE-100 | 0.15 | 0.3 | 100 | 2 | 2.0~8.0 | 220V/120W | 300 |
| YMSFE-150 | 0.25 | 0.4 | 150 | 2 | 3.0~15.0 | 220V/120W | 300 |
| YMSFE-200 | 0.35 | 0.5 | 200 | 5 | 5.0~20.0 | 220V/200W | 300 |
| YMSFE-230 | 0.5 | 0.5 | 230 | 5 | 8.0~30.0 | 220V/200W | 300 |

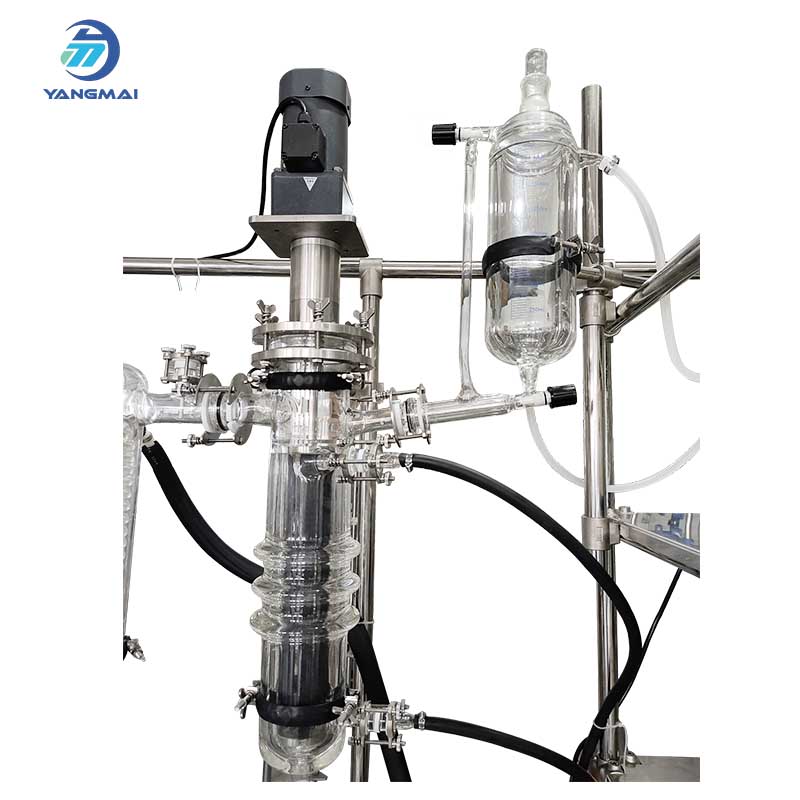

The rotating scraper distributes the material into a uniform thin layer, maximizing surface area for heat exchange.
Ideal for heat-sensitive materials, the typical residence time ranges from 10 to 50 seconds.
Supports high-viscosity liquids, crystallizing solutions, and compounds prone to fouling or degradation.
The borosilicate glass body ensures excellent chemical resistance and allows visual monitoring of liquid film and vapor flow.
The modular, open design simplifies disassembly, cleaning, and daily operational upkeep.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
