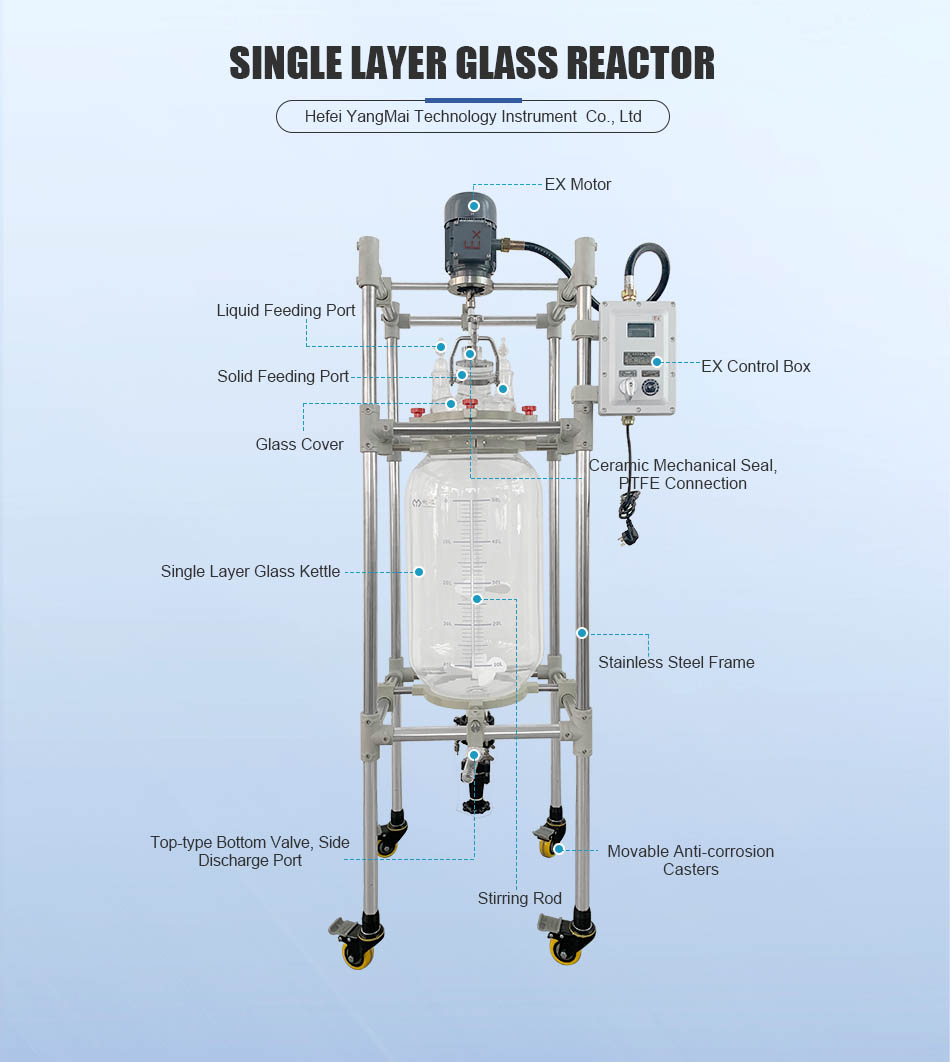

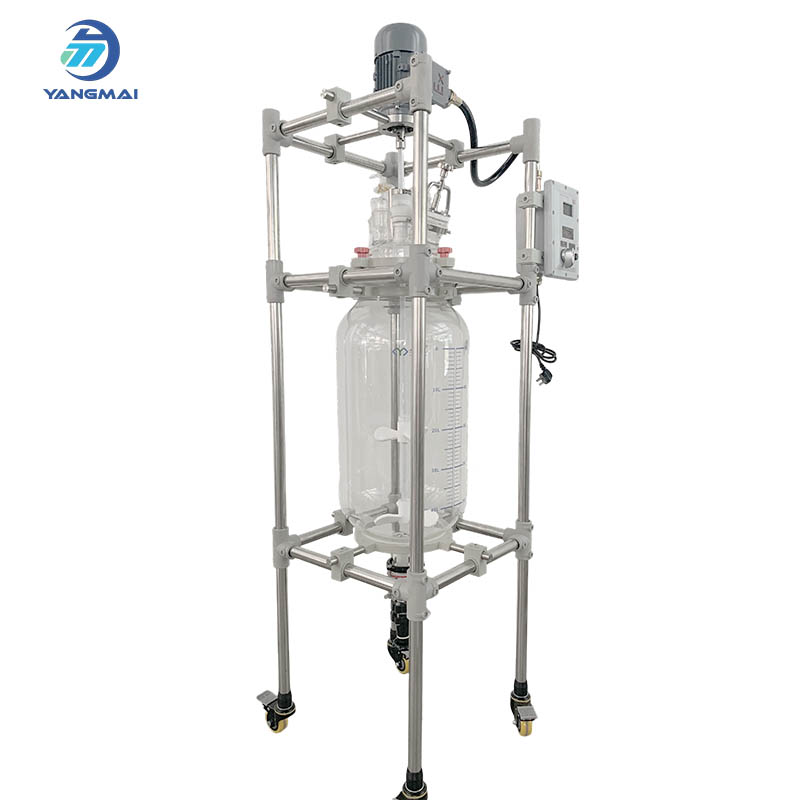

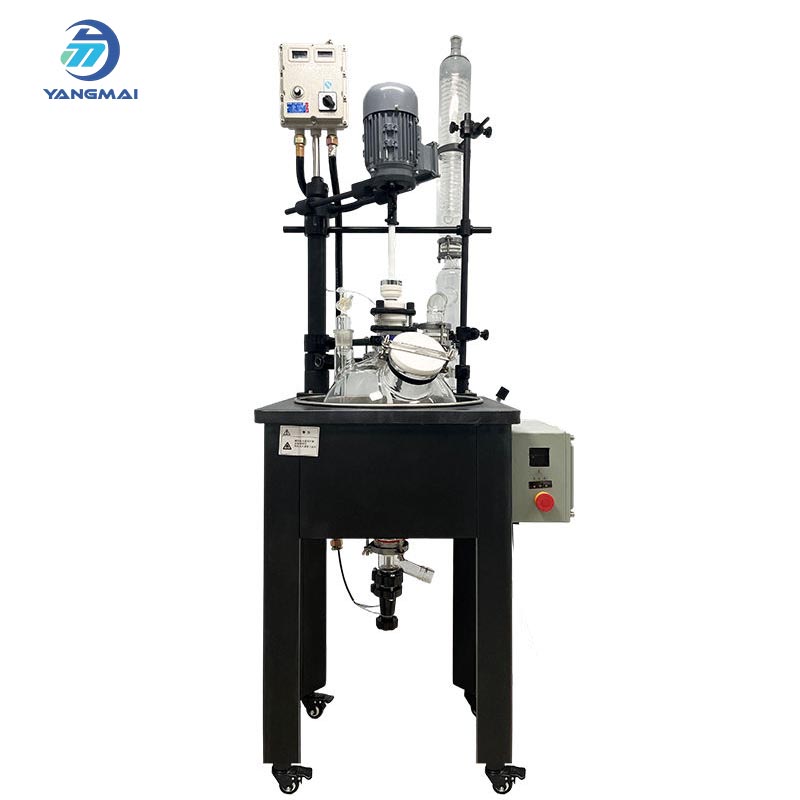

The 50L single-layer glass reactor is engineered for safe and visible chemical reactions. Ideal for organic synthesis, extraction, and solvent recovery processes.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃

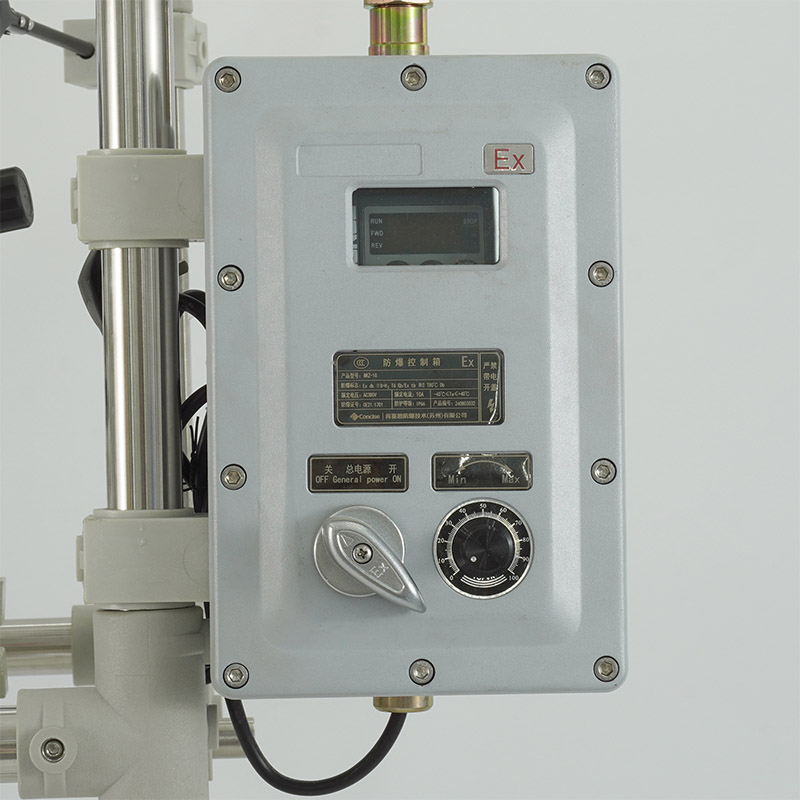

Explosion-Proof Motor
Solvent Resistant Borosilicate Glass
Heavy-Duty Steel Frame
Accept customized design
Model :
YMSGR-50EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ
The 50L Single Layer Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd is tailored for laboratory and industrial use, offering exceptional transparency for process observation and safety. Designed with borosilicate glass, it withstands strong solvents, acids, and thermal shock, making it ideal for synthesis, crystallization, distillation, and extraction. The jacketed structure allows precise temperature regulation via thermal fluid systems, supporting operations from -80°C to 250°C. Its explosion-proof configuration and robust frame ensure safe performance in volatile solvent environments.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
Made from borosilicate glass, the reactor provides full visibility of internal chemical reactions, ensuring precision and process control.
The 200L reactor volume supports pilot-scale synthesis, making it suitable for chemical extraction, purification processes, and small-scale manufacturing environments.
The thermal jacket allows heating and cooling from -80°C to 250°C using compatible circulating systems for diverse reactions.

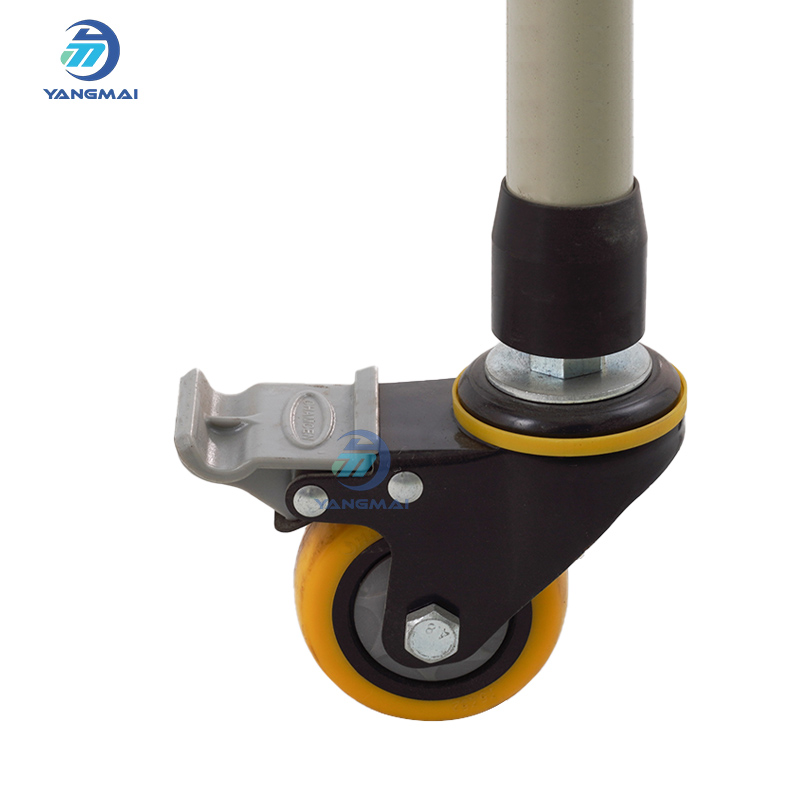

Built on a reinforced steel frame with lockable casters for secure mobility and positioning in lab or industrial spaces.
Resistant to acid, base, and most organic solvents, enabling use in drug development, compound extraction, or material purification.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
