The 200L Single-Layer Glass Reactor is designed for heating, mixing, and organic extraction processes in labs. Ideal for pilot plant experiments, it ensures chemical compatibility and operational efficiency.
Feature:
Acid and alkali resistant（Except hydrofluoric acid, phosphoric acid, and concentrated alkali solution at high temperature）
Wide temperature range: -100℃~300℃
Efficient Magnetic Stirring
Clear Reaction Visibility
Accept customized design
Model :
YMSGR-200EXOrder(MOQ) :
1 SetLead Time :
10~15 working daysOEM :
AcceptedPower Supply :
220V/50HZ

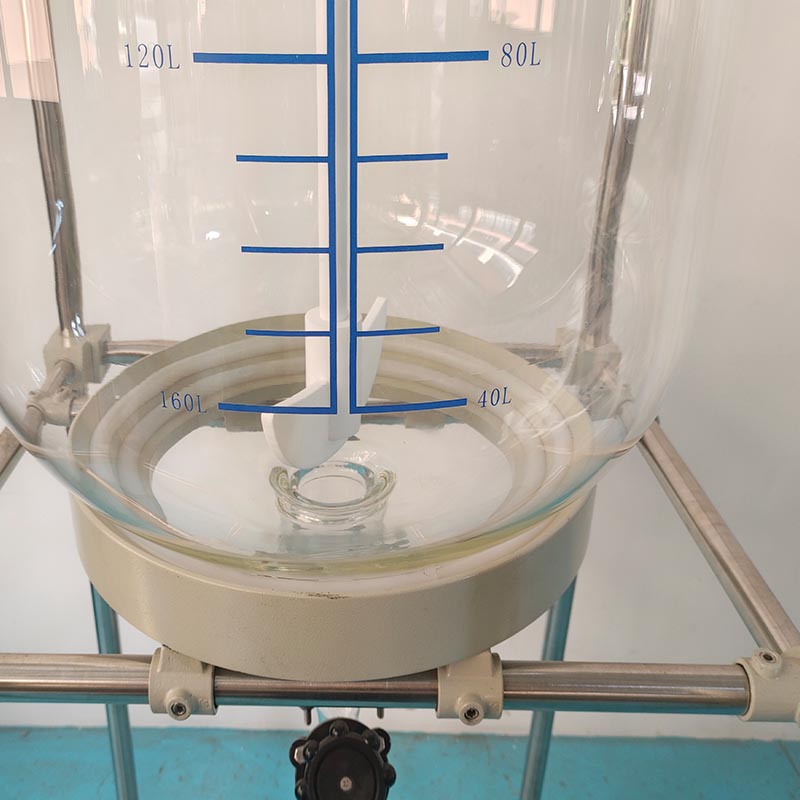

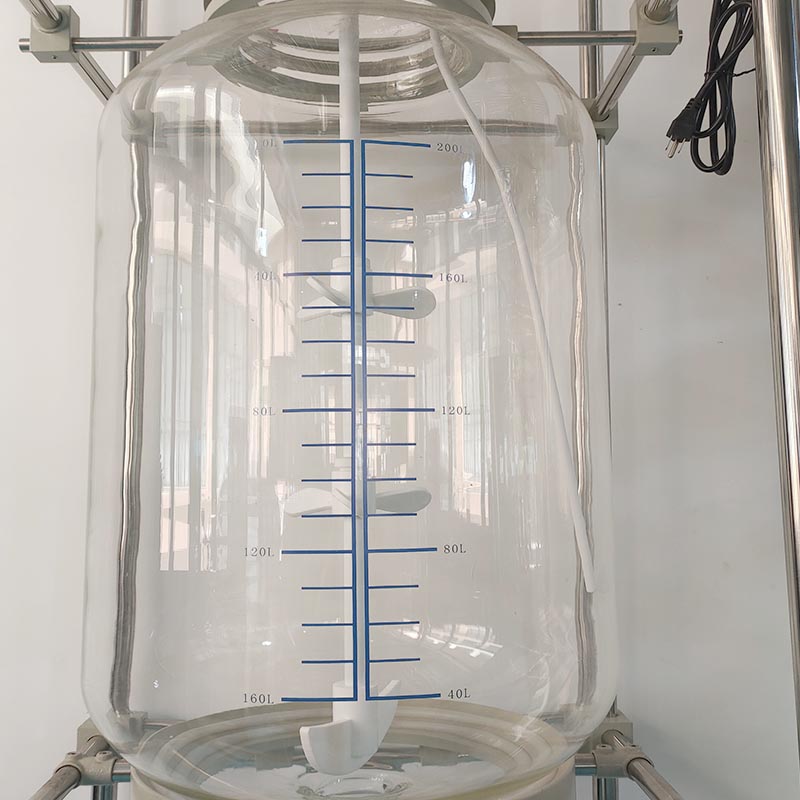

The 200L Explosion-Proof Jacketed Glass Reactor by Hefei Yangmai Technology Instrument Co., Ltd features a large-capacity borosilicate glass vessel ideal for chemical reactions such as organic extraction, compound synthesis, and process development. It supports precise temperature and mixing control, making it suitable for pharmaceutical labs, fine chemical production, and academic research. The transparent design allows clear observation, and its simple structure ensures easy cleaning and operation.
|
Model |
Volume(L) | Motor power（w） | Vaccum degree(Mpa) |
Speed (Ram) |
Torque (Ncm) |
Power supply | Size(Cm) |
| YMGR-01 | 1 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-02 | 2 | 40 | 0.096 | 50~600 | 30 | 220V/50HZ | 32*35*80 |
| YMGR-05EX | 5 | 180 | 0.096 | 50~600 | 44 | 220V/50HZ | 45*45*110 |
| YMGR-10EX | 10 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*120 |
| YMGR-20EX | 20 | 180 | 0.096 | 50~600 | 162 | 220V/50HZ | 50*50*145 |
| YMGR-30EX | 30 | 180 | 0.096 | 50~600 | 210 | 220V/50HZ | 50*50*160 |
| YMGR-50EX | 50 | 180 | 0.096 | 50~600 | 300 | 220V/50HZ | 60*60*180 |
| YMGR-100EX | 100 | 370 | 0.096 | 50~600 | 400 | 220V/50HZ | 70*70*260 |
| YMGR-150EX | 150 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 85*85*290 |
| YMGR-200EX | 200 | 750 | 0.096 | 50~600 | 500 | 220V/50HZ | 90*90*300 |
Equipped with explosion-proof motors, control panels, and electrical components to ensure safe operation when working with volatile solvents such as ethanol, acetone, hexane, or methanol.
The 200L reactor volume supports pilot-scale synthesis, making it suitable for chemical extraction, purification processes, and small-scale manufacturing environments.
Built with durable single-layer borosilicate glass, allowing stable temperature regulation from -80°C to 250°C using external heating or cooling systems.
Offers superior resistance to corrosive agents, acids, and organic solvents while maintaining full transparency for visual tracking of chemical reactions.
Mounted on a chemically coated support frame with lockable, anti-spark wheels, ensuring safety and ease of mobility within labs and production areas.

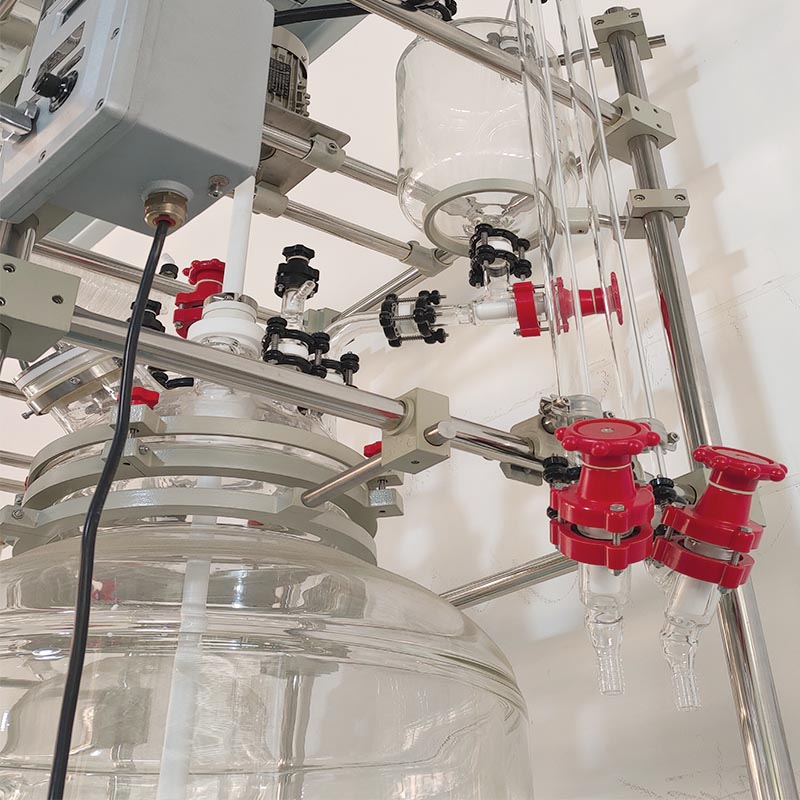

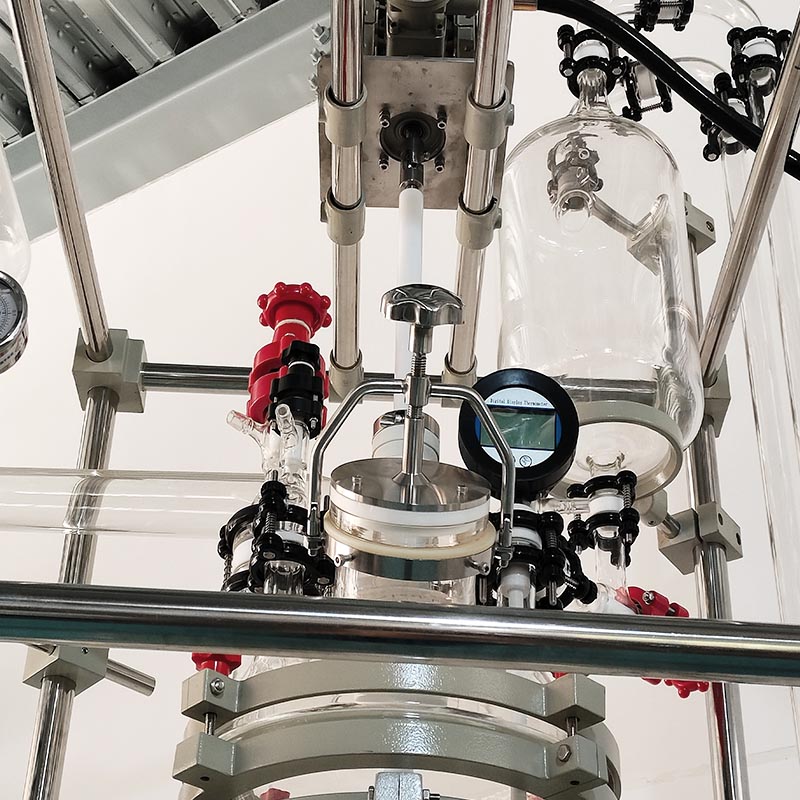

Compatible with additional modules including vacuum pumps, condensers, and dosing equipment, enabling distillation, solvent recovery, and multi-step synthesis in one setup.
RFQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
