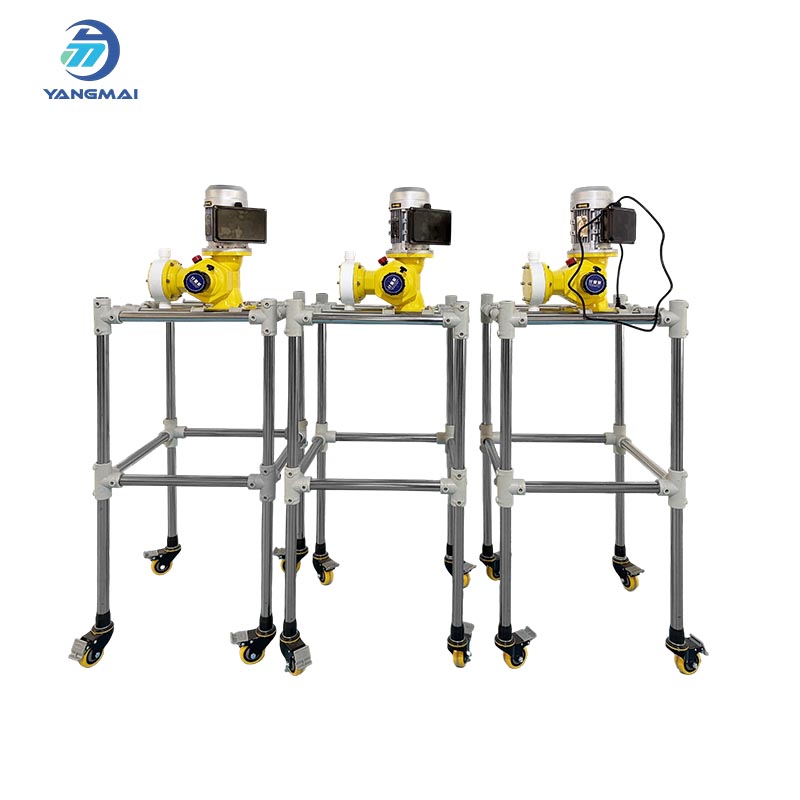

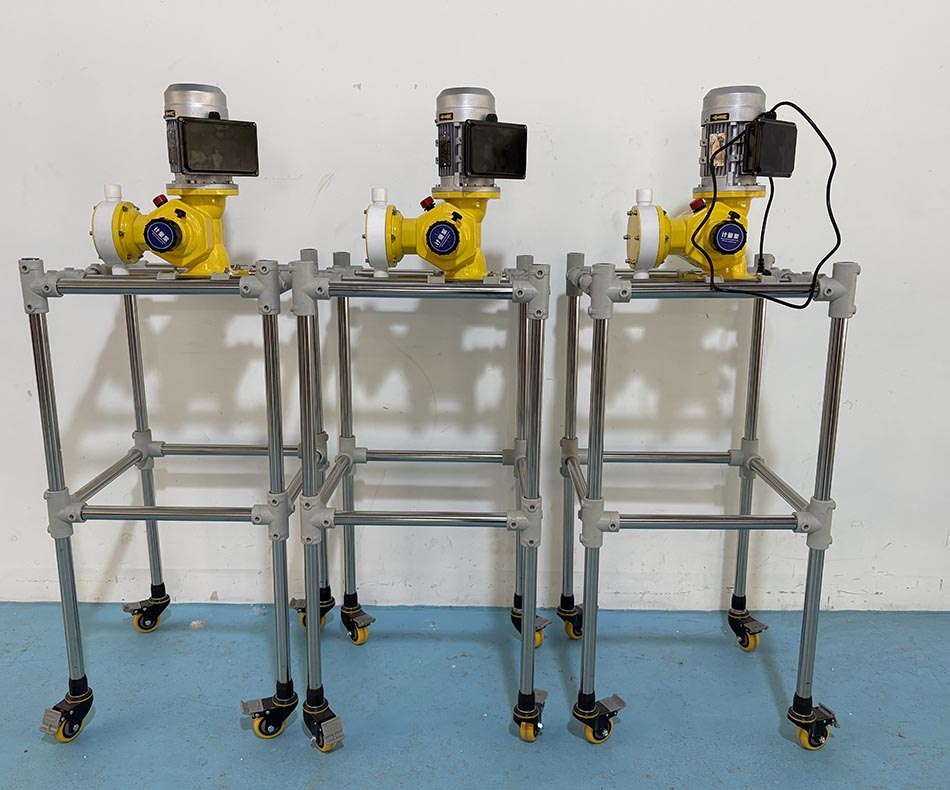

The Diaphragm Metering Pump, also called “membrane Dosing Pump”, moves a precise volume of liquid in a specified time period providing an accurate flow rate. Delivery of fluids in precise adjustable flow rates is sometimes called metering.
Feature:
Higher Metering Precision
High Flow Rate
Energy Saving Design
Model :
YMDMPOrder(MOQ) :
1 SetLead Time :
7 working daysOEM :
Accepted

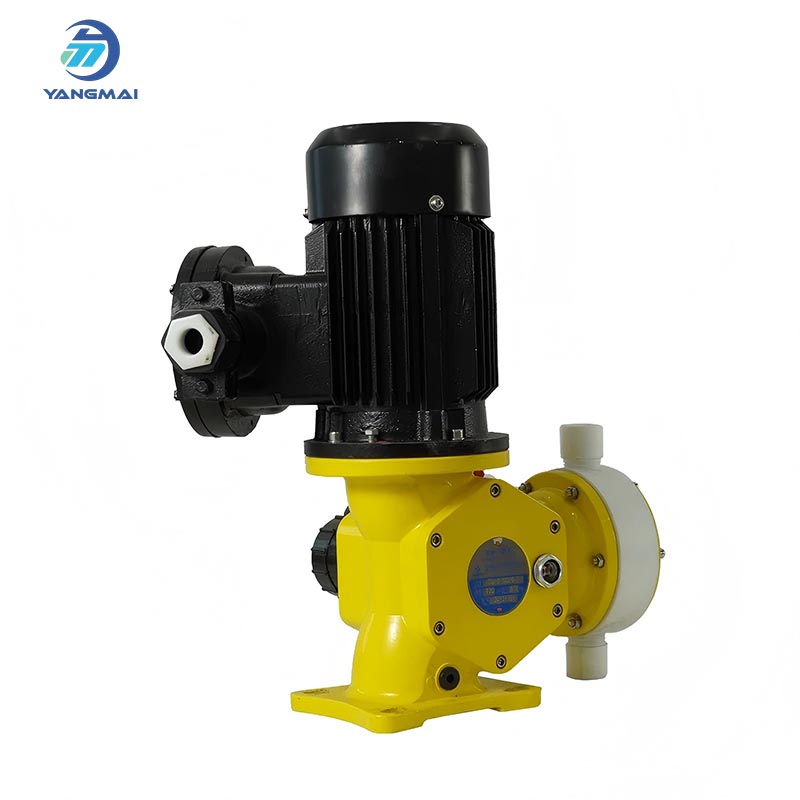

The Diaphragm Metering Pump by Hefei Yangmai Technology Instrument Co., Ltd operates by transmitting a repeated compression and decompression motion to a flexible diaphragm. This design ensures that the liquid never passes through the diaphragm, keeping the fluid completely sealed from external contact. As the diaphragm moves, the chamber volume inside the pump head changes — drawing liquid in through the inlet check valve during decompression and discharging it through the outlet check valve during compression, similar to the principle of piston pumps. Certain diaphragm pumps are also capable of delivering fluid at relatively high discharge pressures.
Flow Range: Qmax up to 180 L/H
Pressure Range: Pmax up to 0.8 MPa
Standard Configuration: Materials: PVC, PVDF/PTFE, 304/316L; Power: 380V/50Hz
Optional Configuration: Variable frequency or explosion-proof motor, special voltage/frequency, customizable pump head material and inlet/outlet connection types
| Model | Flow（L/h) | Pressure（MPa） | Speed(SPM) | Diaphragm Spec(mm) | Motor Power(KW) | Inlet and outlet diameter(mm) | ||
| PVC | PVDF/PTFE | 304/316L | ||||||
| YM15/0.8 | 15 | 0.8 | 48 | 65 | 0.18 | DN6×9 PE Tube Clamp Sleeve | Rc1/2’’ Internal Thread | DN10X16 Welded Pipe Connector |
| YM20/0.8 | 20 | 0.8 | 48 | |||||
| YM40/0.8 | 40 | 0.8 | 96 | |||||
| YM60/0.6 | 60 | 0.6 | 48 | 95DN | DN15 Rubber-Lined Pipe Coupling | |||
| YM80/0.6 | 80 | 0.6 | 96 | |||||
| YM120/0.5 | 120 | 0.5 | 96 | |||||
| YM180/0.5 | 180 | 0.5 | 144 | |||||
1. High precision and stable liquid dosing.
2. Corrosion-resistant materials for chemical compatibility.
3. Oil-free design ensures clean operation.
4. Adjustable flow rate for flexible applications.
5. Compact and space-saving structure.
6. Quiet and low-vibration performance.
7. Suitable for laboratory, pharmaceutical, and chemical processes.
FAQ
1. Are you manufacturer or trading company.
We are manufacturer.
2. Do you accept customized solution and OEM?
Yes, we provide fully customizable solutions to meet the specific needs of our customers. Whether you need modifications to an existing product or a completely new design, our R&D team works closely with you to deliver tailored solutions.Accept OEM too.
3. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including:
Installation guidance.
Operational training.
Maintenance and troubleshooting.
Quick replacement for defective parts under warranty.
4. Can your products be shipped internationally?
Yes, we have experience exporting our products to customers worldwide. We work with reliable logistics partners to ensure safe and timely delivery to your location.
5. How can I place an order?
You can place an order by:
Contacting us directly: via email, phone, or our official website.
Requesting a quotation: Provide details about your requirements, and we will guide you through the order process.
